Custom Lithium ion Battery Pack

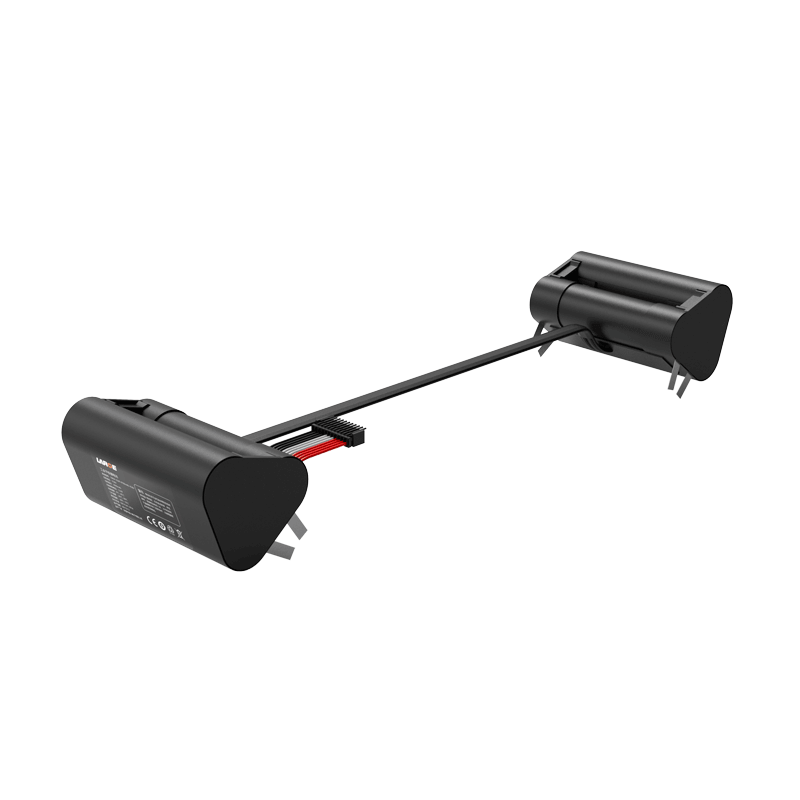

18650 10.8V 6700Ah Samsung Battery for Industrial Tablet

Product Detail

Product number: 01DQ0107-05

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6700mAh-10.8V

Battery dimension:70*43*41mm*2(Max)

Nominal voltage:10.8V

Nominal capacity:6700mAh

Charging voltage: 12.6V

Charging current: ≤3.3A

Discharging current: ≤6.7A

End-off voltage: 7.5V

Internal resistance: ≤100mΩ

Battery weight: 320g

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: ABS+PC housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection,overcurrent protection,ESD protection, etc.

Application field: industrial tablet, portable equipment, handheld equipment



Product features

1.ABS + PC case increases the reliability and immobility of the battery.

2.Connector plug terminal: Gold-plated shrapnel output way increases conductive reliability;

3.Data communications management: TI - SMBus software management chip, SMBus communication data transmission, accurate temperature control precision eliminates the potential safety risks.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
