Custom Lithium ion Battery Pack

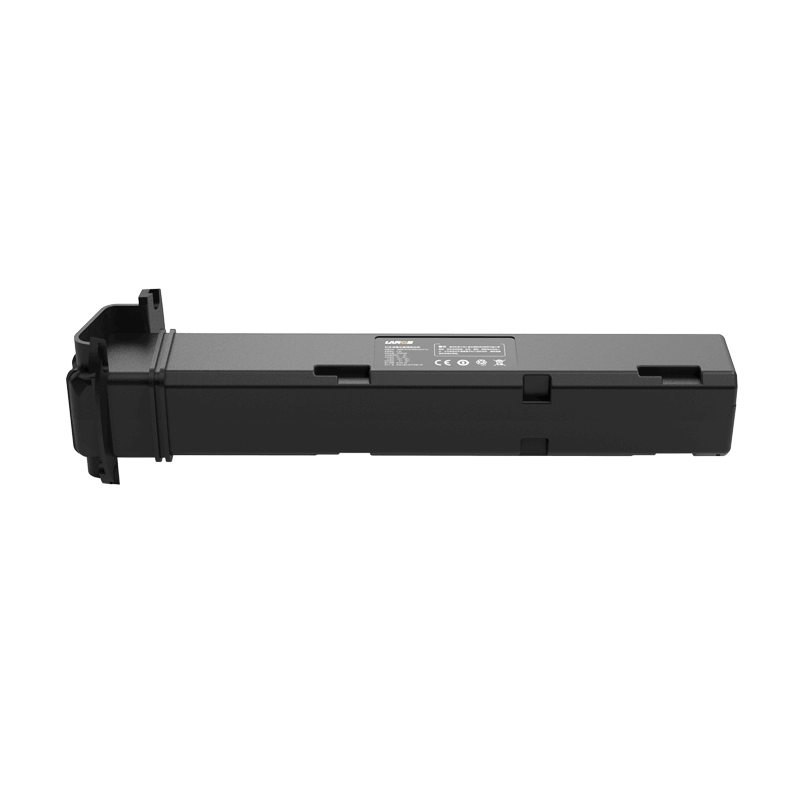

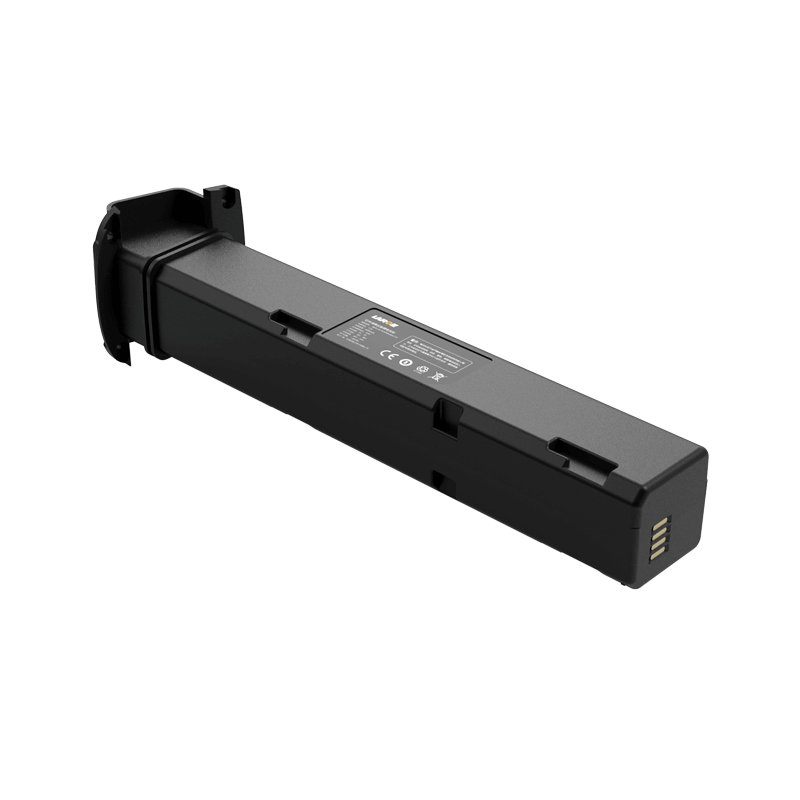

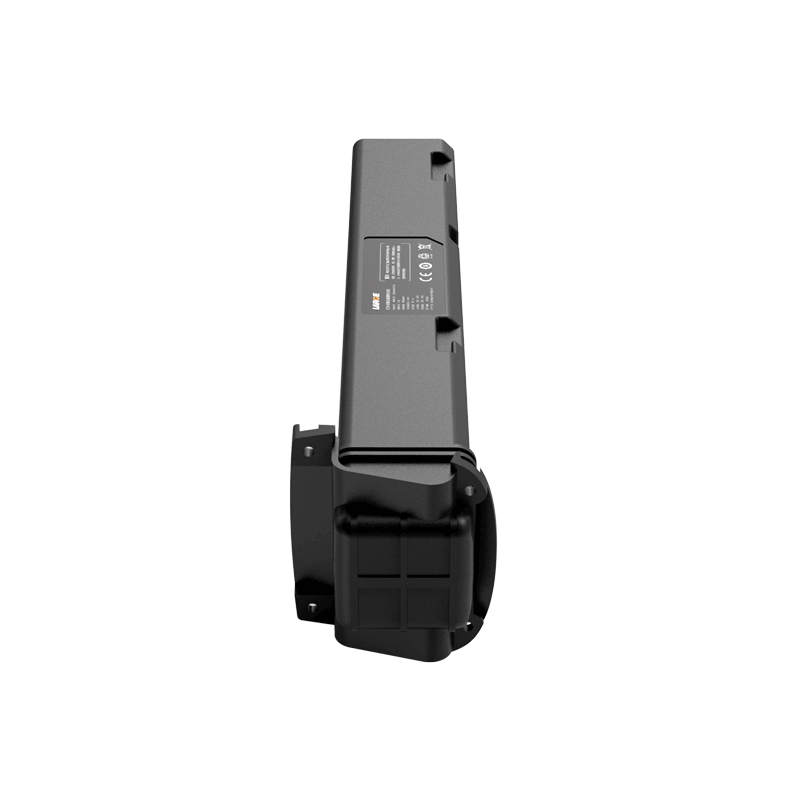

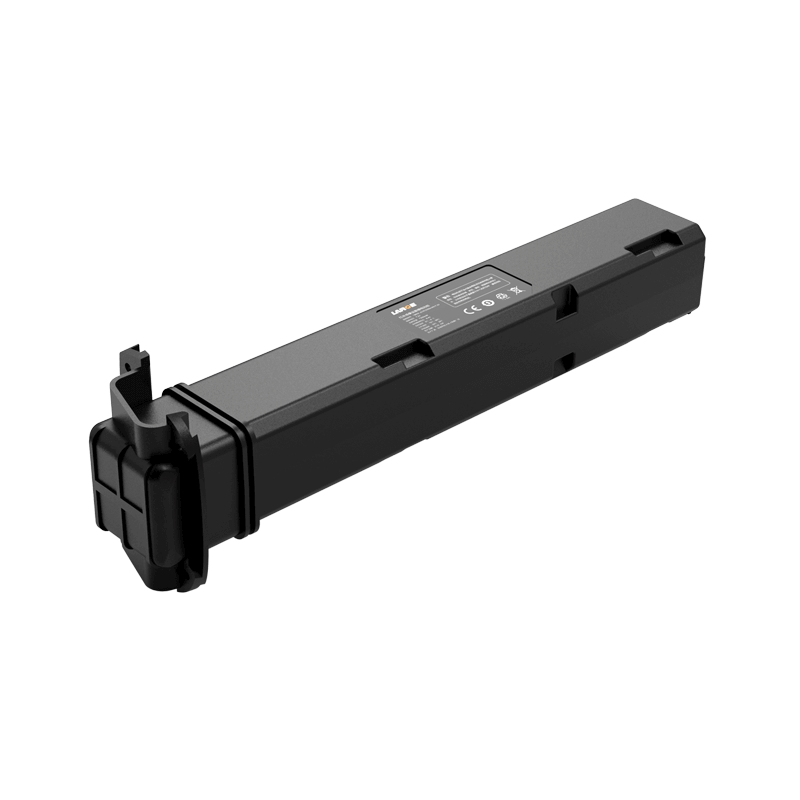

18650 7.2V 3350mAh Samsung Battery for Infrared Imaging Device

Product Detail

Product number : 01DQ0030-07

Cell model: 18650/3350mAh/3.6V

Battery specification: 18650-2S1P/3350mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 3350mAh

Charging current: ≤3.35A

Discharge current: 3.35A

Instant discharge current: 6A

Discharge cut-off voltage: 6.0V

Finished product internal resistance: ≤180mΩ

Battery weight: 130g

Product size: 21.2*21.6*142.3mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 20℃

Battery case: ABS+PC

Intelligent lithium battery protection: power calculation, short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application: Infrared imaging equipment

*
*
*
