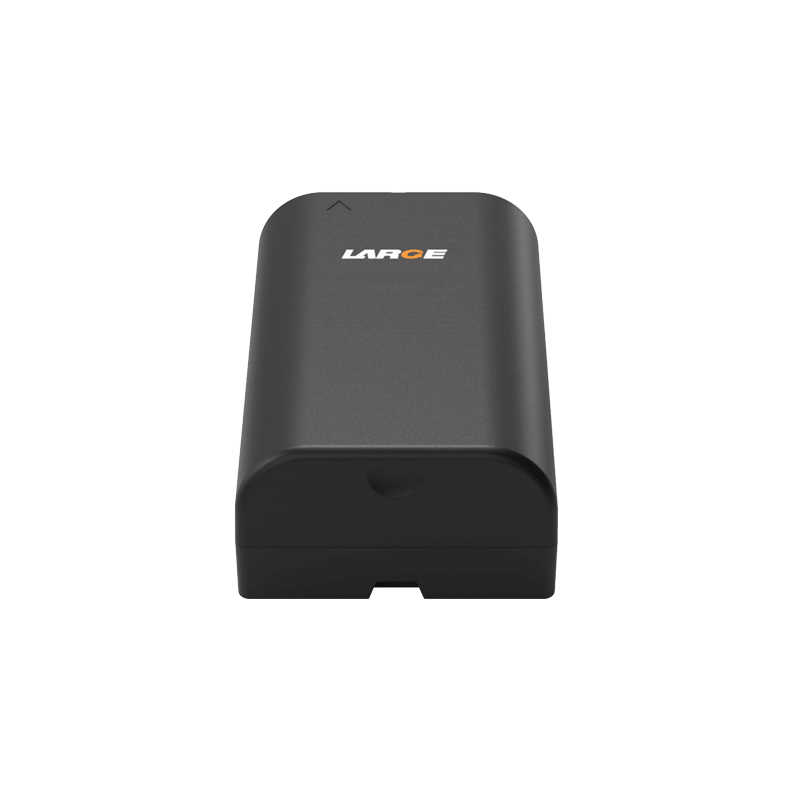

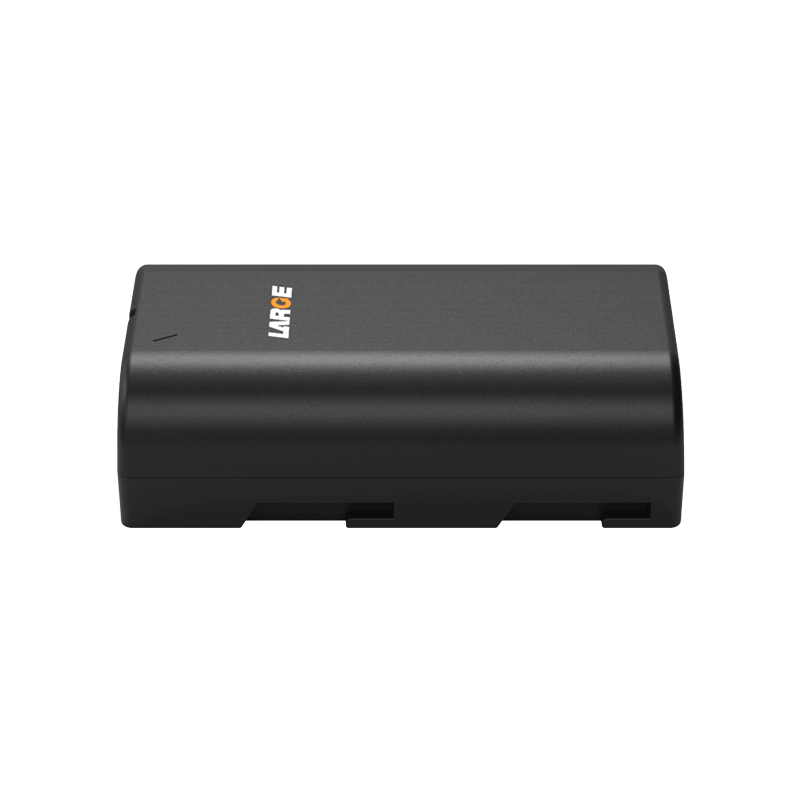

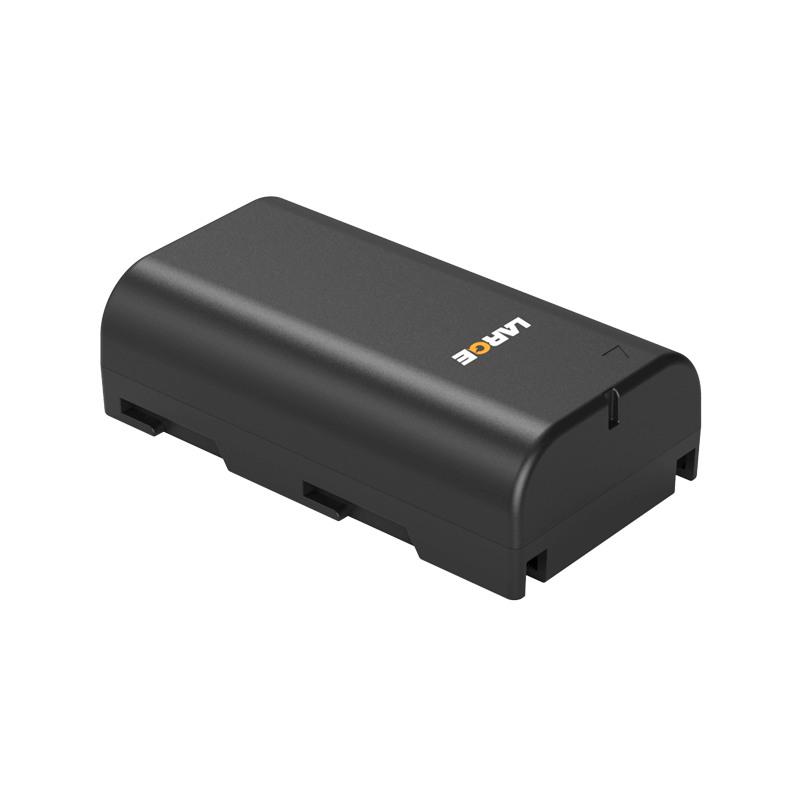

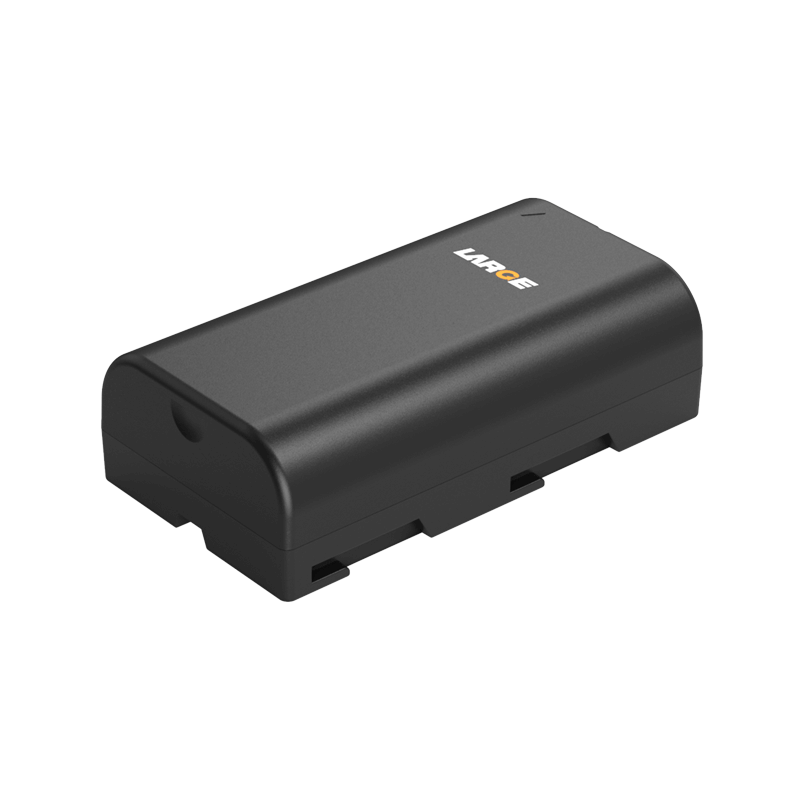

18650 7.2V 3350mAh Lithium-ion Battery for Test Instrument

Product Detail

Project number: 05BQ1412-08

Cell model: 18650/3350mah /3.6V

Battery specification: 18650/2S1P/3350mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 3350mAh

Charging current: ≤2.0A

Discharge current: 4.5A

Instantaneous discharge current: 6A

Discharge cut-off voltage: 5.0V

Product internal resistance: ≤200mΩ

Battery weight: 130G

Product size: 20.8*38.7*70.45mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ° C to 20 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: surveying and mapping industry

*
*
*
