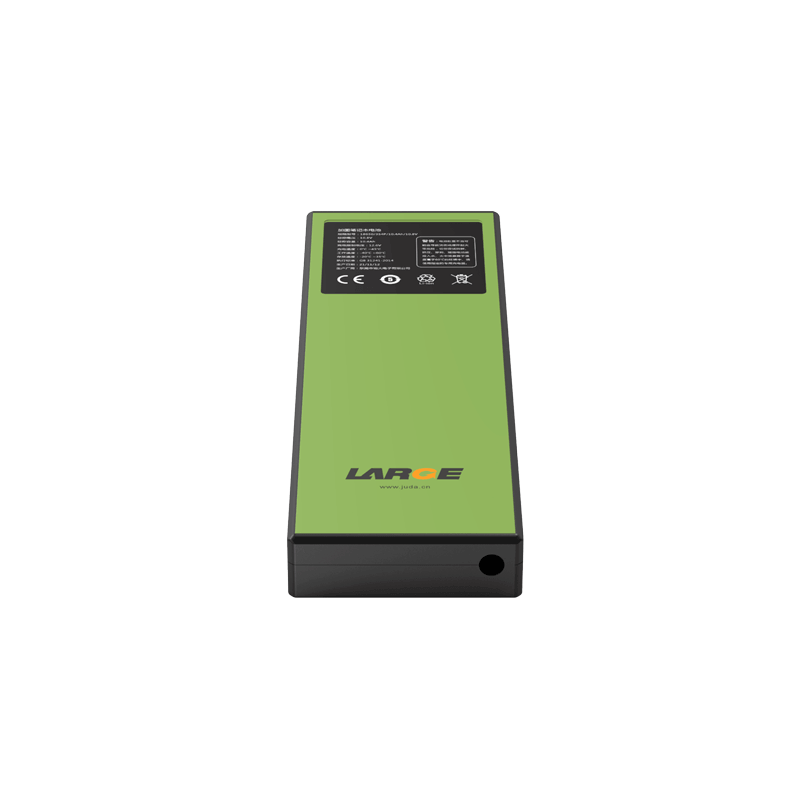

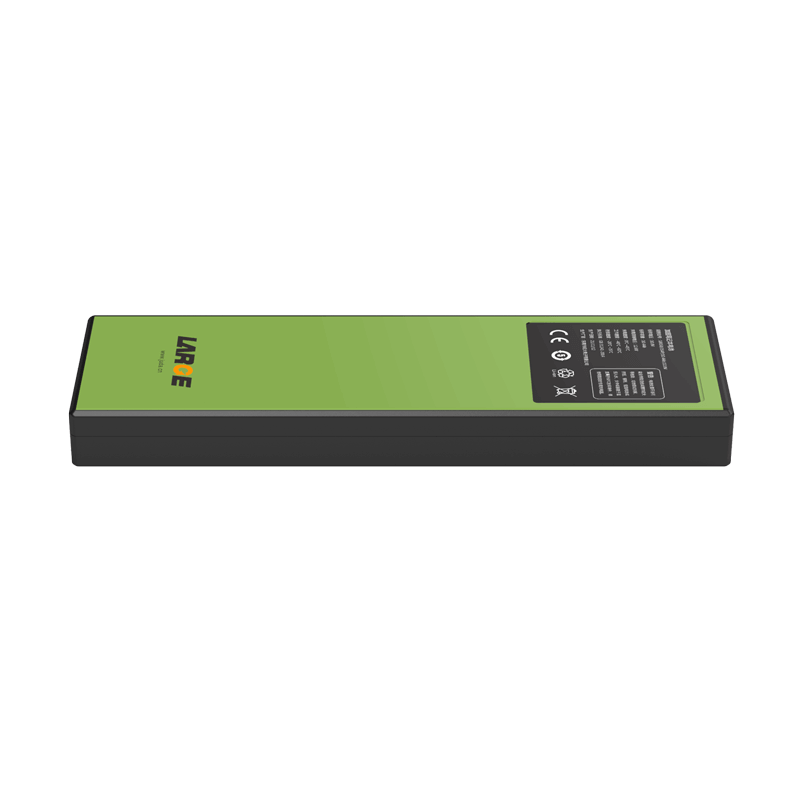

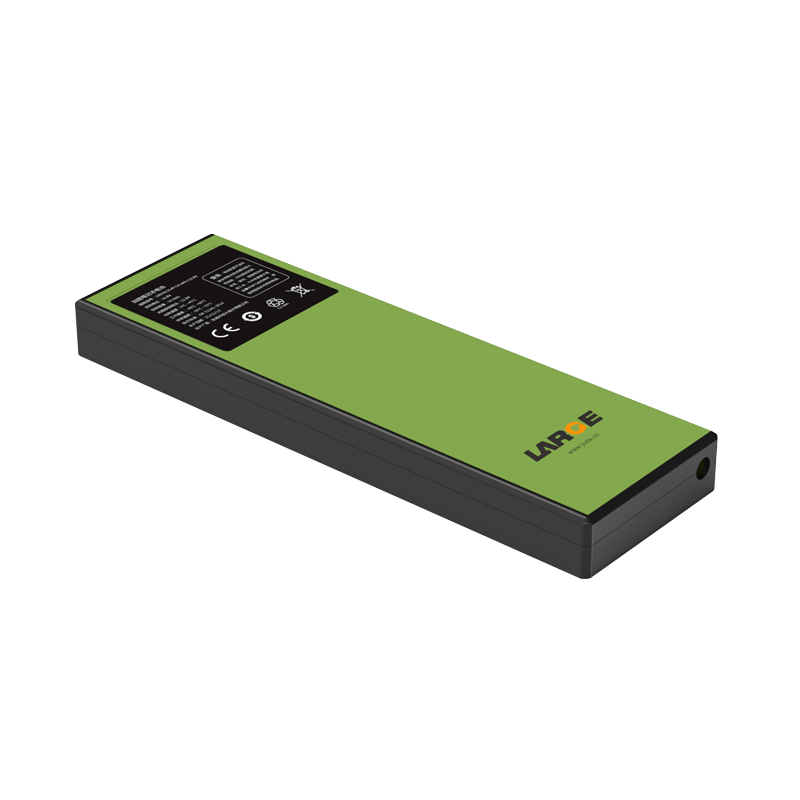

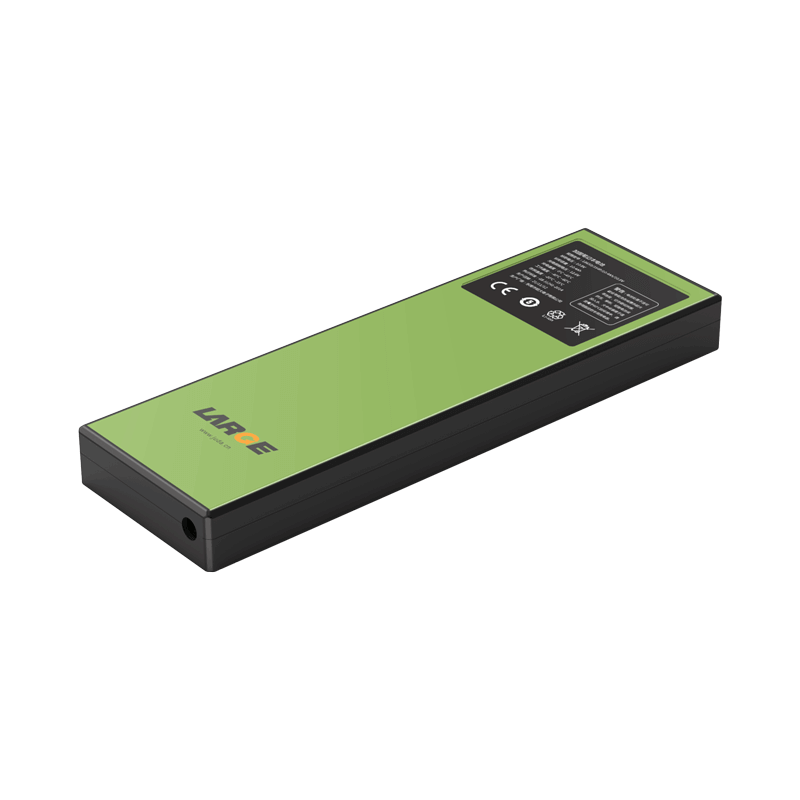

18650 10.4Ah 10.8V Low Temperature Battery for Rugged Laptop

Product Detail

Product number: 08DQ0043-01

Cell model: 18650/2600mah /3.6V

Specification: 18650/3S4P/ 10.4AH /10.8V

Product size: 233*74*22.8mm

Nominal voltage: 10.8V

Nominal capacity: 10.4Ah

Charging voltage: 12.6V

Charging current: ≤5.0A

Discharge current: ≤6.0A

Discharge cut-off voltage: 7.5V

Product internal resistance: ≤200mΩ

Battery weight: 700G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: engineering plastic ABS+PC

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Portable computer, tablet, laptop, portable devices


Product Features

1.ABS+PC shell aluminum alloy shell increases reliability and firmness to the battery.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Low temperature -40℃ discharge lithium battery

4.Data communication management: Use Ti-Smbus software management chip, precise transmit data and accurate temperature control to minimize security risks.

5.Battery management: Adopt imported TI protection chip with good stability, high precision monitoring, precise control, ESD protection and temperature protection to eliminate security risks to the greatest extent.

6.The battery pack is safe and has good low-temperature discharge performance, supporting -40℃ discharge rate and discharging power of over 70%.

7.The battery pack is safe, has good discharge performance and long cycle life.

8.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
