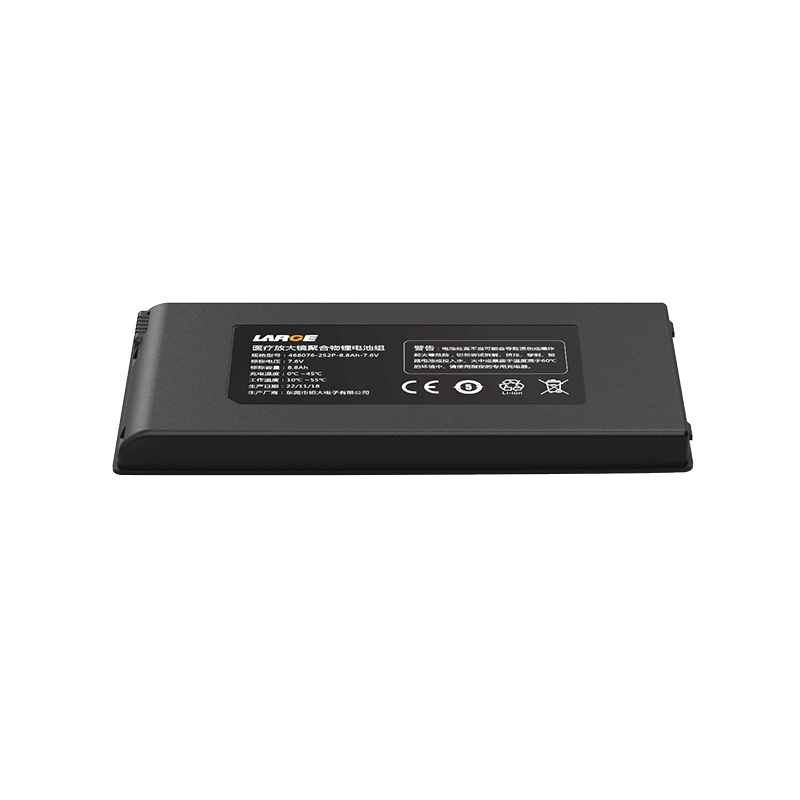

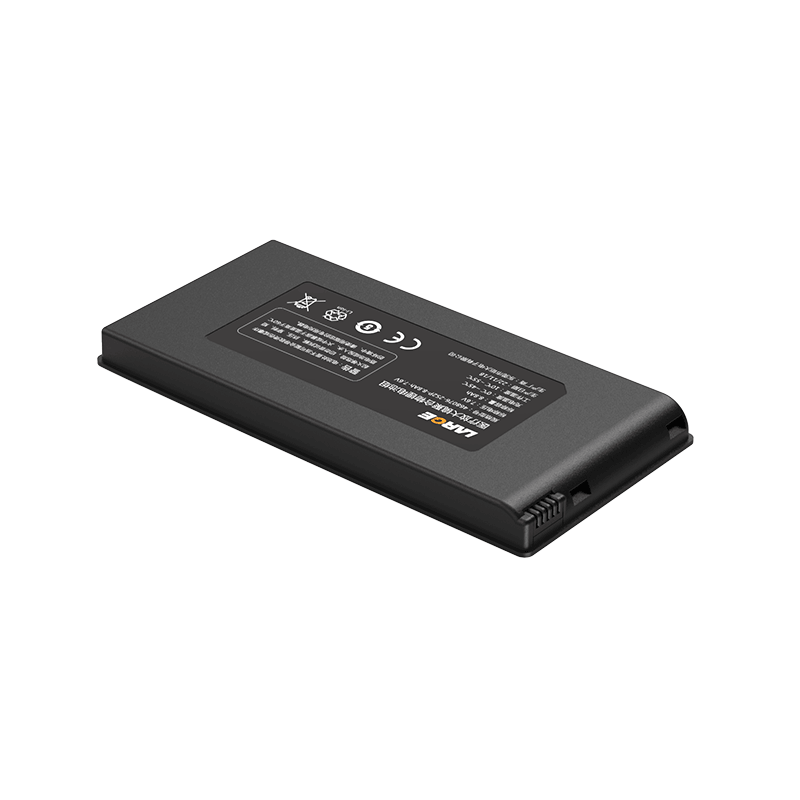

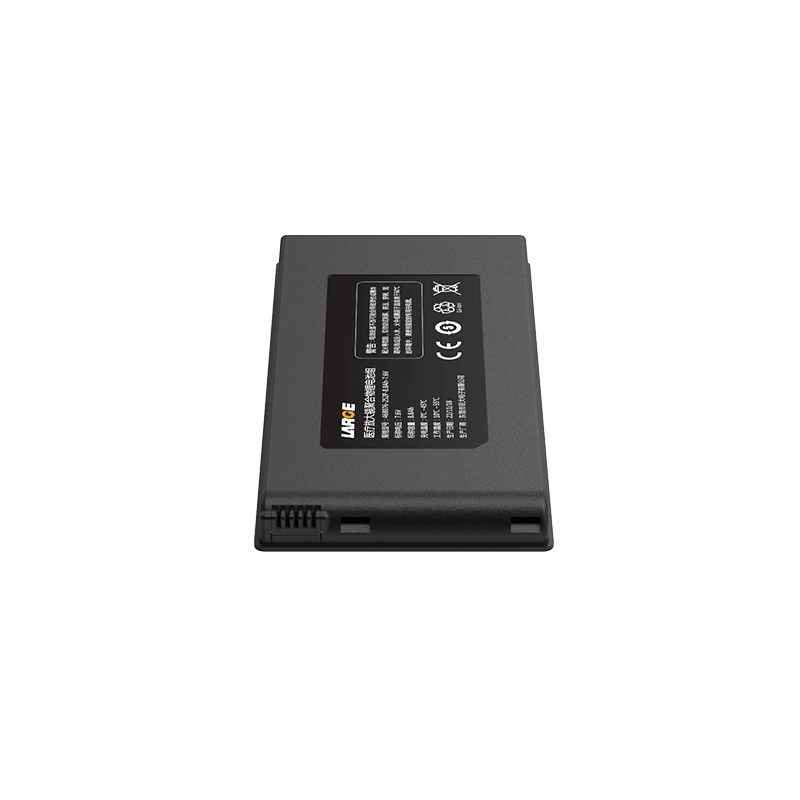

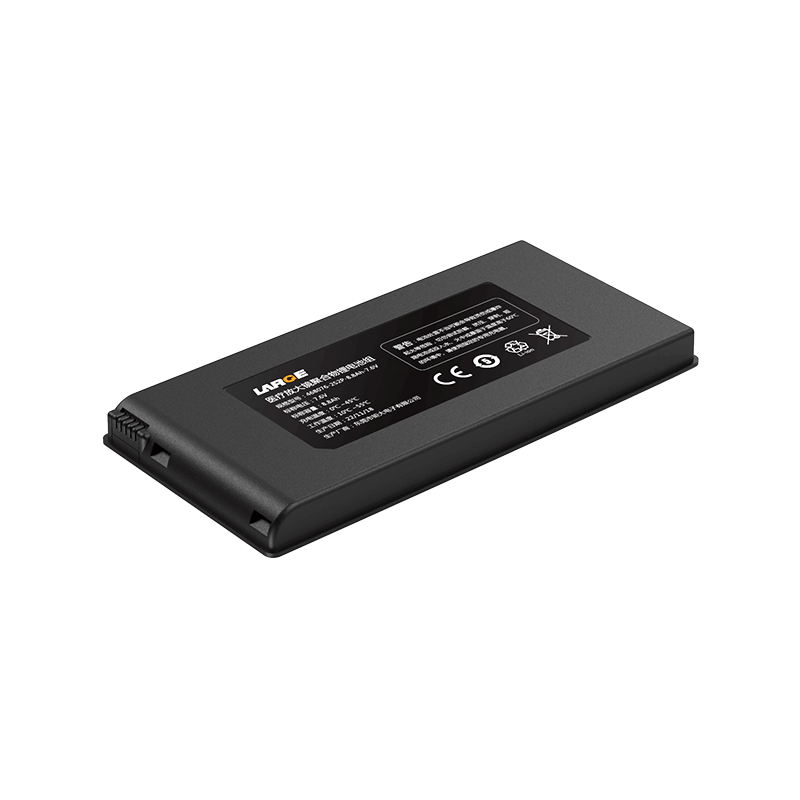

468076 7.6V 8.8Ah Lithium Polymer Battery Pack for Medical-assisted Electronic Magnifying Glass

Product number: 41DZ003-06-01

Battery model: 468076PLV-4.35V-4400mAh

Battery specification: 468076-2S2P-8.8Ah-7.6V

Nominal voltage: 7.6V

Nominal capacity: 8.8Ah

Charging voltage: 8.7V

Charging current: ≤4.5A

Discharge current: 4A

Instantaneous discharge current: 4A

Discharge cut-off voltage: 6V

Finished internal resistance: ≤150mΩ

Battery weight: 300g

Product size: 175.66×86.66×14.15mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 55℃

Storage temperature: -20 ~ 45℃

Battery case: Industrial grade

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Applications: outdoor monitoring, medical equipment

Product Features

1.Maximum sustainable 4A discharge.

2.It has passed CB and PSE certification, using imported protection chip, imported MOS, including 10KNTC, which can show temperature changes in real time, to minimize security risks.

3.Self-developed ultra high capacity polymer cell

4.The battery pack has a long cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
