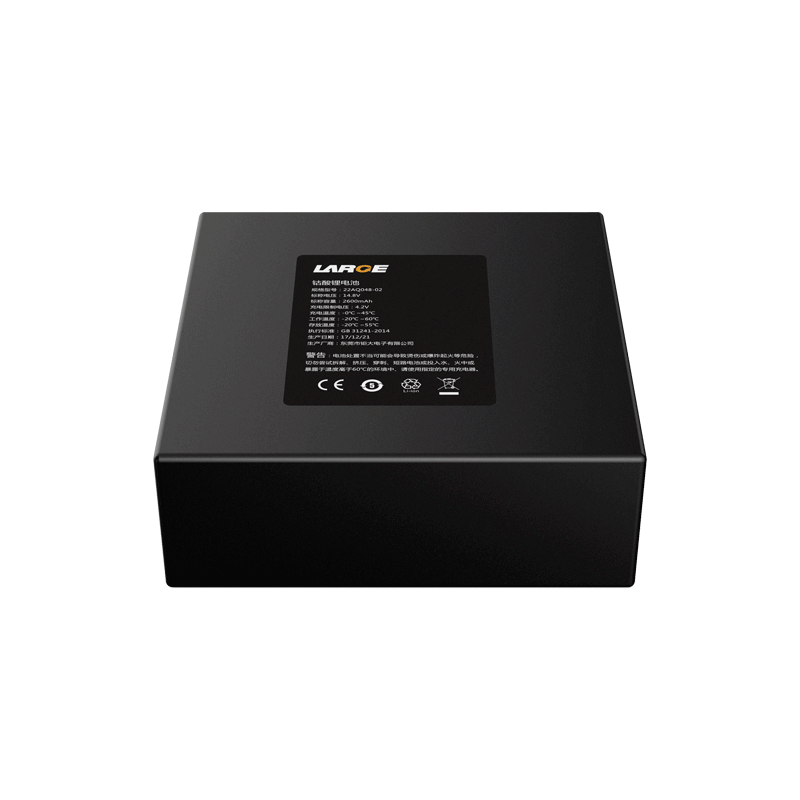

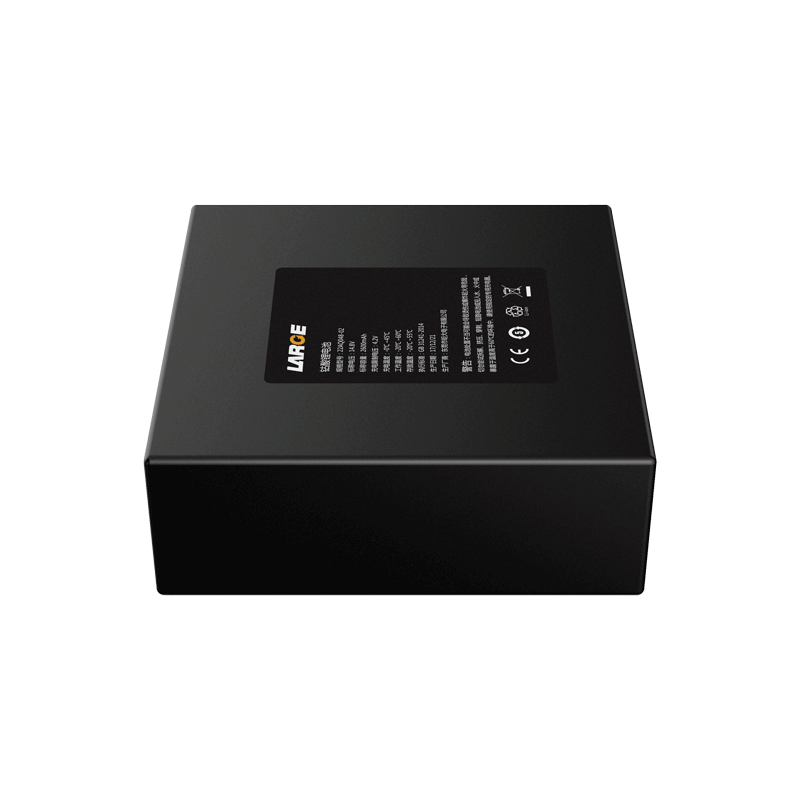

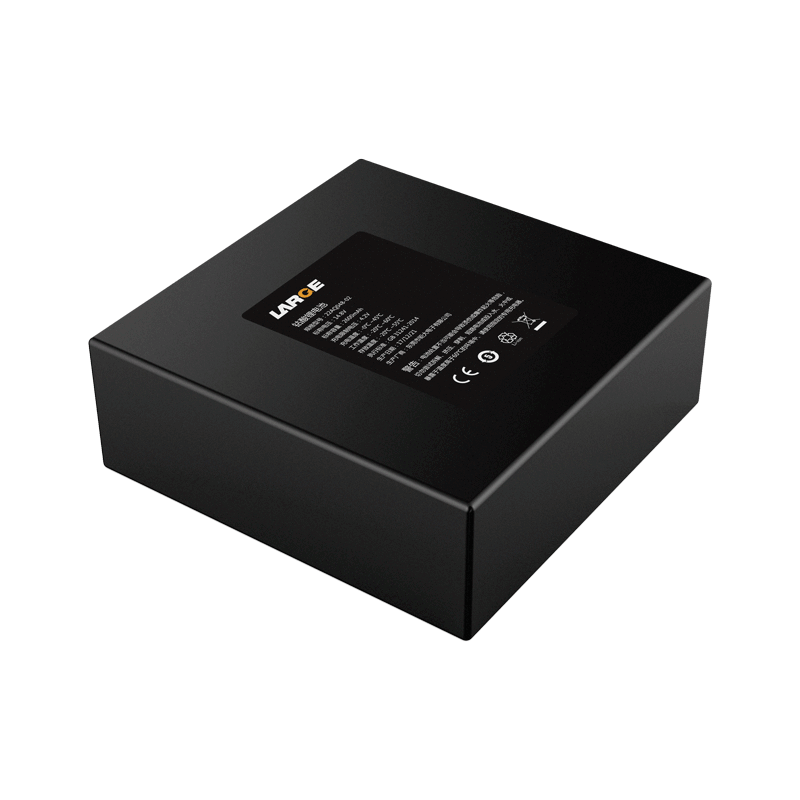

Custom Lithium ion Battery Pack

18650 14.8V 2600mAh Samsung Battery NCM Battery

Product Detail

Project number: 22AQ048-02

Combination mode: ICR18650-4S1P

Nominal voltage: 14.8V

Output voltage range: 12~ 16.8V

Nominal capacity: 2600mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 2C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 24*67*76mm

Finished product internal resistance: 350 mΩ or less

Lead type: JST-ELP-2 socket, round hole connected to red line, square hole connected to black line, UL1007/18# line length: 80mm

Protective board parameters :(each parameter can be set according to the customer's product)

Overcharge protection voltage / 4.25±0.025V per series

Overdischarge protection voltage is 3.0±0.08V

Over current value: 6.5~12A

*
*
*
