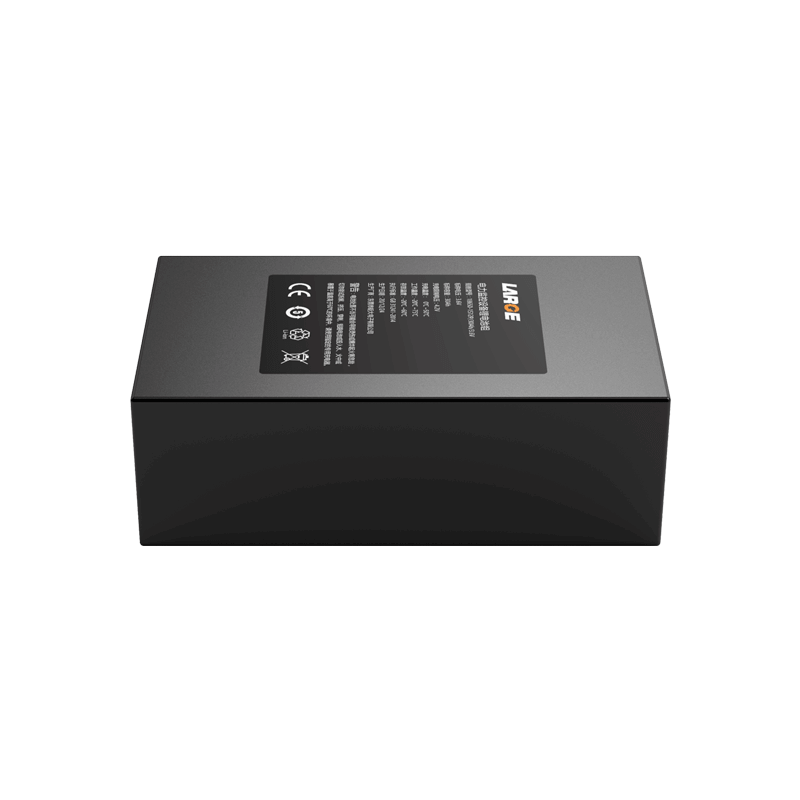

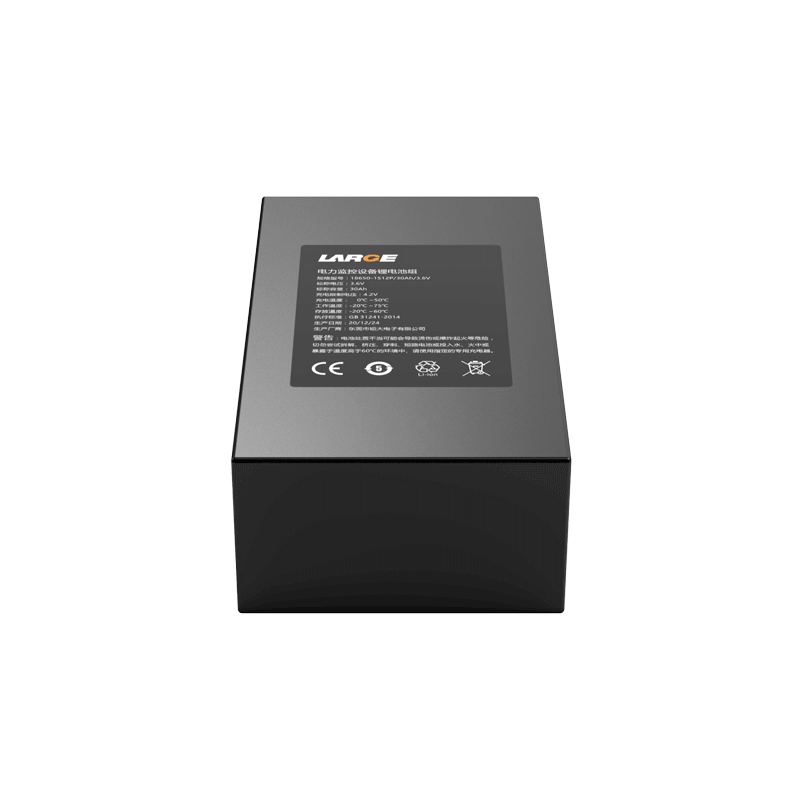

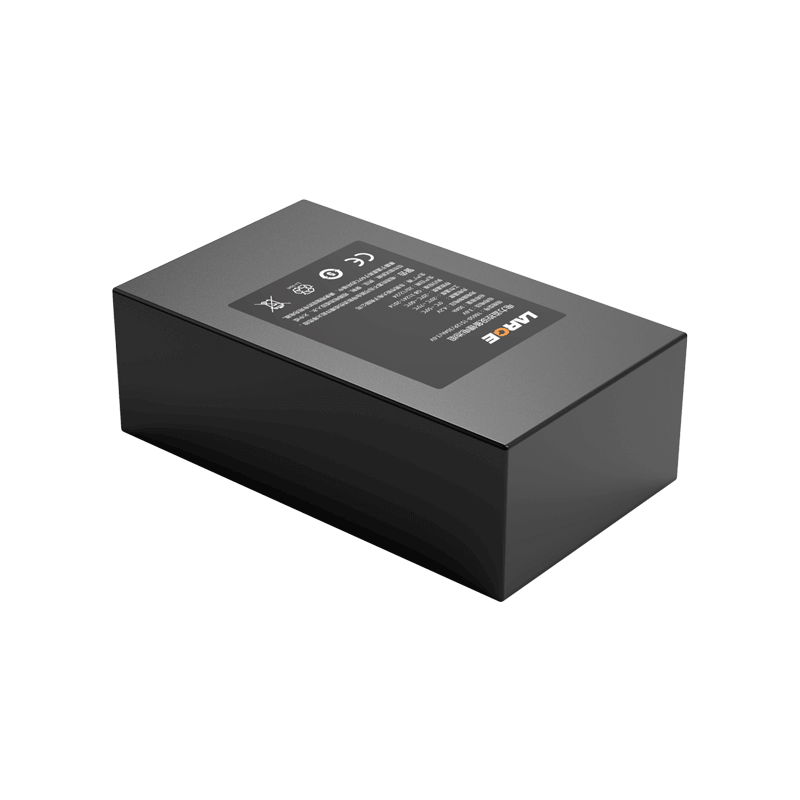

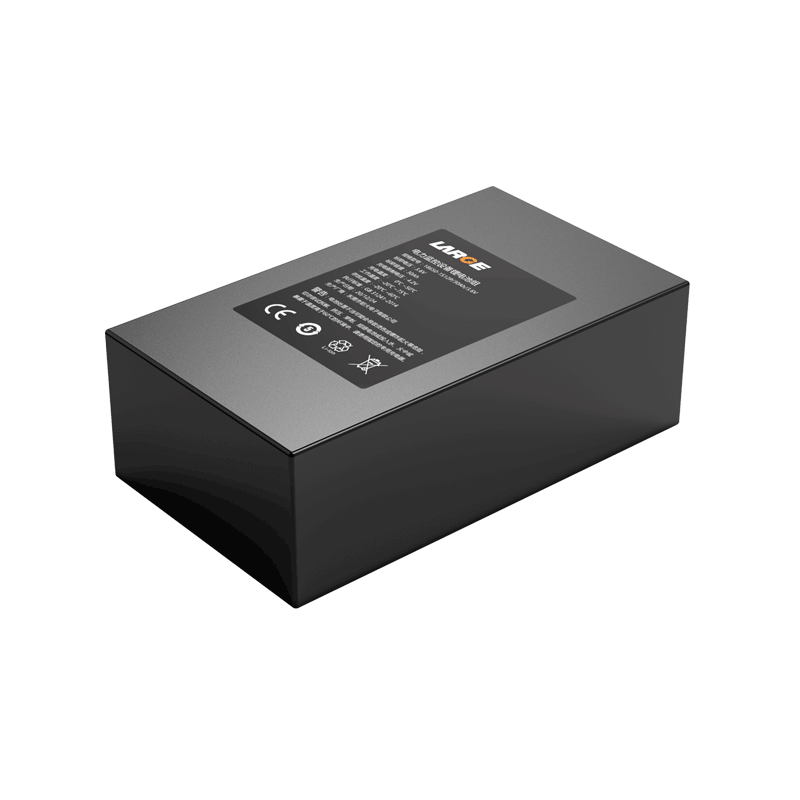

18650 3.6V 30Ah Samsung Battery for Power Monitoring Equipment
Product Number:
01DQ0132-01
Nominal voltage:
3.6V
Nominal capacity:
30Ah
Battery Configuration:
18650-1S12P
Dimension:
120 × 70 × 40 mm
Application:
power monitoring equipment and outdoor power towers
SMBUS Communication Protocol, Wide Temperature Range, Long Cycle Life
Product Overview
This battery is specially designed for power monitoring equipment and outdoor power towers, suitable for solar energy storage and low-current continuous power supply applications. Featuring stable output, long cycle life, and wide-temperature performance, it ensures reliable long-term operation.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0132-01 |
| Cell Model | 18650/2500mAh/3.6V |
| Battery Configuration | 18650-1S12P |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 30Ah |
| Rated Energy | 108Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 3V |
| Standard Charging Current | ≤4A |
| Standard Discharge Current | ≤4A |
| Max Continuous Discharge Current | ≤4A |
| Internal Resistance | ≤150mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～50℃ |
| Discharge Temperature | -20～75℃ |
| Storage Temperature | -20～+60℃ (<1 month); -20～45℃ (<3 months); -20～+23℃ (<12 months) |
| Dimensions | 120 × 70 × 40 mm |
| Weight | 650 g |
| Battery Case | PVC |
| Communication Protocol | SMBUS |
| Protection System | Short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
