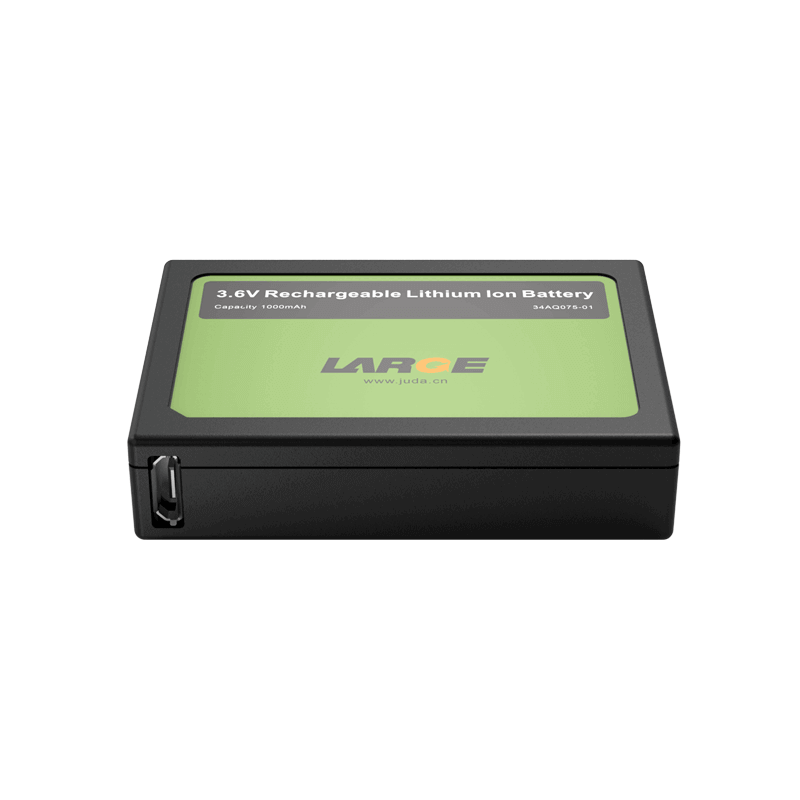

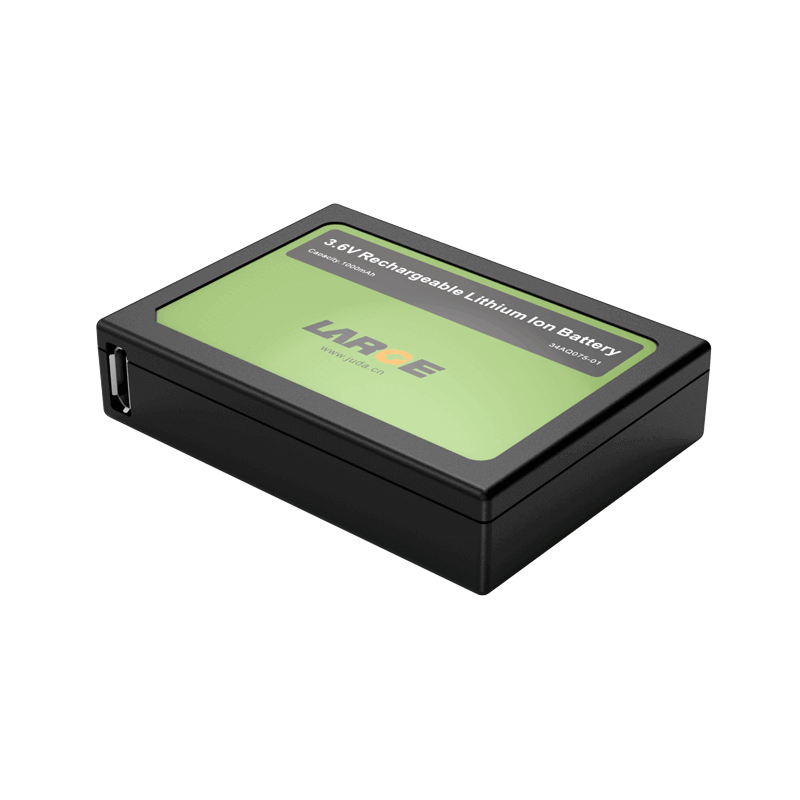

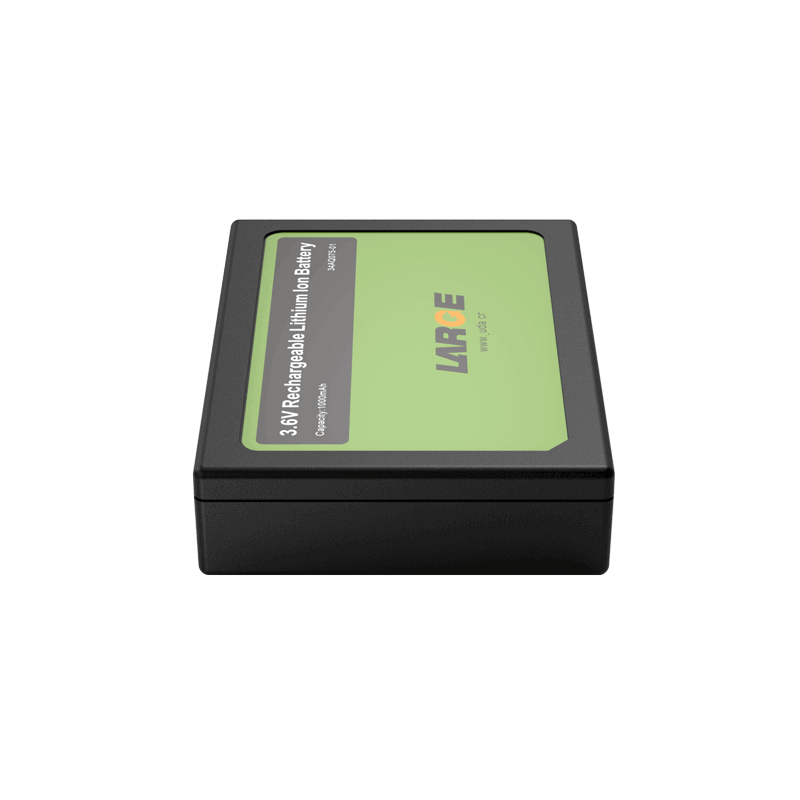

Custom Lithium ion Battery Pack

3.6V 1000mAh Lithium Polymer Battery Exib iiB T4

Product Detail

Product number: 34AQ075-01

Cell model:903554/1000mAh/3.6V

Battery specification: 903554-1S1P/1000mAh/3.6V

Nominal voltage:3.6V

Nominal capacity:1000mAh

Charging voltage: 4.2V

Charging current: 200mA

Discharging current: 200mA

Instant discharge current:500mA

End-off voltage:3.0V

Internal resistance: ≤200mΩ

Battery weight: 40g

Product dimension:52*38*12mm

Charging temperature:0~45℃

Discharging temperature: -20~+55℃

Storage temperature: -20~+45℃

Battery case: plastic

Lithium ion battery protection: Explosion-proof Exib iiB T4, overcharging protection, over-discharging protection, discharge overcurrent protection, discharge short circuit protection, etc.



Product features

1. Explosion-proof Exib iiB T4:The batteries can be used in extreme environments, such as gas stations and other high-risk locations.

2. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
