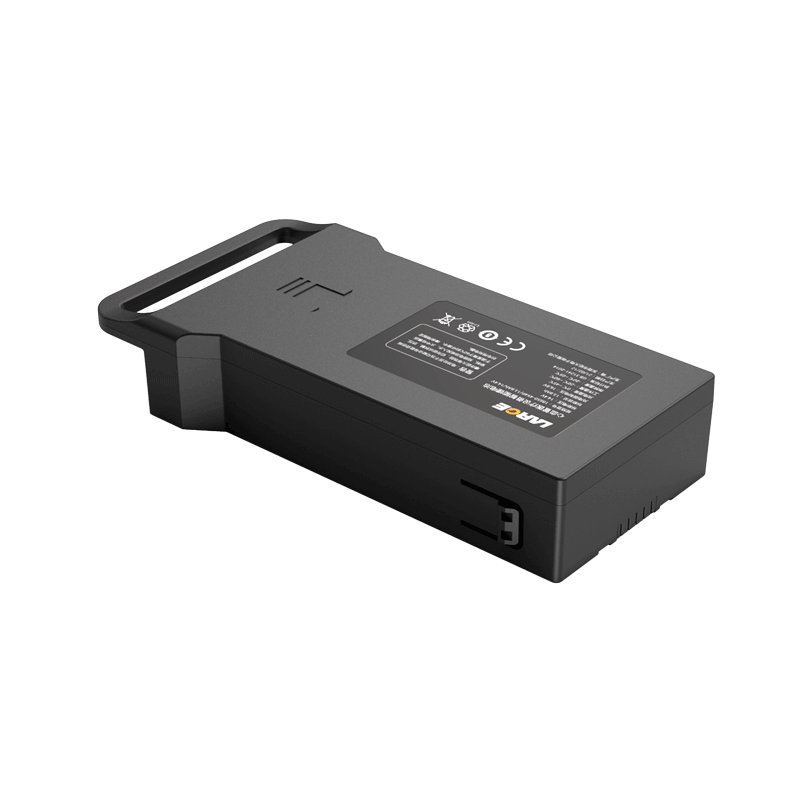

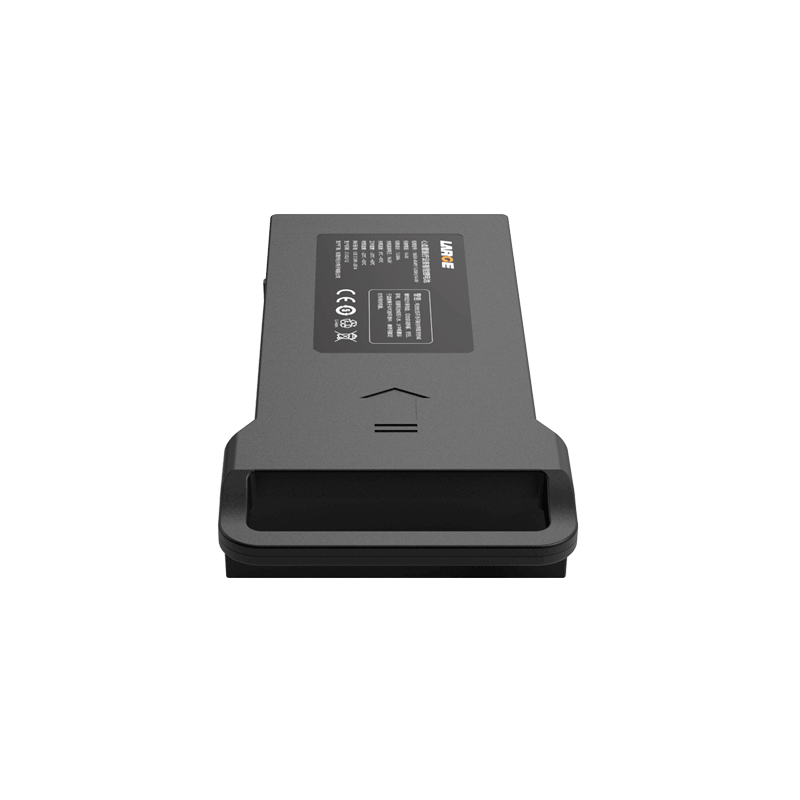

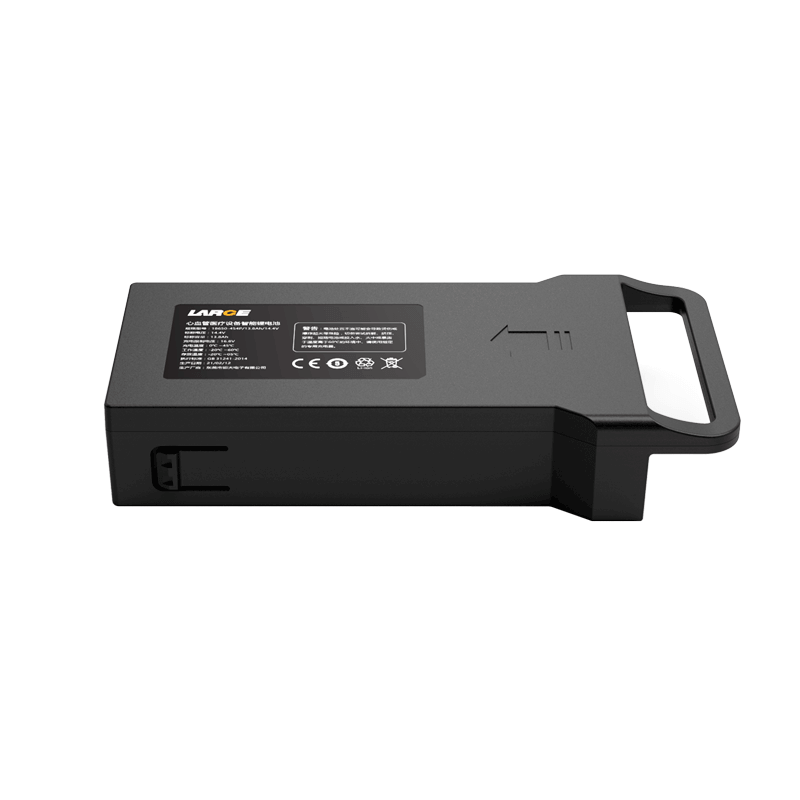

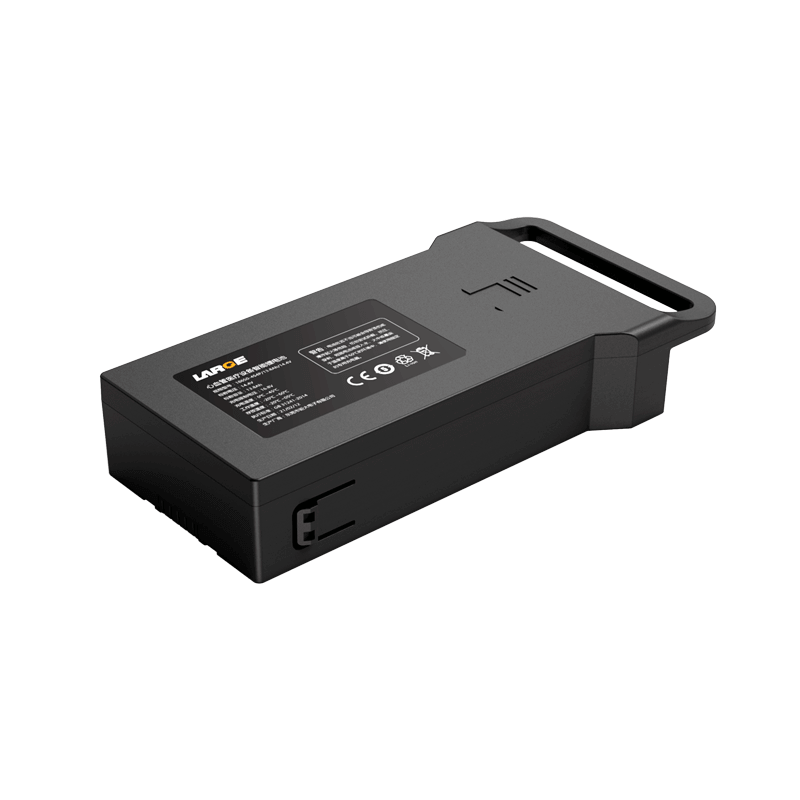

18650 14.4V 13.8Ah Panasonic Battery for Cardiovascular Medical Device

Product number: 05DQ0051-01

Cell model: 18650/3450mAh/3.6V

Battery specification: 18650-4S4P/13.8Ah/14.4V

Product dimension: 237*120*45mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 13.8Ah

Charging voltage: 16.8V

Charging current: ≤4A

Discharge current: ≤4A

Discharge cut-off voltage: 10V

Finished product internal resistance: ≤180mΩ

Battery weight: 1000g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)

Battery Package: Plastic case

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Cardiovascular medical equipment
