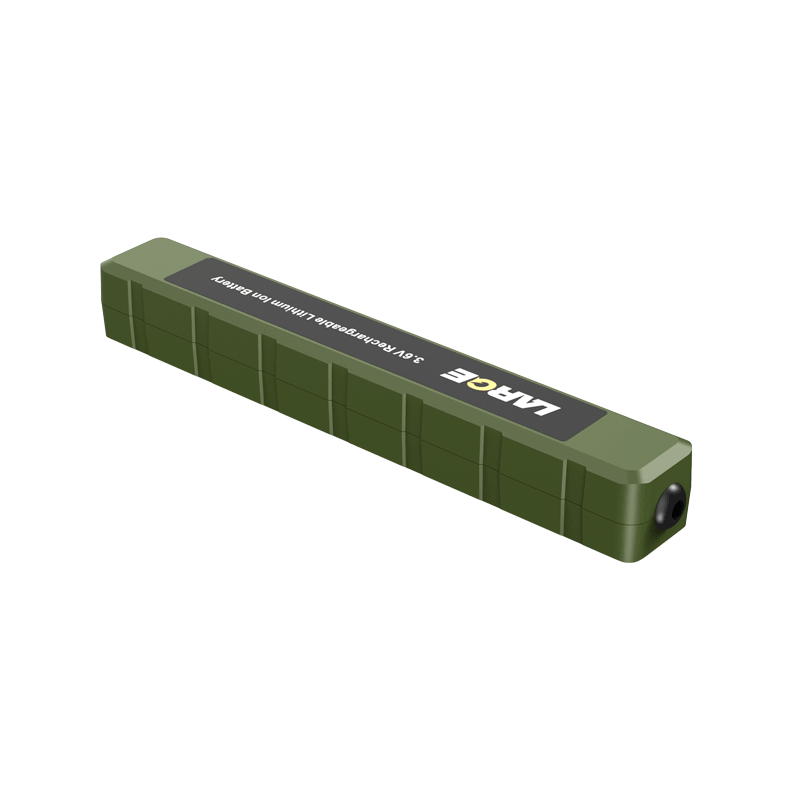

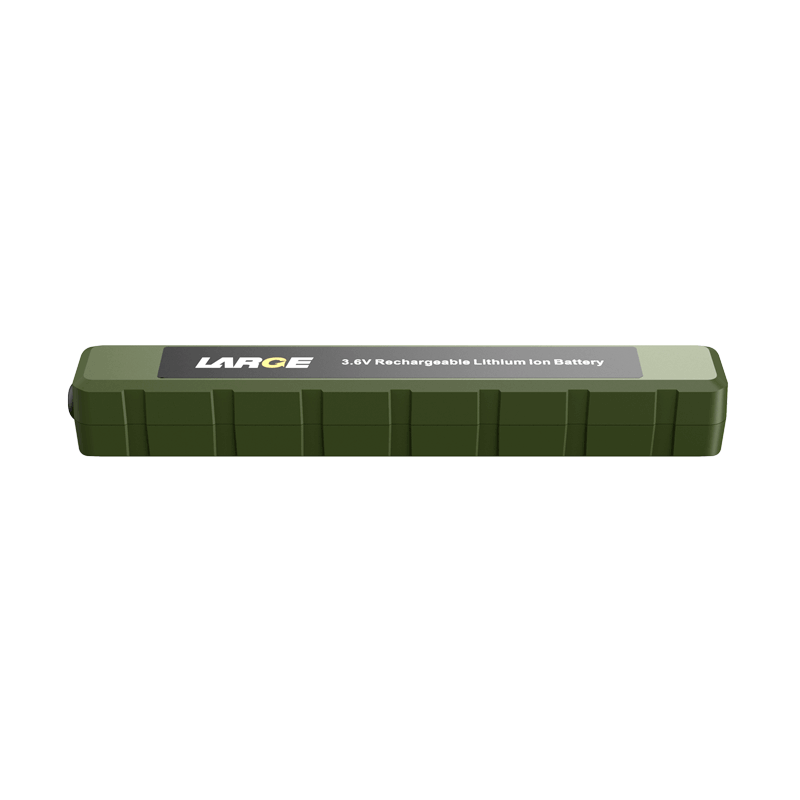

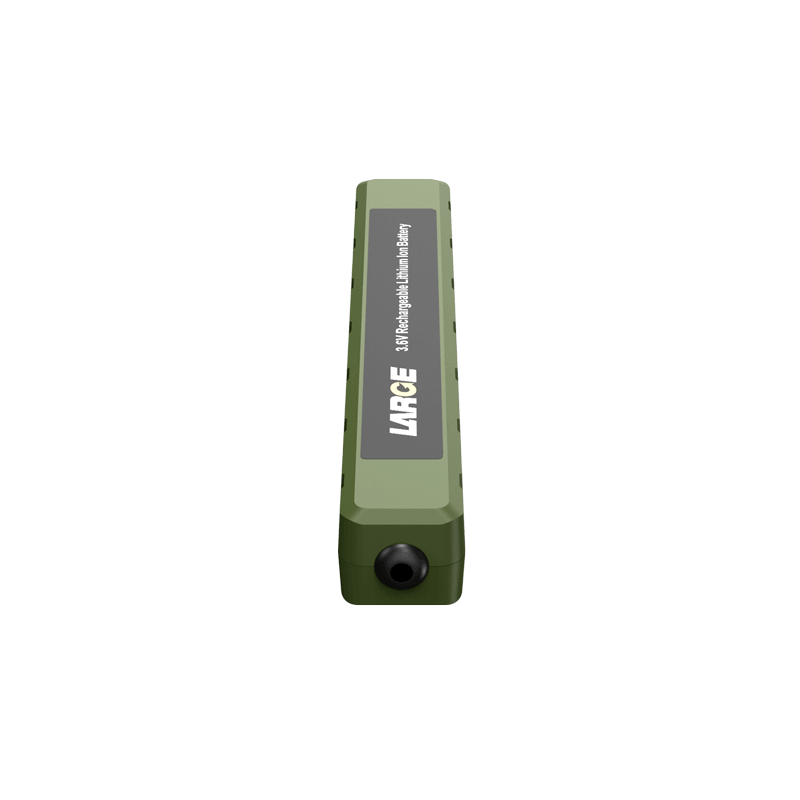

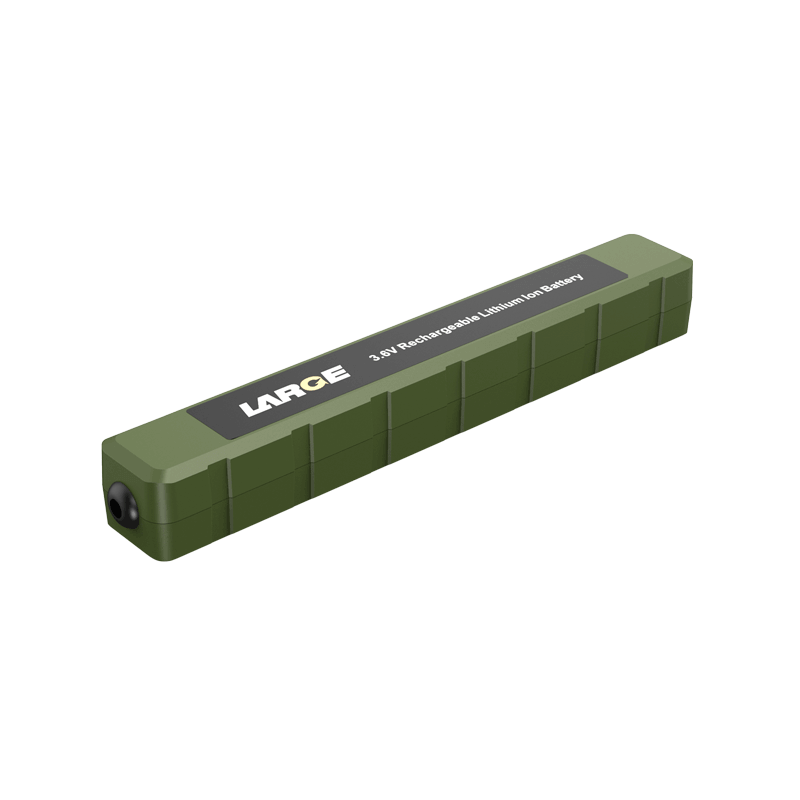

18650 3.6V 5200mAh Low Temperature Battery for Special Device

Product Detail

Product number: 35AQ614-01

Cell model: 18650/2600mAh/3.6V

Battery specification: 18650-1S2P/5200mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 5200mAh

Charging voltage: 4.2V

Charging current: 1000mA

Discharge current: 1000mA

Instant discharge current: 5000mA

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤180mΩ

Battery weight: 120g

Product dimension: 150*23*20.6mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ +55℃

Storage temperature: -20 ~ +45℃

Battery case: plastic

Lithium battery protection: conventional protection + intelligent protection BQ27542


Product features

1.Data communication management: Use TI software management chip, accurate data transmission, precise temperature control to eliminate security risks;

2.The battery pack has good safety, nice performance and high standard connector;

3.It can accurately monitor the battery power.

*
*
*
