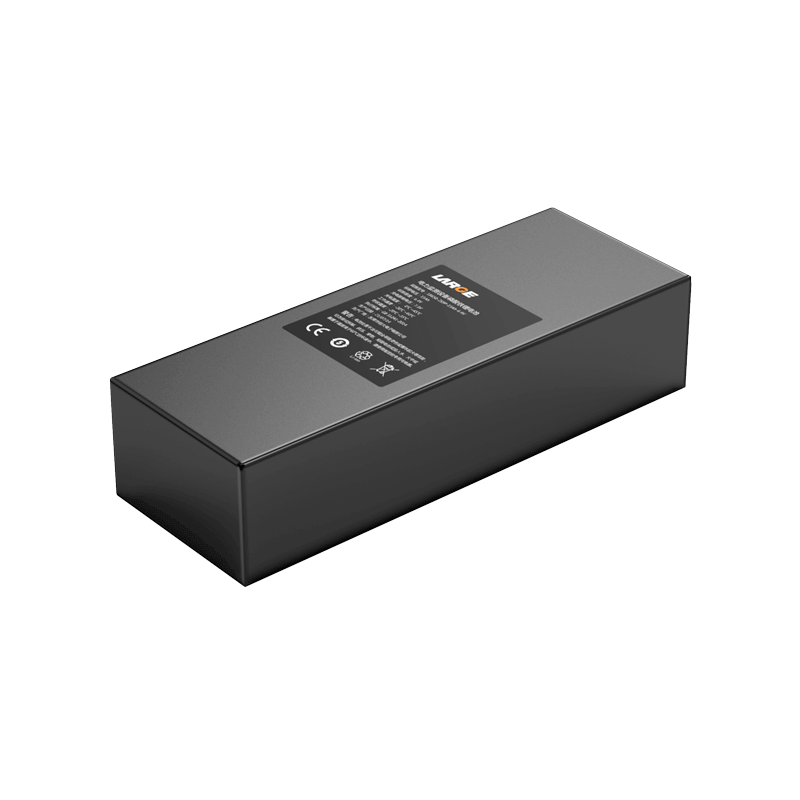

18650 6.4V 15Ah LiFePO4 Battery for Power Monitoring

Product Detail

Product number: 34AQ018-09

Cell model: 18650-1500MAH-3.2V

Battery specification: 18650-2S9P-15AH-6.4V

Product size: 190*70*50mm (Max)

Nominal voltage: 6.4V

Nominal capacity: 15Ah

Charging voltage: 7.3V

Charging current: ≤2.0A

Discharge current: ≤2.0A

Discharge cut-off voltage: 5.0V

Product internal resistance: ≤280mΩ

Battery weight: 1000G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: blue PVC heat shrinkable film package

Output mode: JST plug

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Power testing equipment, testing equipment


Product features

1.Static battery management: Adopts imported protection chip: features high stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions. Eliminate security risks to the greatest extent

2.Bill of Fare: The battery comes with ds2781-HDQ communication protocol, allowing users to read battery charge information via HDQ

3.Sino - buy battery pack is safe, has good discharge performance and long cycle life.

4.The battery has long cycle, which is in line with low carbon, energy saving, environmental protection values.

*
*
*
