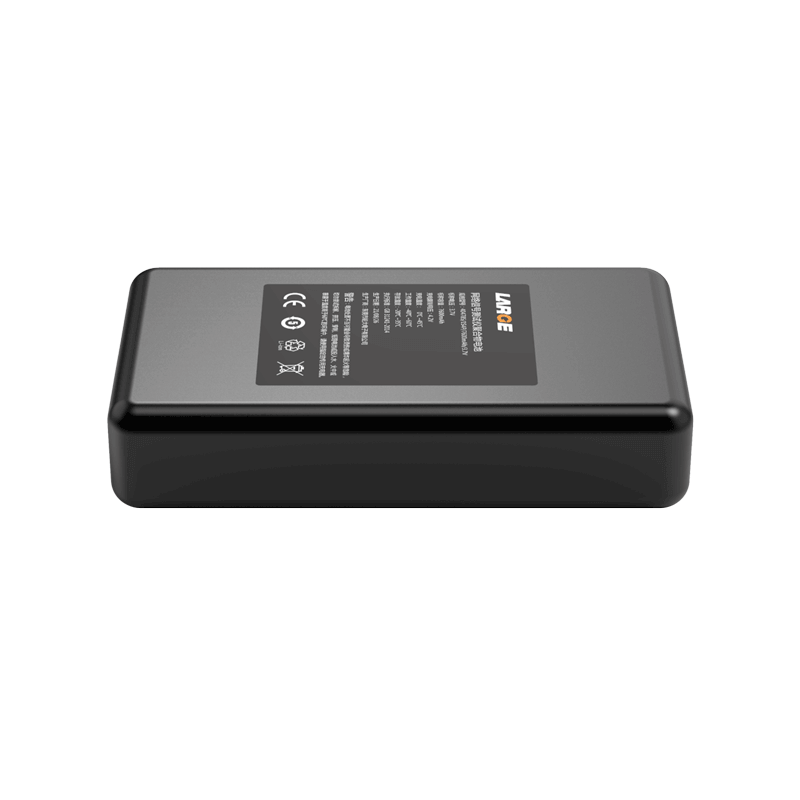

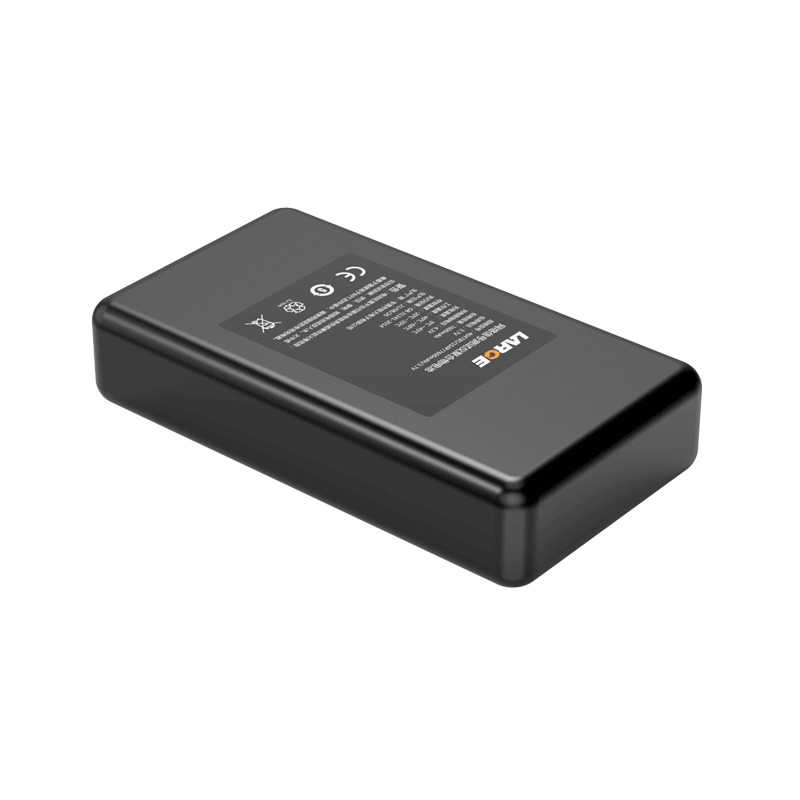

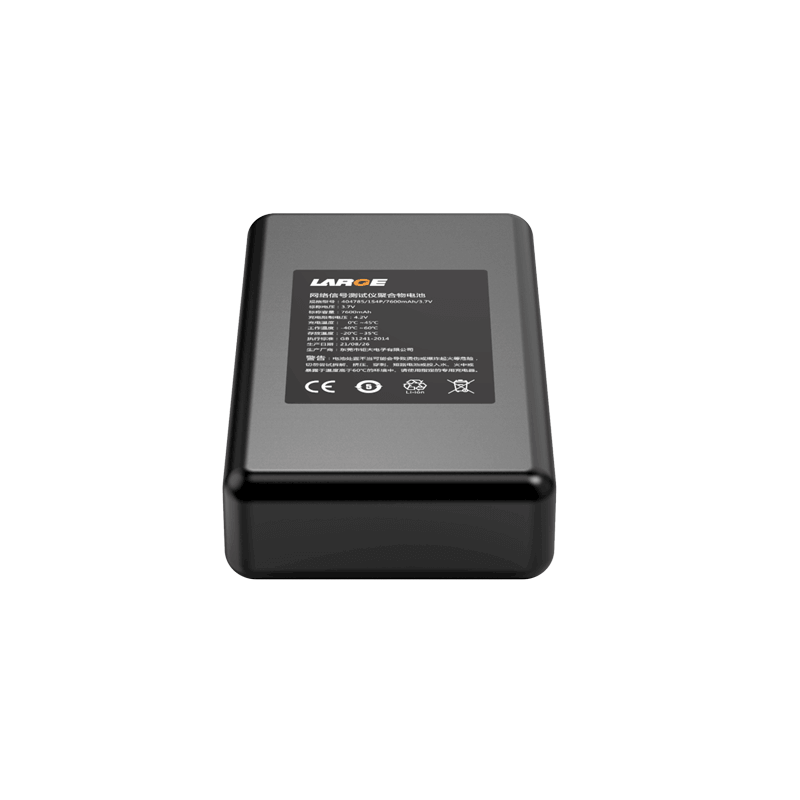

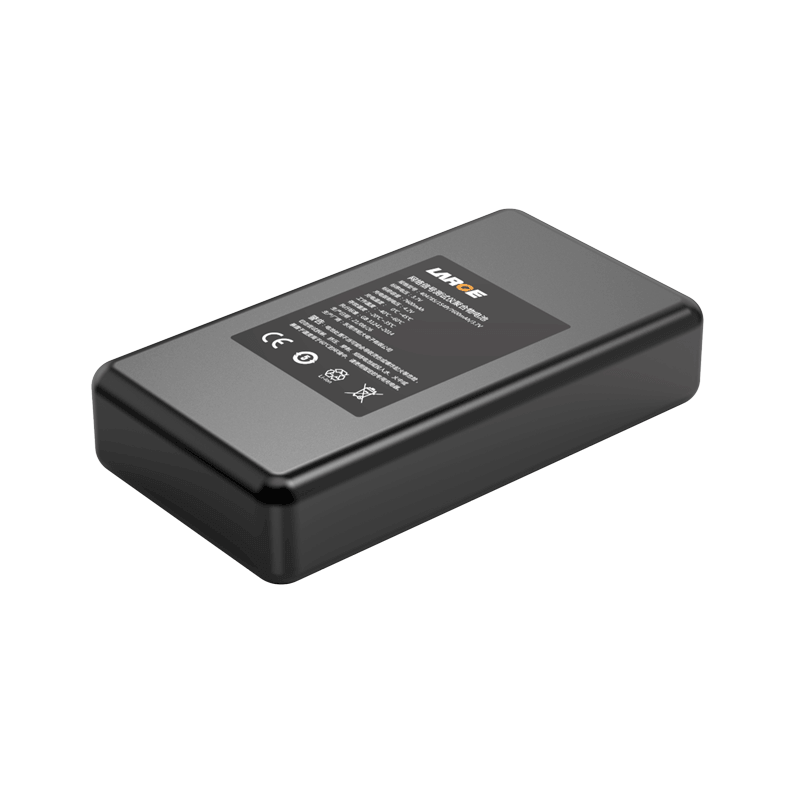

3.7V 7600mAh Lithium Polymer Battery for Network Signal Tester

Product Detail

Product number: 01WQ0037-11T

Cell model: 404785/1900mah /3.7V

Specification: 404785/1S4P/7600mAh/3.7V

Nominal voltage: 3.7V

Nominal capacity: 1900mAh

Charging voltage: 4.2V

Charging current: ≤3.8A

Discharge current: 1.5A

Instantaneous discharge current: 3.8A

Discharge cut-off voltage: 3.0V

Product internal resistance: ≤200mΩ

Battery weight: 0.15kg

Product size: 89*47.5*16.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: soft case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable devices

*
*
*
