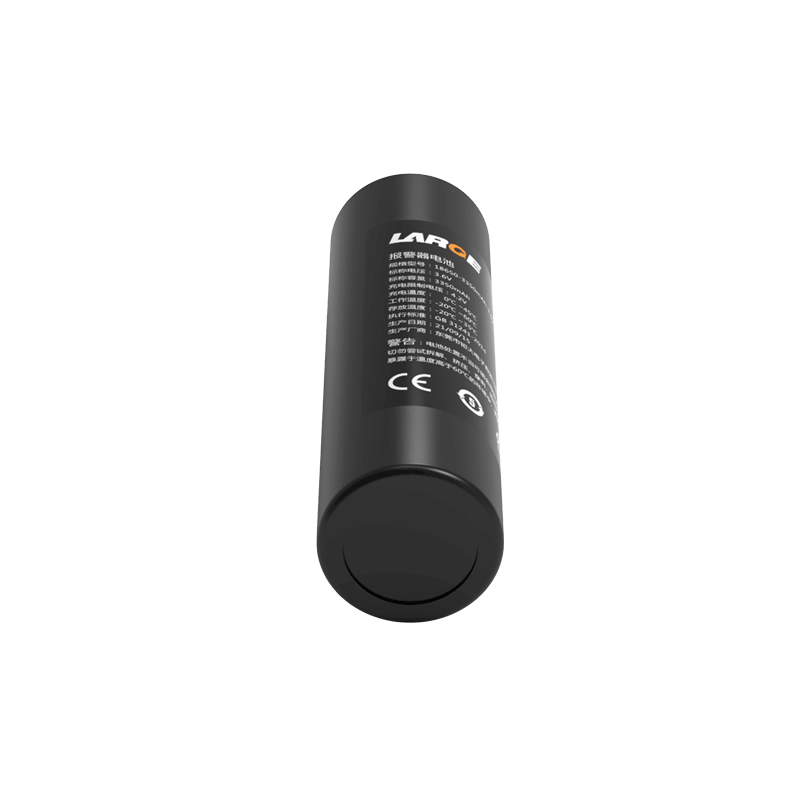

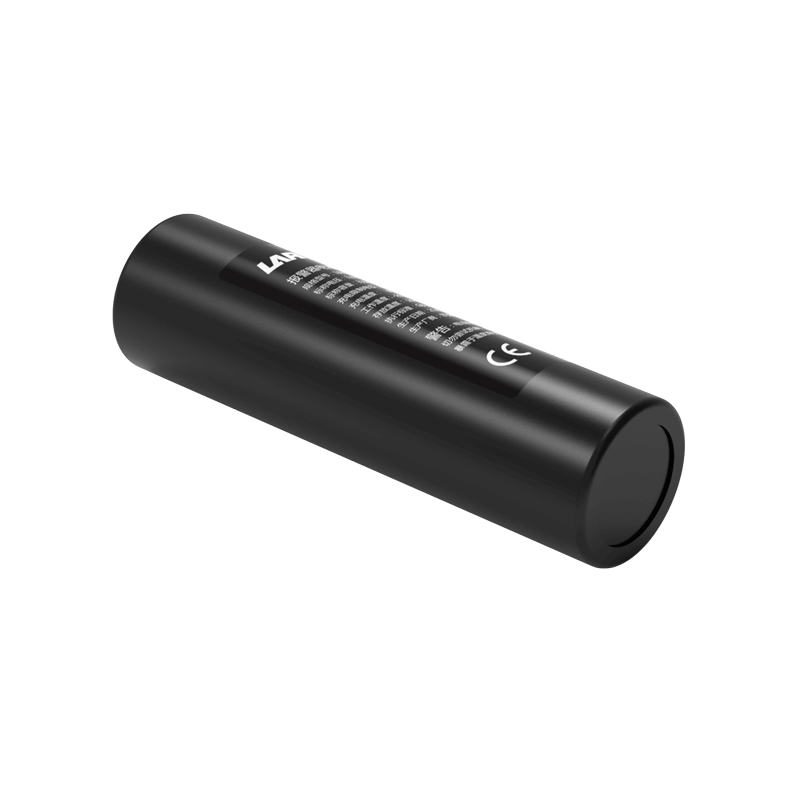

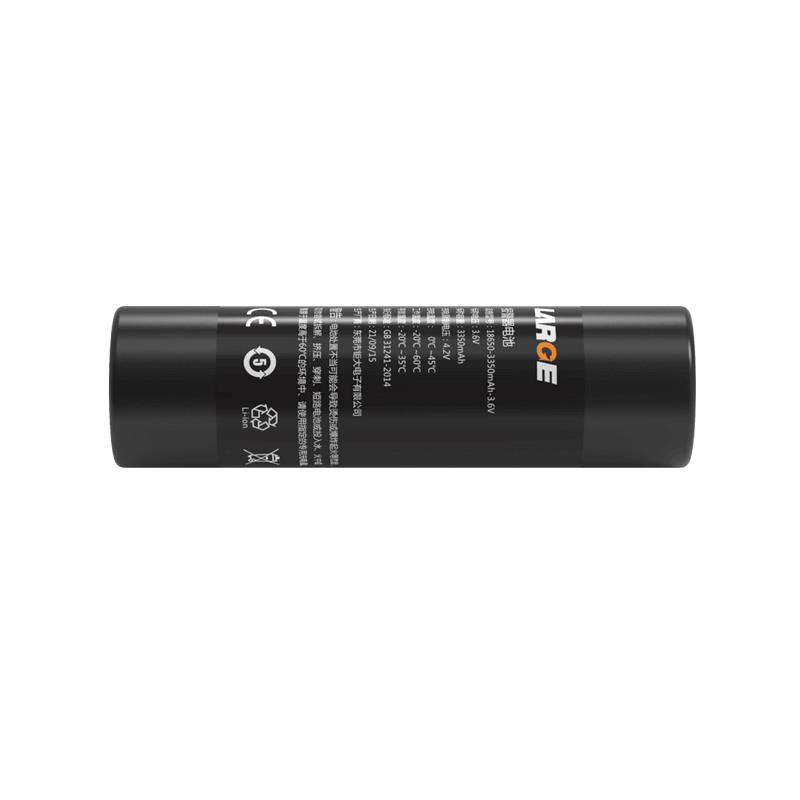

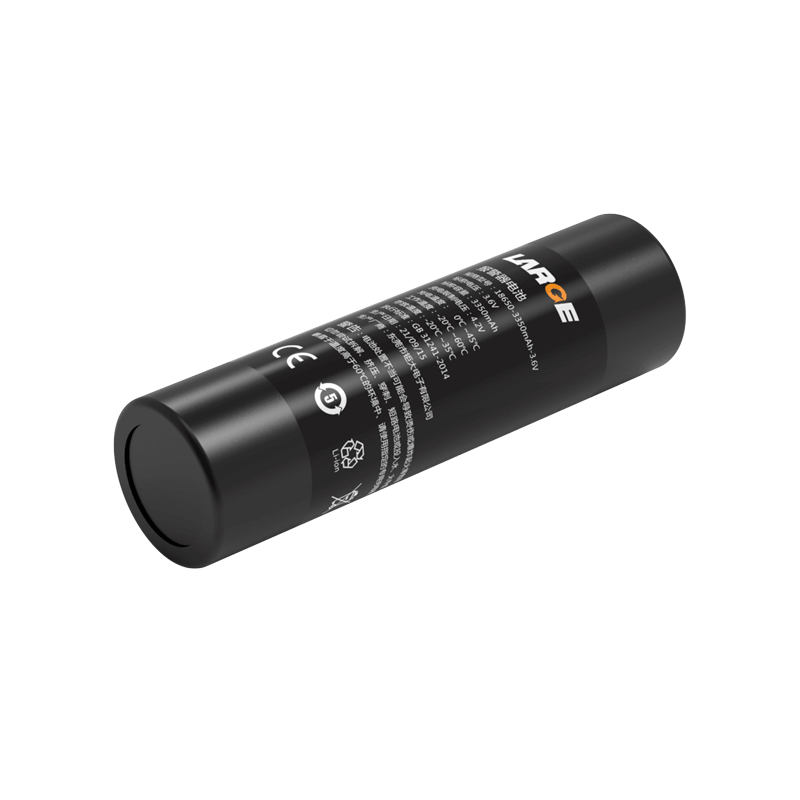

18650 3350mAh 3.6V Lishen Battery for Alarm
Product Number:
01DQ0023-51
Nominal voltage:
3.6V
Nominal capacity:
3350mAh
Battery Configuration:
18650-1S1P
Dimension:
69.5 × 19.5 mm
Application:
smoke alarms and fire alarm devices
Blue PVC Packaging, JST Connector Output, Long Cycle Life
Product Overview
此电池专为烟雾报警器和火灾报警设备设计，适用于安防监控和持续性突发场景。其结构紧凑，输出稳定，确保长期可靠运行，延长设备使用寿命。
电气规格
| 属性 | 范围 |
|---|---|
| 产品编号 | 01DQ0023-51 |
| 细胞模型 | 18650-3350mAh-3.6V |
| 电池配置 | 18650-1S1P |
| 标称电压 | 3.6伏 |
| 额定容量 | 3350mAh |
| 额定能量 | 12.06瓦时 |
| 充电电压 | 4.2伏 |
| 导出电压 | 2.5伏 |
| 标准充电电流 | ≤1.5A |
| 标准电流 | ≤1.5A |
| 内阻 | ≤150mΩ |
机械与环境
| 属性 | 范围 |
|---|---|
| 充电温度 | 0～45℃ |
| 沙滩温度 | -20 ~ 60℃ |
| 储存温度 | -20～35℃ |
| 方面 | 69.5×19.5毫米 |
| 重量 | 60克 |
| 输出类型 | JST连接器 |
| 电池盒 | 蓝色PVC热缩膜 |
| 保护系统 | 短路保护、过充保护、过放保护、过流保护、静电放电保护 |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
