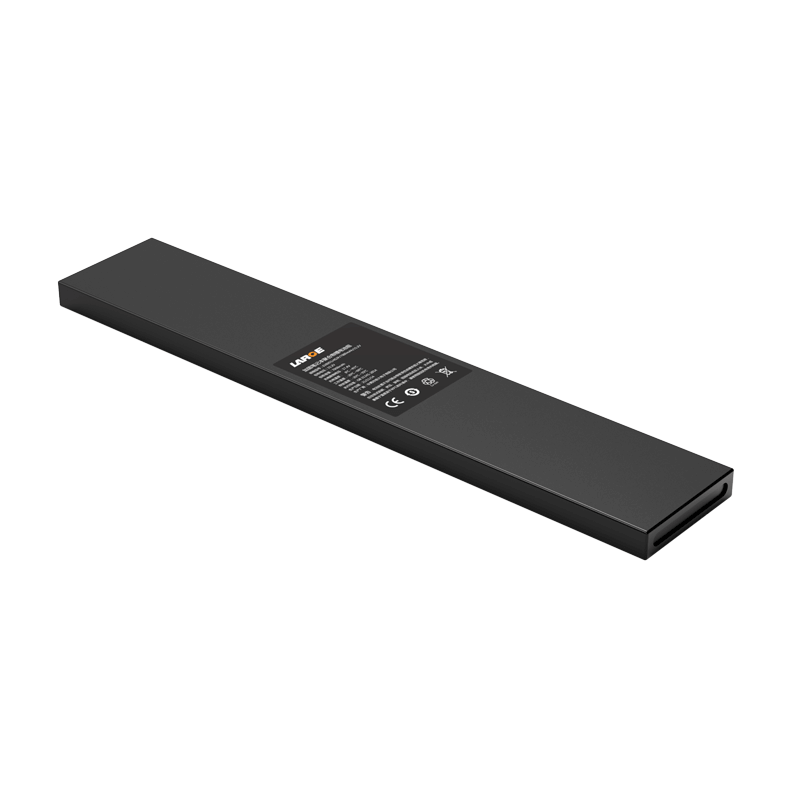

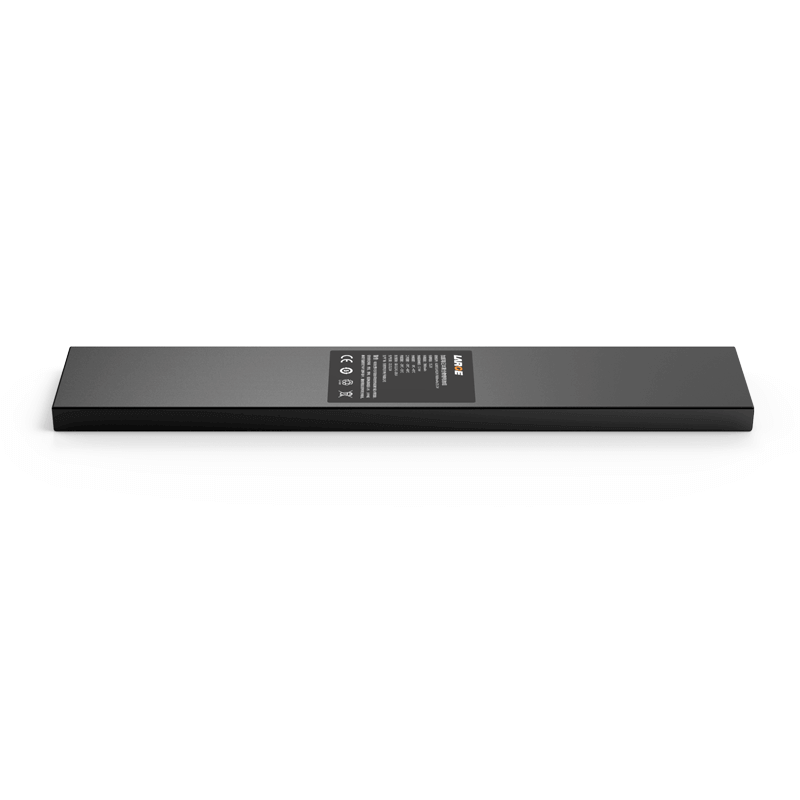

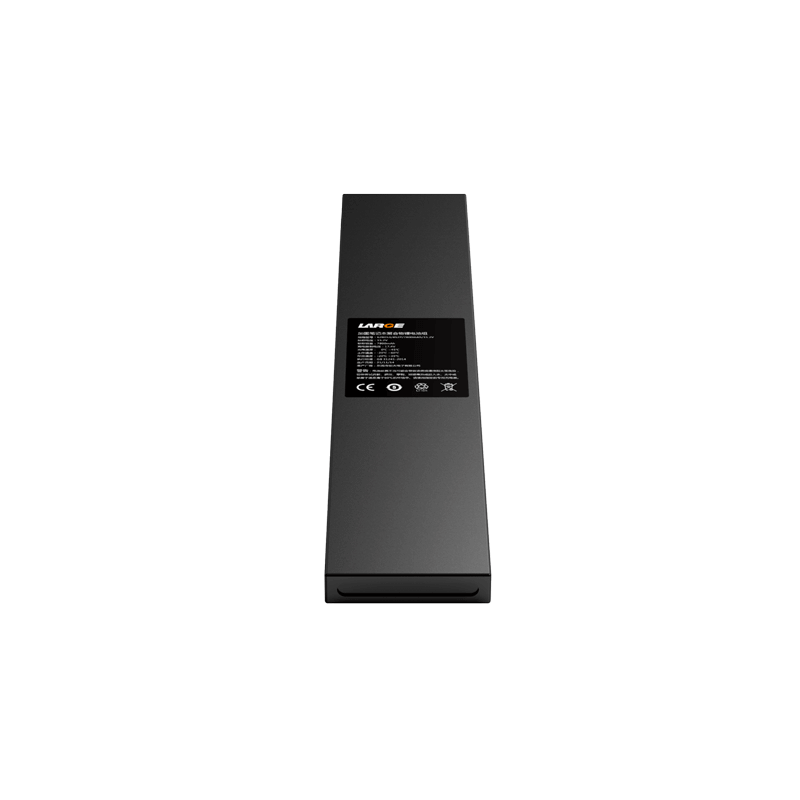

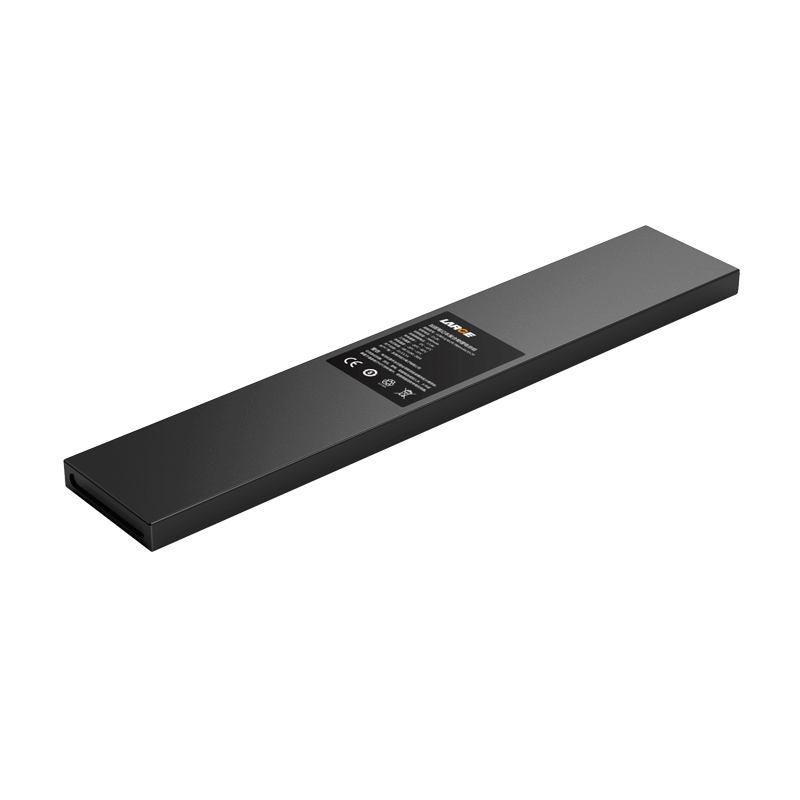

15.2V 7800mAh Lithium Polymer Battery for Rugged Laptop

Product Detail

Project number: 01DQ0142-01

Cell model: 628053/3900mah /3.8V

Specification: 628053/4 s2p / 7800 mah / 15.2 V

Nominal voltage: 15.2V

Nominal capacity: 7800mAh

Charging voltage: 17.4V

Charging current: ≤3.9A

Discharge current: 5.0A

Instantaneous discharge current: 8.0A

Discharge cut-off voltage: 12.0V

Product internal resistance: ≤200mΩ

Battery weight: 450G

Product size: 13*60*325mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35 ° C

Battery case: /

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Rugged laptop

*
*
*
