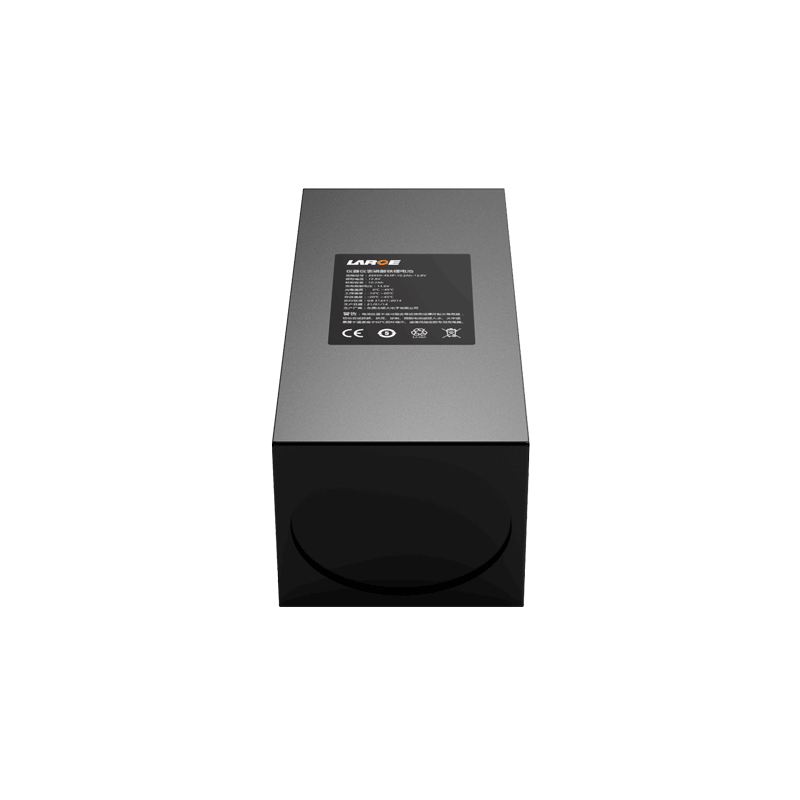

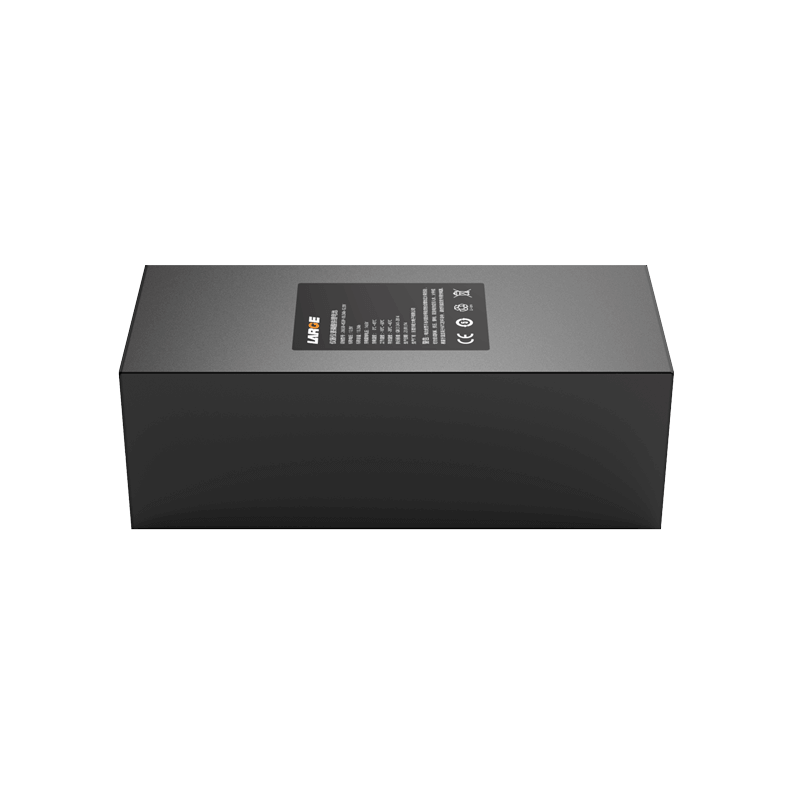

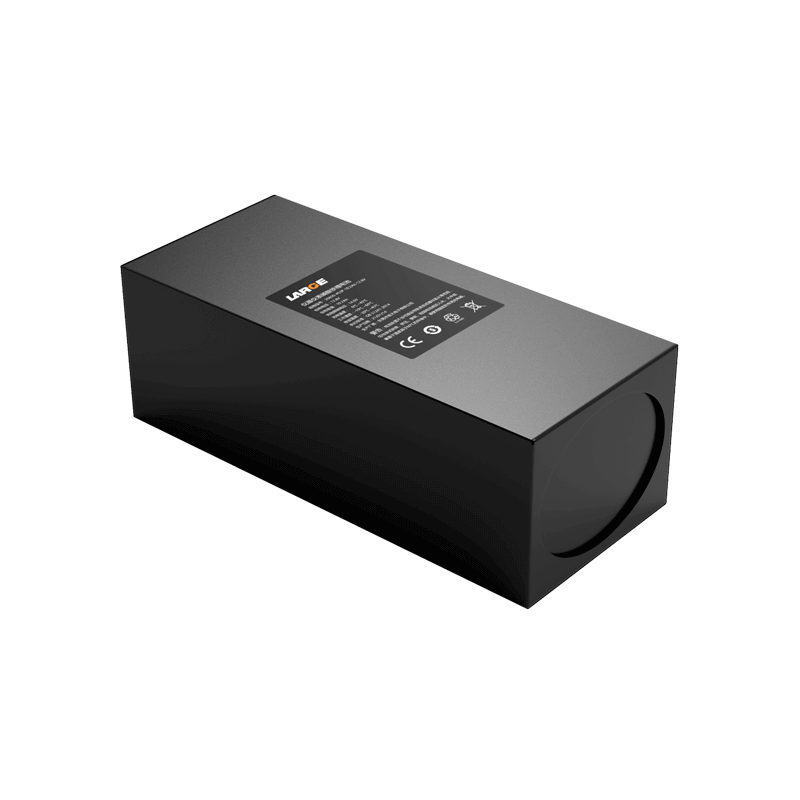

26650 12.8V 10.2Ah LiFePO4 Battery for Instrument

Product Detail

Product number: 08DQ0037-01

Cell model: 26650/3400mAh/3.2V

Battery specification: 26650-4S3P-10.2Ah-12.8V

Product dimension: 175*60*75mm (Max)

Nominal voltage: 12.8V

Nominal capacity: 10.2Ah

Charging voltage: 14.6V

Charging current: ≤5.1A

Discharge current: ≤10.2A

Discharge cut-off voltage: 8V

Finished product internal resistance: ≤180mΩ

Battery weight: 1.2kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35 ℃(less than 3 months); -20~+25℃ (less than 12 months)

Battery encapsulation: PVC heat shrinkable film encapsulation

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Instrumentation

*
*
*
