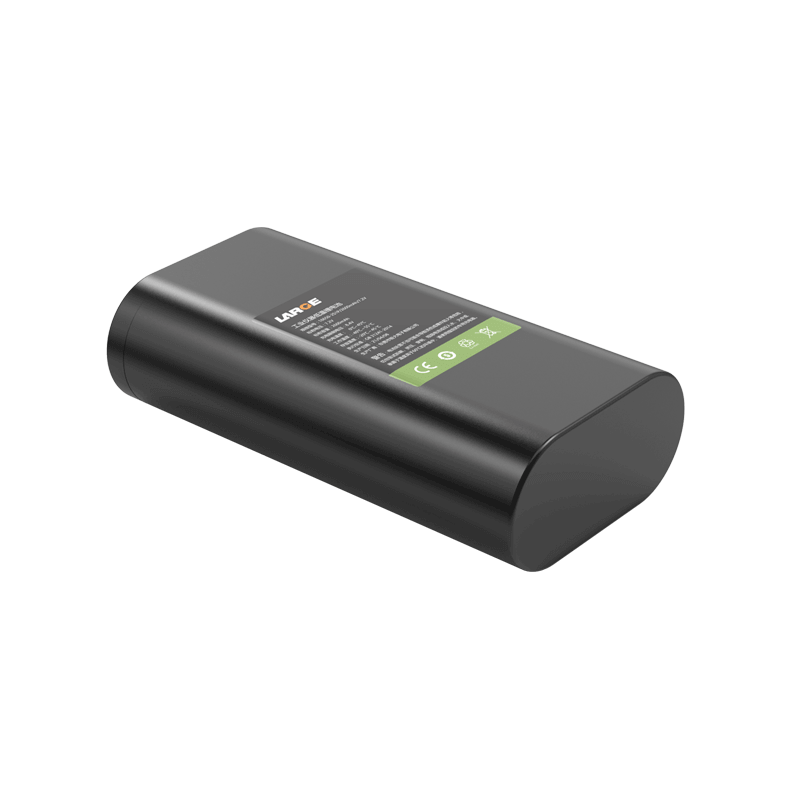

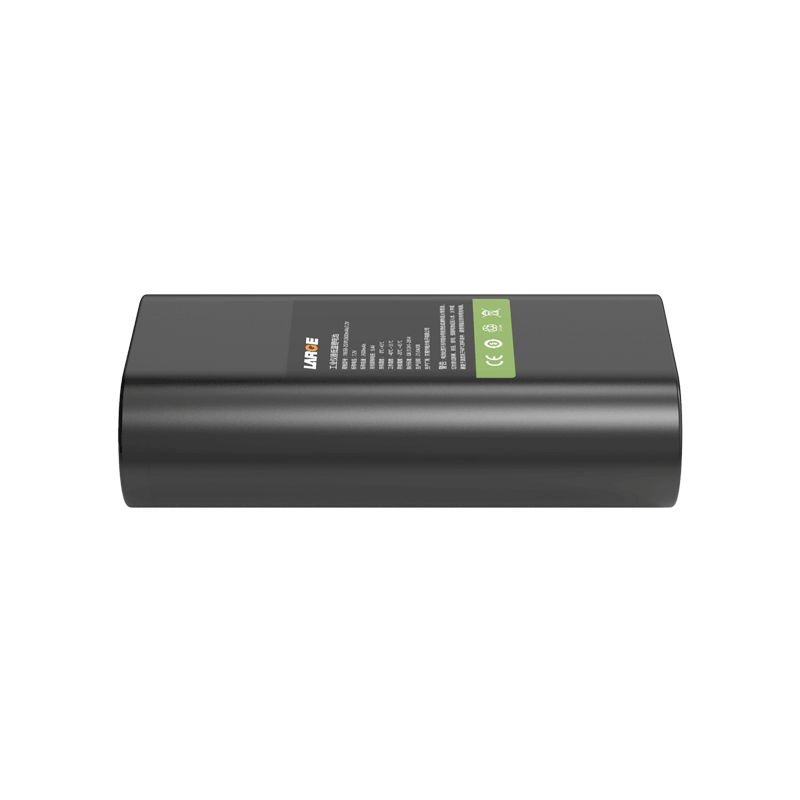

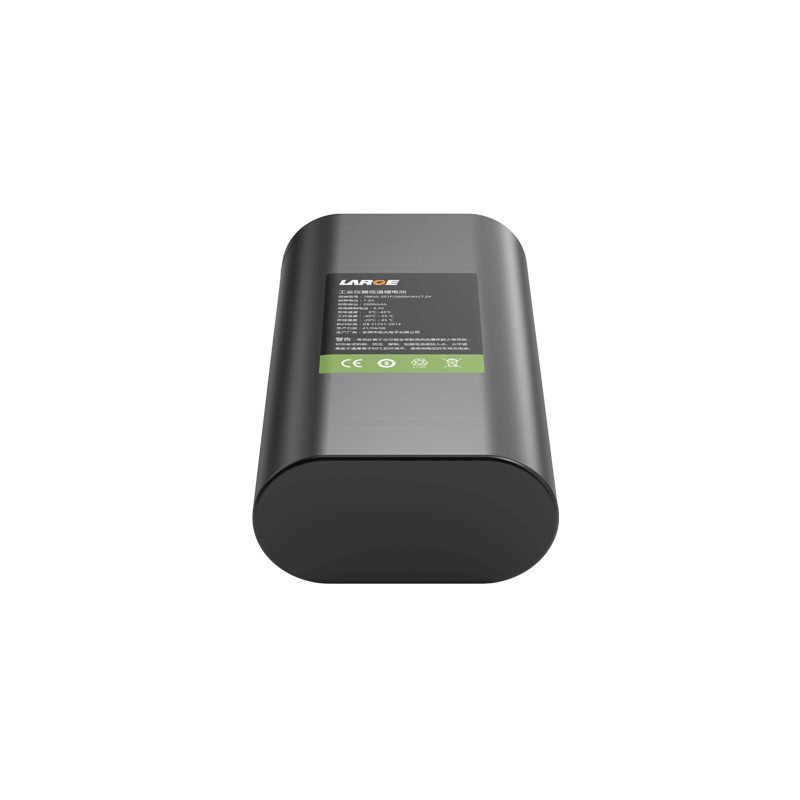

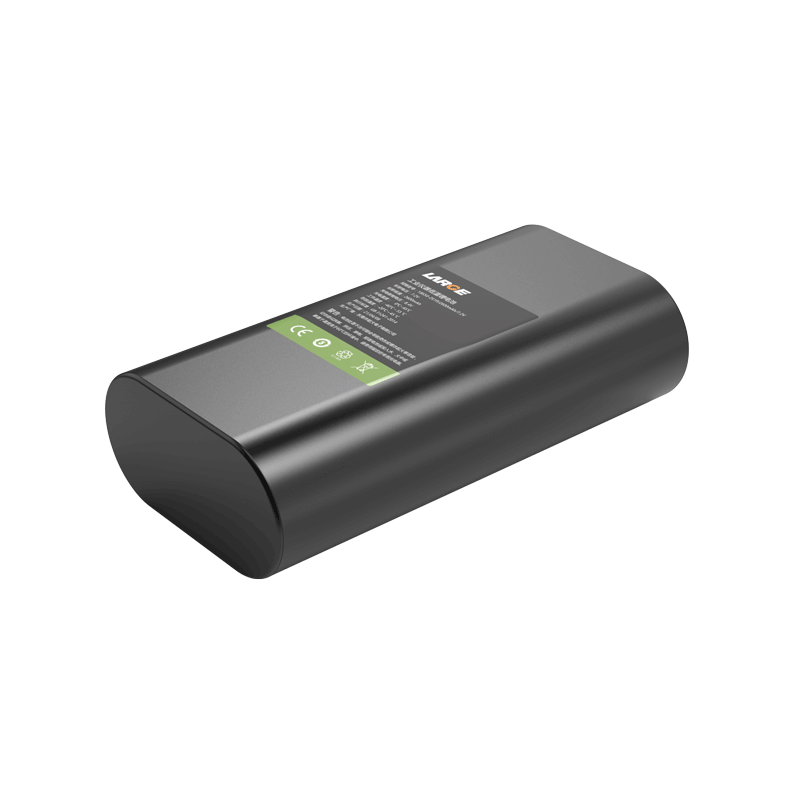

18650 7.2V 2600mAh Low Temperature Battery for Industrial Instrument

18650 7.2V 2600mAh Low Temperature Battery for Industrial Instrument
18650 7.2V 2600mAh Low Temperature Battery for Industrial Instrument
18650 7.2V 2600mAh Low Temperature Battery for Industrial Instrument
18650 7.2V 2600mAh Low Temperature Battery for Industrial Instrument

Product Detail

Product number: 40AQ009-02

Cell model: ICR18650/2600mAh/3.6V

Battery specification: 18650-2S1P/2600mAh/7.2V

Nominal voltage: 7.2V

Nominal capacity: 2600mAh

Charging voltage: 8.4V

Charging current: 520mA

Discharge current: 520mA

Instant discharge current: 2500mA

Discharge cut-off voltage: 5.0V

Finished product internal resistance: ≤120mΩ

Battery weight: 130g

Product dimension: 72.5*38*23mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ +55℃

Storage temperature: -20 ~ +45℃

Battery case: PVC

Lithium batteryprotection: conventional protection +SMBUS communication function


Product features

1.Data communication management: Use TI software management chip, accurate data transmission, precise temperature control to eliminate security risks;

2.The battery pack has good safety, nice performance and compact structure design;

3.It can accurately monitor the battery power.

*
*
*
