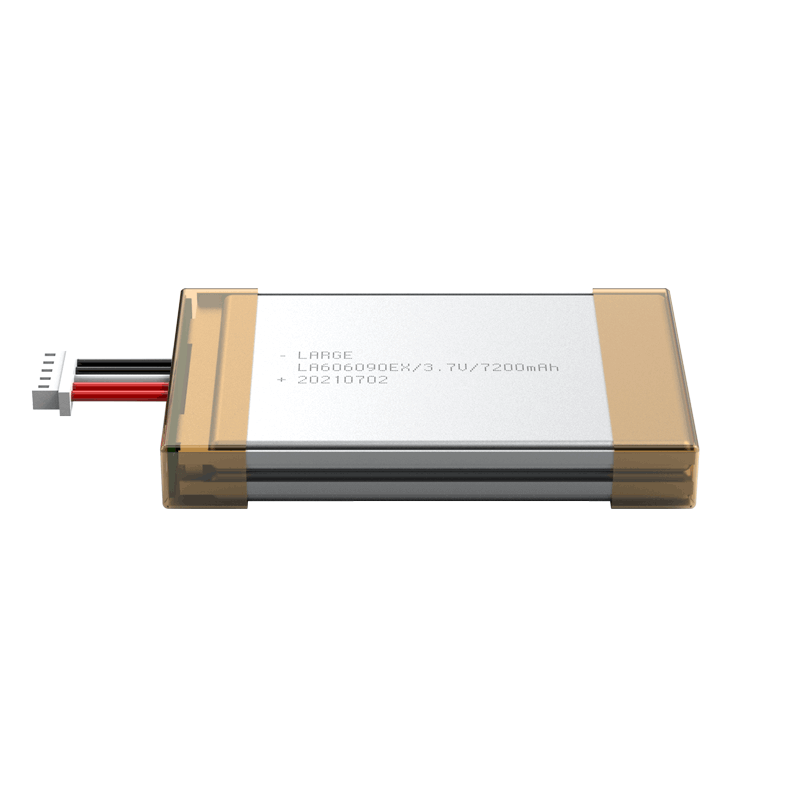

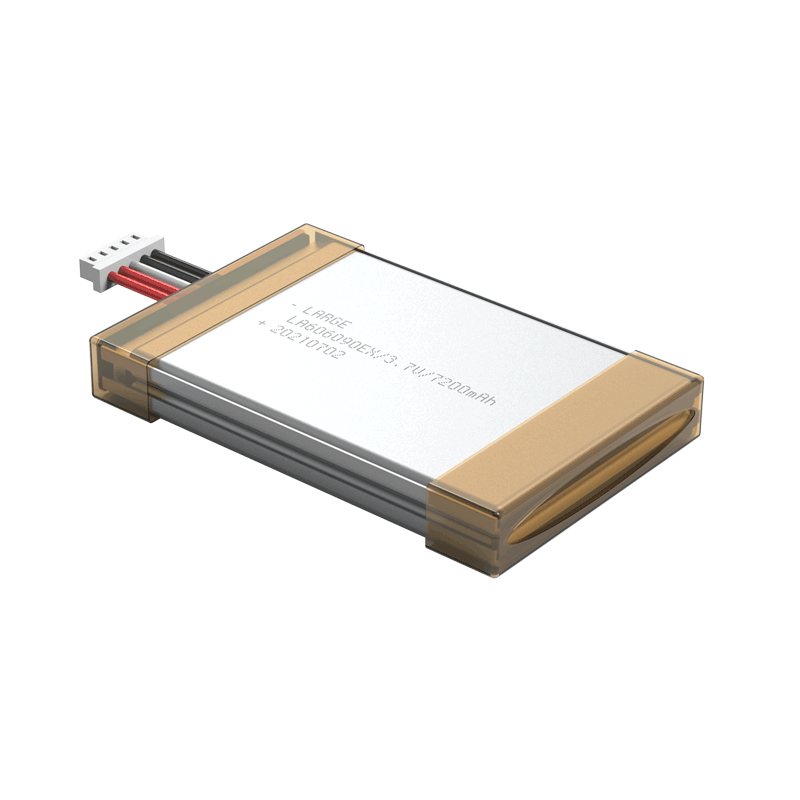

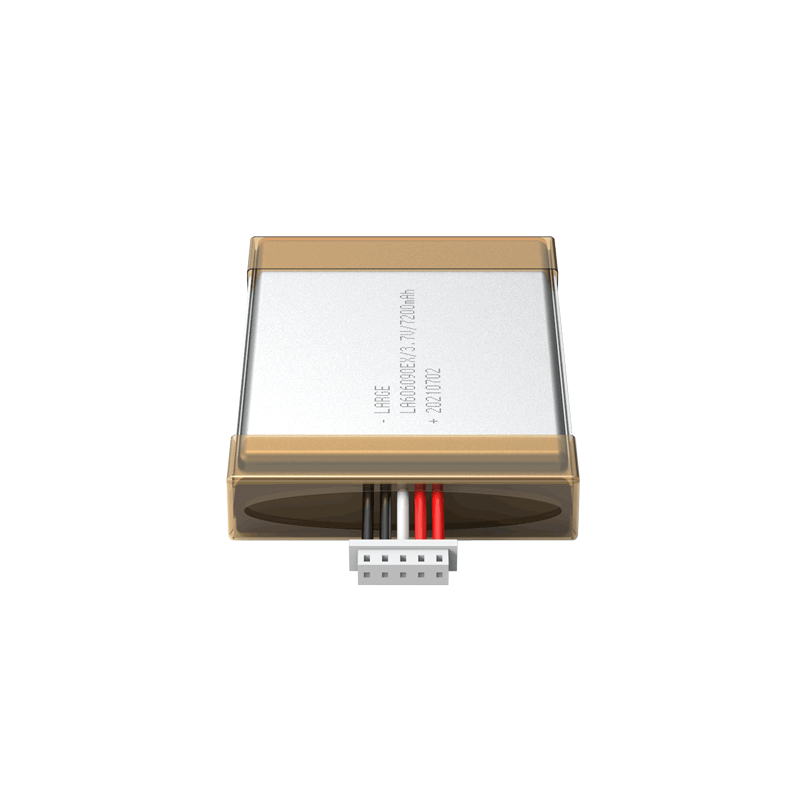

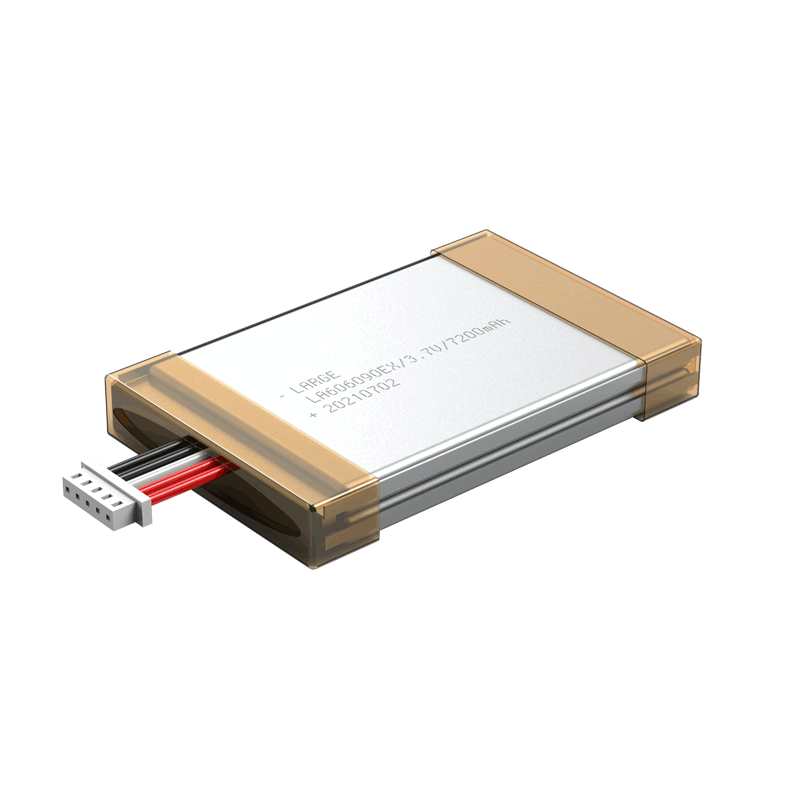

606090 3.7V 7200mAh Lithium Polymer Explosion-proof Battery
Product Number:
34AQ080-03
Nominal voltage:
3.7V
Nominal capacity:
7200mAh
Battery Configuration:
LA606090EX-1S2P
Dimension:
13.0 × 61 × 95 mm
Application:
Hanheld Terminal
Explosion Proof Safety, High Energy Density, Multiple Protection System
Product Overview
Electrical Specifications
| Property | Parameter |
| Product Number | 34AQ080-03 |
| Cell Model | LA606090EX-3600MAH-3.7V |
| Battery Configuration | LA606090EX-1S2P |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 7200mAh |
| Rated Energy | 26.64Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 3.0V |
| Standard Charging Current | ≤2.5A |
| Standard Discharge Current | 2.3A |
| Max Continuous Discharge Current | 2.3A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Property | Parameter |
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 55℃ |
| Storage Temperature | 0 ~ 25℃ |
| Dimensions | 13.0 × 61 × 95 mm |
| Weight | 160g |
| Protection System | Short-circuit, over-charge, over-discharge, over-current protection, etc. |
Application Background
This battery solution is specially designed for industrial handheld terminals, suitable for data collection, field inspection, and wireless communication in high-intensity mobile applications.
The device requires long-term stable operation in complex environments, with continuous power supply during data transmission and communication, demanding high requirements for runtime, peak discharge capability, and safety protection.
Project Challenges
- Continuous operation required for 10–12 hours
- 6A instantaneous discharge causes voltage fluctuation risk
- Frequent charge/discharge cycles require strong cycle stability
- Industrial environments require high safety performance
Customized Battery Solution
- High energy density design: 7200mAh capacity for extended runtime
- Explosion-proof structure: enhanced safety for industrial use
- Multiple protection system: overcharge, over-discharge, overcurrent, and short-circuit protection
- Wide temperature adaptability: stable operation from -20°C to 55°C
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
