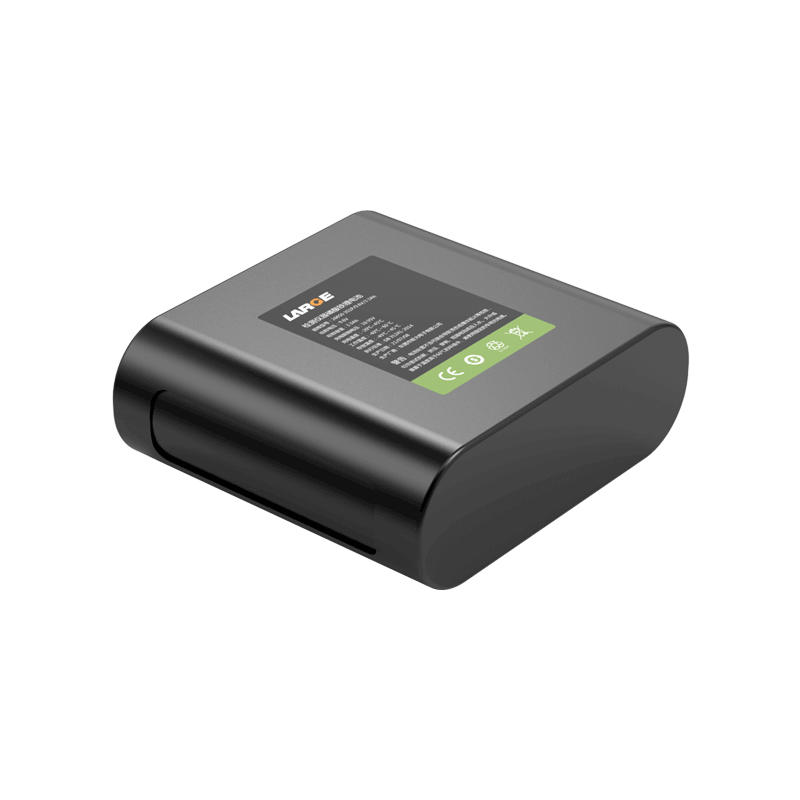

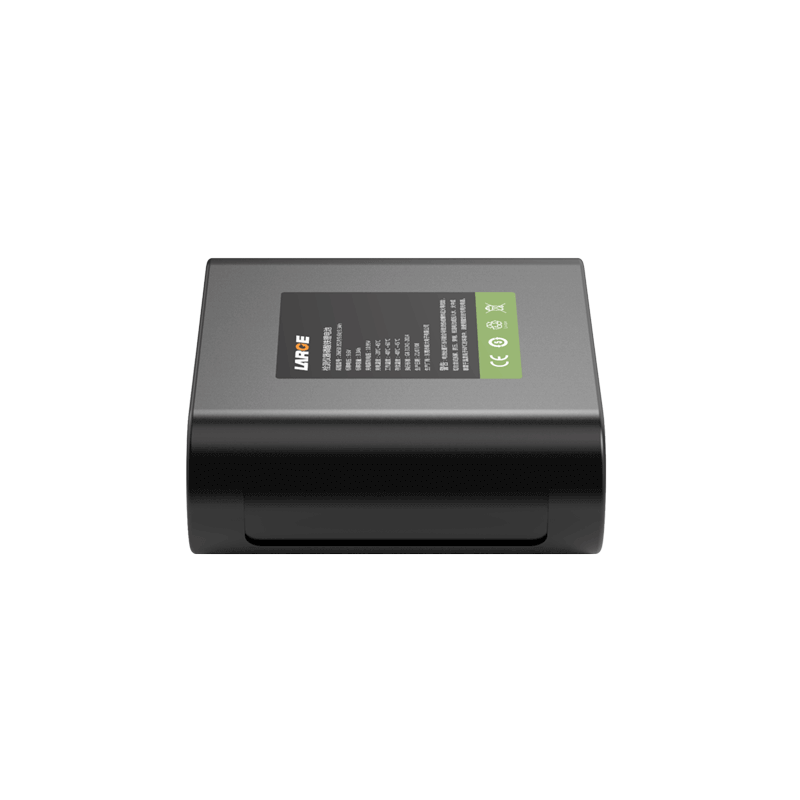

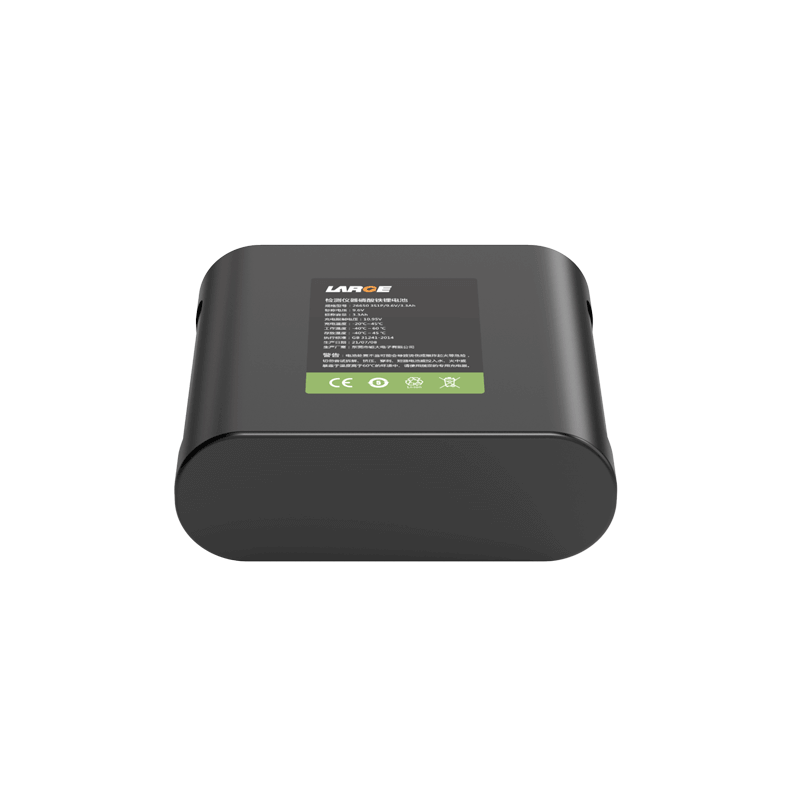

26650 9.6V 3.3Ah LiFePO4 Battery Pack
Product Number:
33DZ031-01
Nominal voltage:
9.6V
Nominal capacity:
3.3Ah
Battery Configuration:
26650-3S1P
Dimension:
82×75×28 mm
Application:
industrial equipment
Wide Temperature Range, Multi Protection System, High Discharge Stability
Product Overview
This battery is designed for industrial testing instruments used in instrumentation and field measurement applications, where stable power is required under complex working conditions. It delivers stable output with wide temperature adaptability, ensuring reliable operation in long-duration and high-demand industrial environments.
Electrical Specifications
| Property | Parameter |
|---|---|
| Product Number | 33DZ031-01 |
| Cell Model | 26650/3.2V/3.3Ah |
| Battery Configuration | 3S1P |
| Nominal Voltage | 9.6V |
| Nominal Capacity | 3.3Ah |
| Rated Energy | 31.68Wh |
| Charging Voltage | 10.95V |
| Discharge Cut-off Voltage | 6V |
| Standard Charging Current | ≤1.65A |
| Standard Discharge Current | ≤2A |
| Max Continuous discharge current | ≤2A |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Property | Parameter |
|---|---|
| Charging Temperature | -20～45℃ |
| Discharge Temperature | -40～60℃ |
| Storage Temperature | -40～45℃ |
| Dimensions | 82×75×28 mm |
| Weight | 300g |
| Output Type | — |
| Battery Case | PVC packaging |
| Protection System | Short circuit / overcharge / over-discharge / charge overcurrent / discharge overcurrent protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
