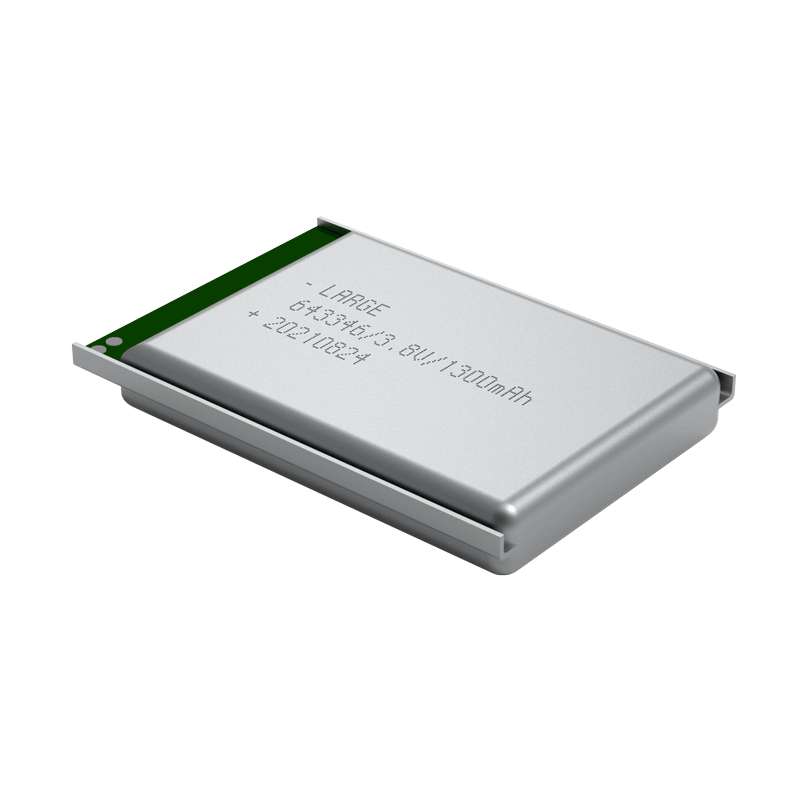

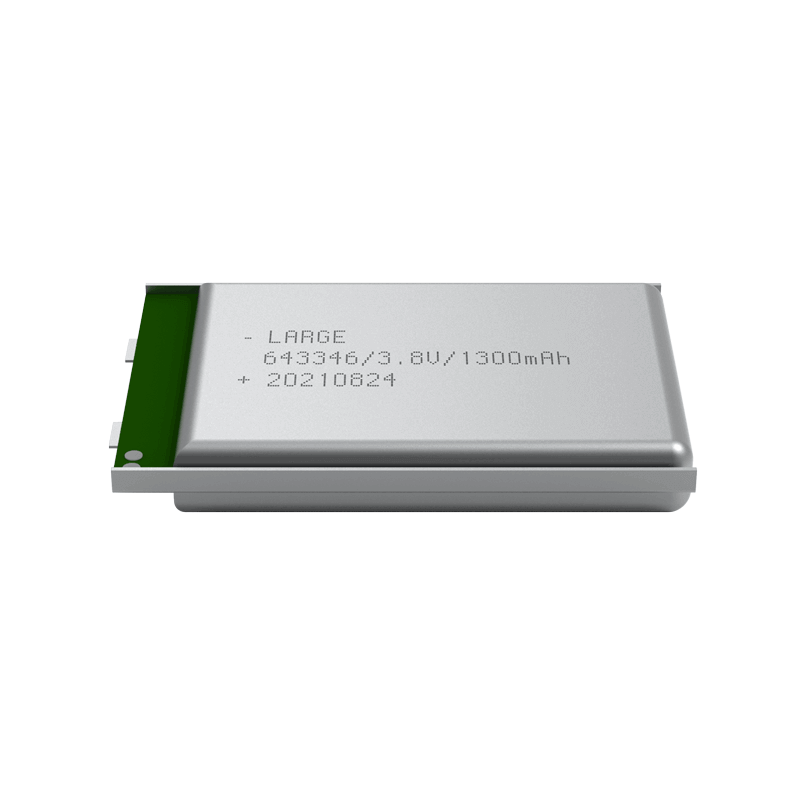

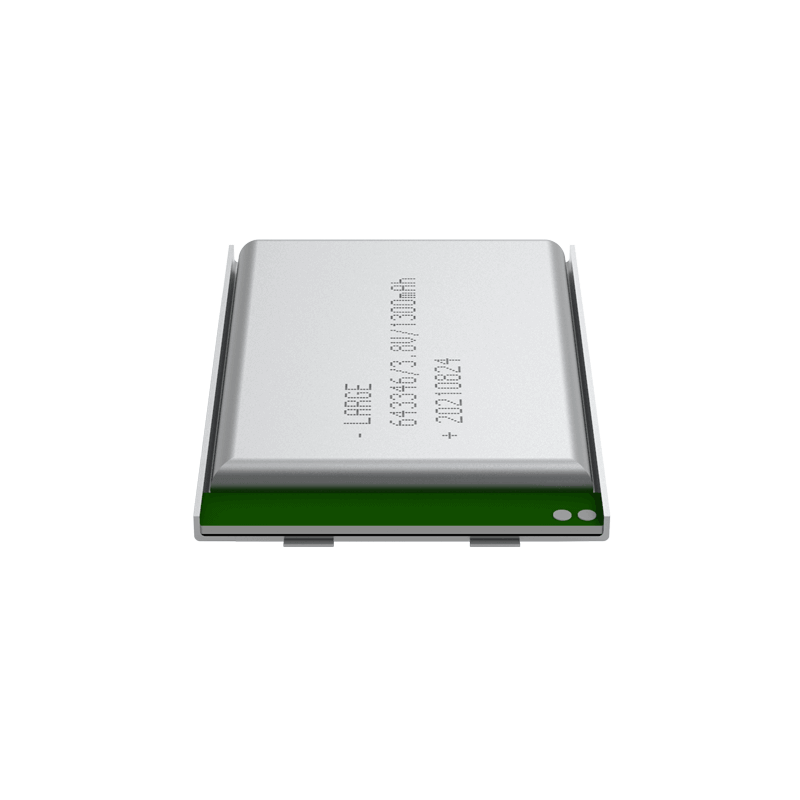

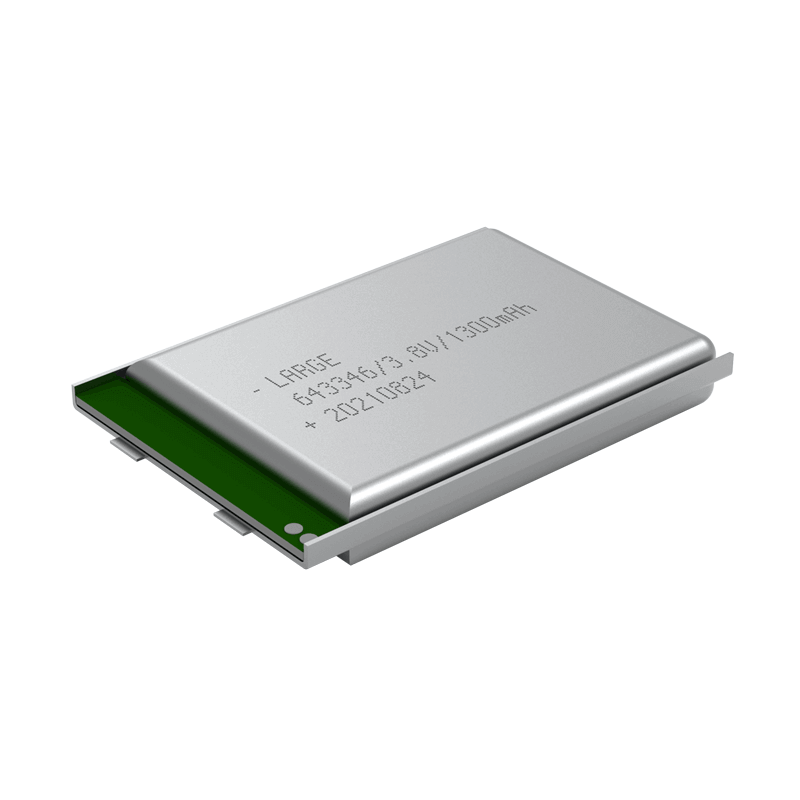

3.8V 1300mAh Lithium Polymer Battery for Smart Card

Product Detail

Product number: 01WQ0029-10

Cell model: 643346/3.8V/1300mAh

Specification: 643346-1S1P/3.8V/1300mAh

Nominal voltage: 3.8V

Nominal capacity: 1300mAh

Charging voltage: 4.35V

Charging current: ≤0.65A

Discharge current: 0.3A

Instantaneous discharge current: 1.3A

Discharge cut-off voltage: 3.0V

Product internal resistance: ≤200mΩ

Battery weight: 0.025kg

Product size: 53*34*6.6mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: soft case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable devices

*
*
*
