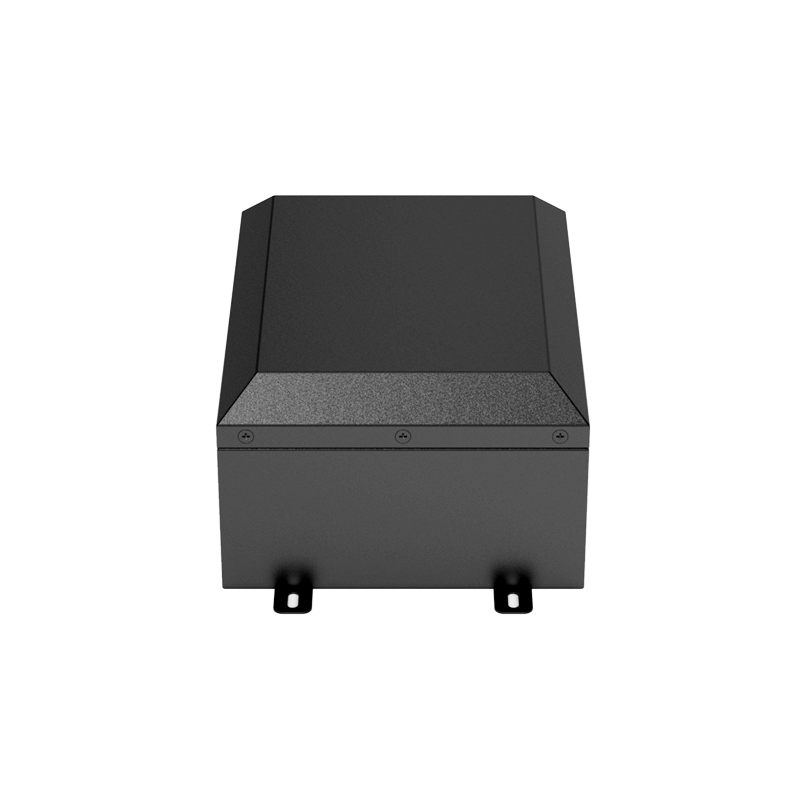

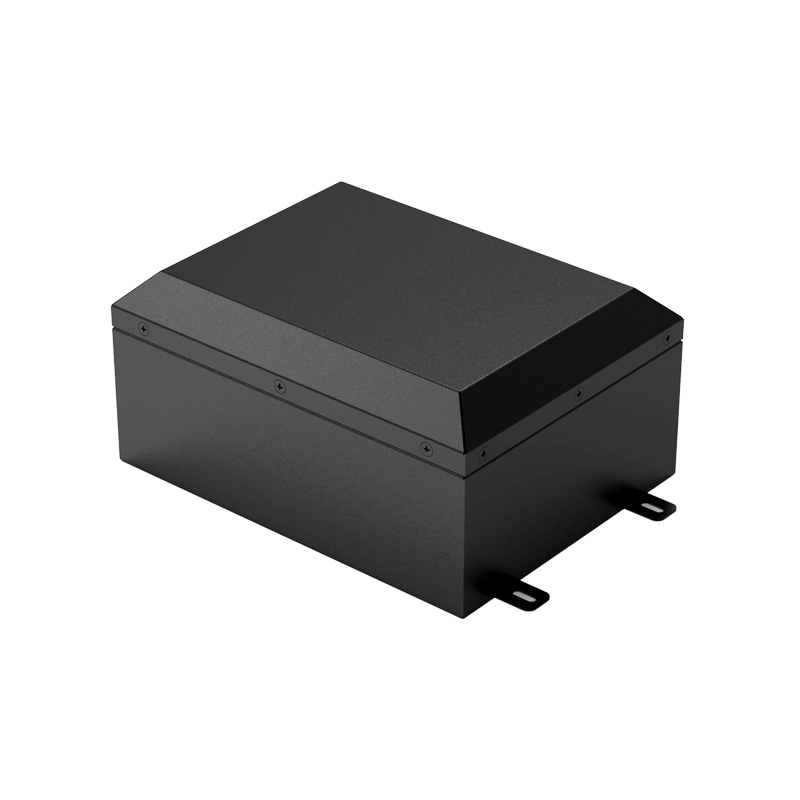

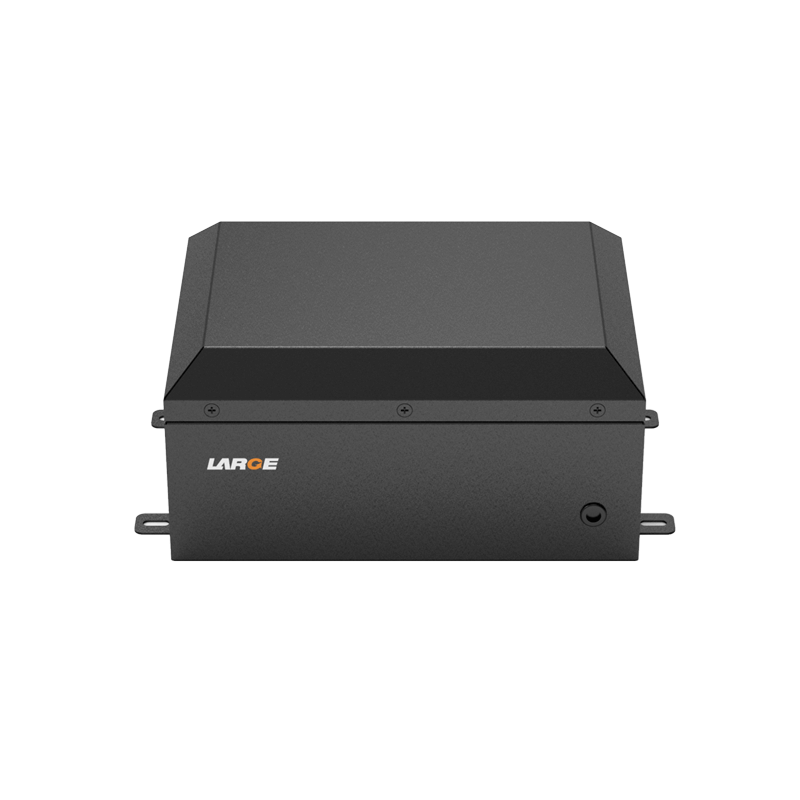

26650 48V/10.8AH Lithium-ion Battery for Medical Device

Product Detail

Product number: 37DZ088-01

Cell type: 26650/3.2V/ 3.6AH

Specification: 15S3P/48V/10.8Ah

Nominal voltage: 48V

Nominal capacity: 10.8Ah

Charging voltage: 54.75V

Charging current: ≤5.0A

Discharge current: 10A

Instantaneous discharge current: 30A

Discharge cut-off voltage: 37.5V

Product internal resistance: ≤200mΩ

Battery weight: 7.5Kg

Product size: 190*120*240mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 45 ° C

Temperature protection: 65℃±5℃

Battery cover: Sheet metal cover

Communications: RS485

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, balance and so on

Application: medical devices


Product Features

1.Large current output;

2.Built-in temperature protection for the battery,

3.The battery comes with a charge detection port.

4.485 Communication Management: SOC management, fault warning, etc.

5.The battery pack is safe and has long cycle life.

6.Charge at a cost of 0.5C.

7.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
