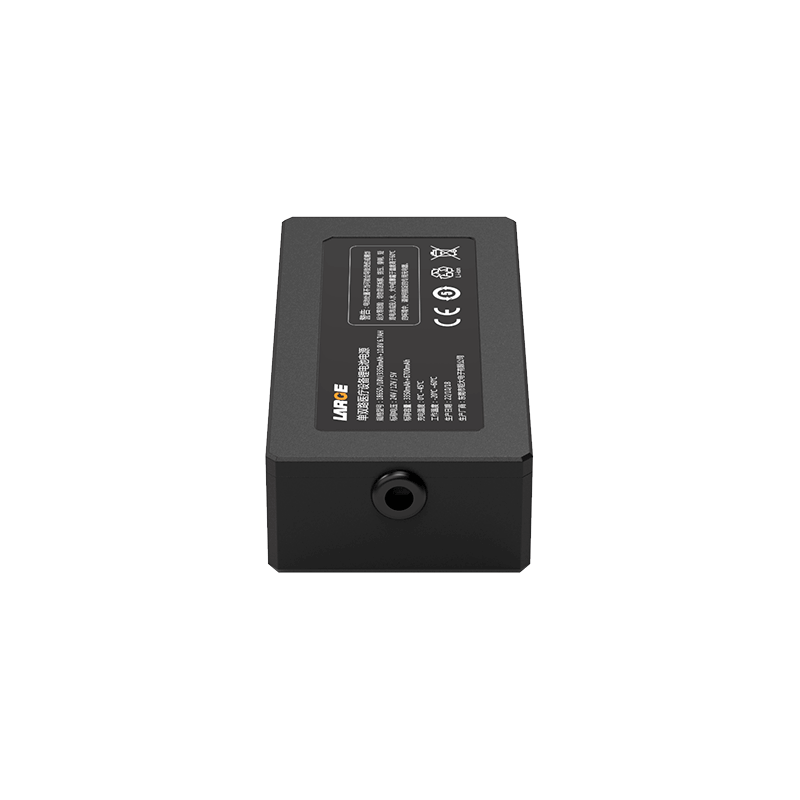

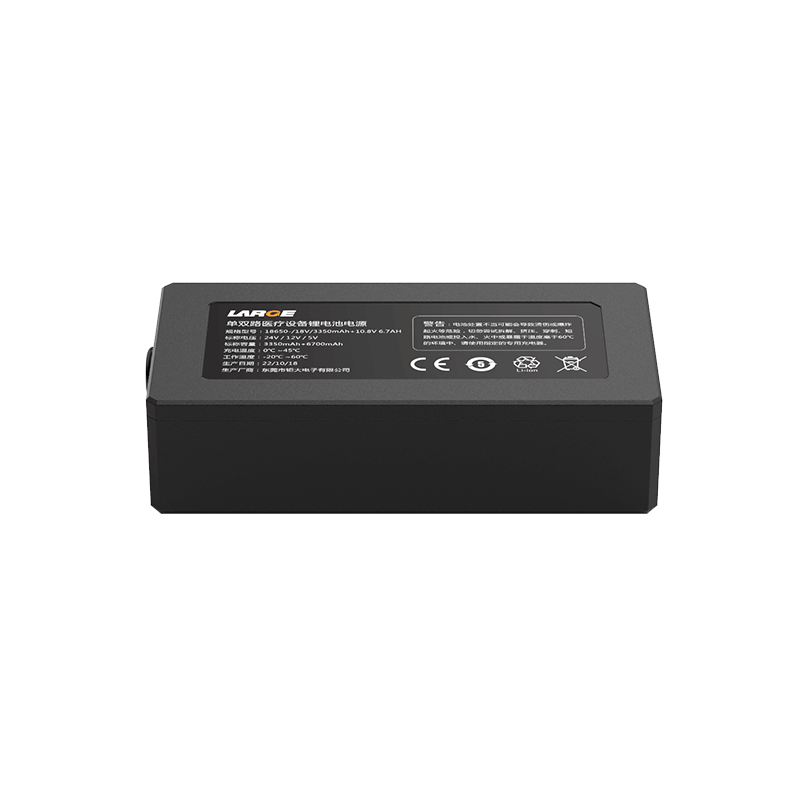

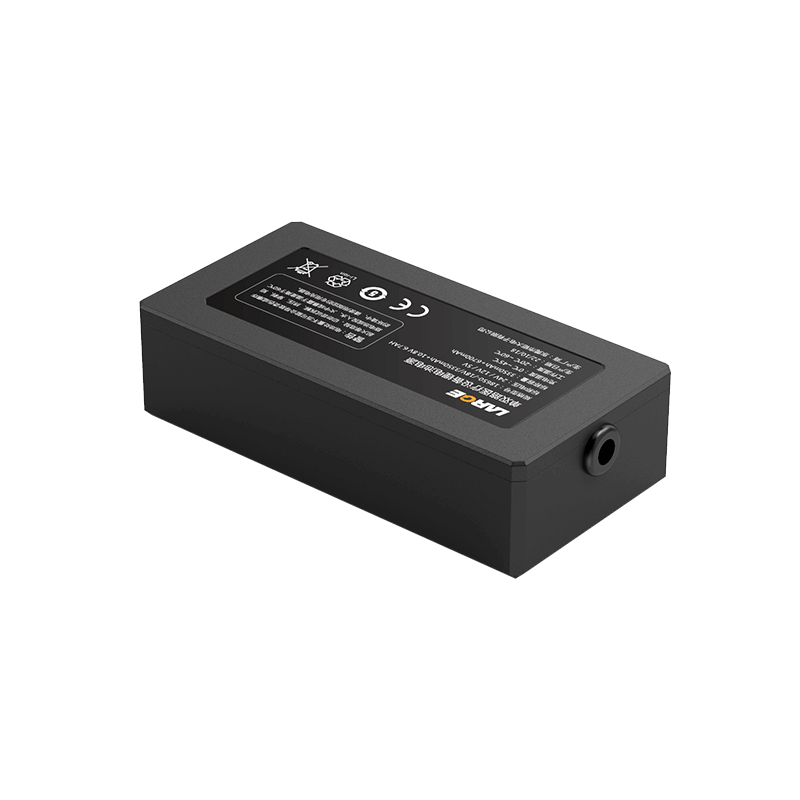

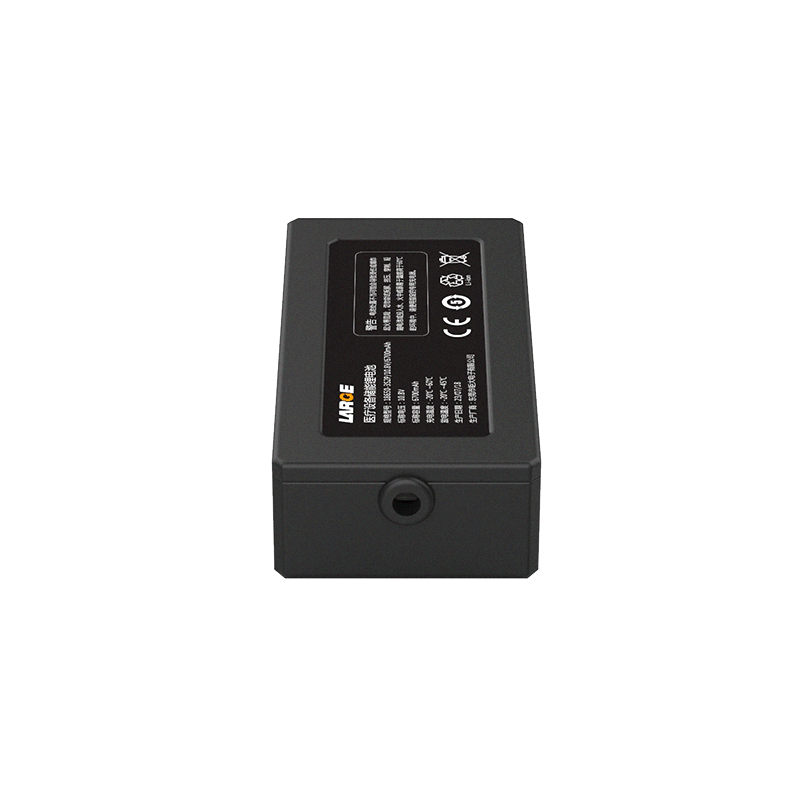

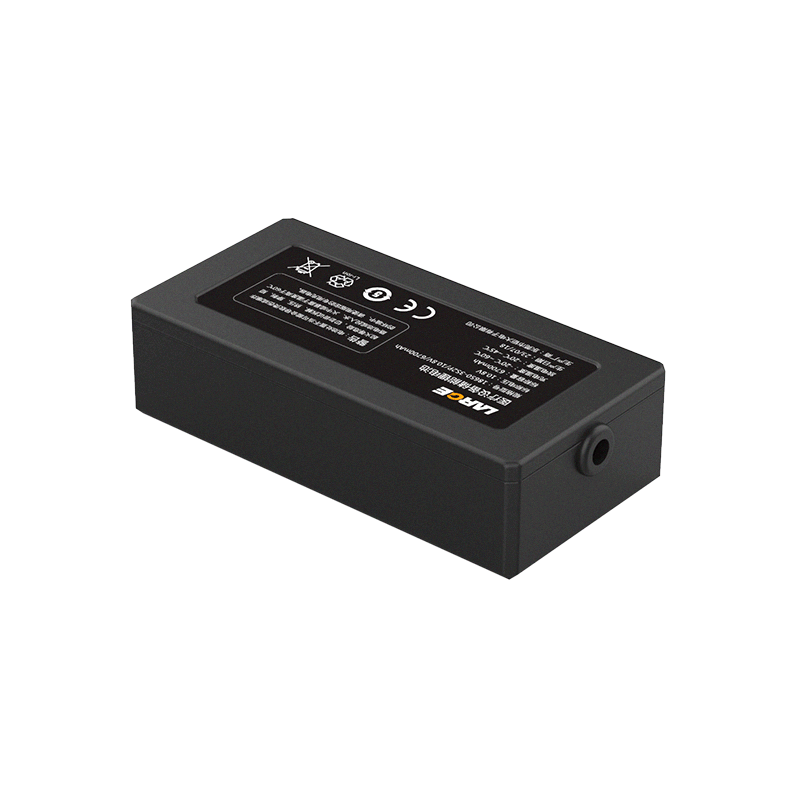

18V 3.35AH +10.8V 6.7AH lithium battery power supply for medical devices

Project number: 33DZ044-01

Battery model: 18650/3.6V/3350mAh

Battery specification: 18650-5S1P/18V/3350mAh+ 10.8V 6.7AH

Nominal voltage: 24V 12V 5V

Nominal capacity: 3350mAh+6700mAh

Charging voltage: 24V

Charging current: ≤3A

Discharge voltage: 26V 12V 5V

Discharge current: 26V/2.5A, 12V/1.5A, 5V/50mA

Discharge cut-off voltage: 15V/9V

Finished internal resistance: ≤250mΩ/200mΩ

Battery weight: 420g

Product size: 20.3*100*100mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: plastic case

Communication method: 485 communication

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, coulometer, 485 communication, etc.

Application: Medical equipment

Product Features

1.Low power consumption;

2.The battery comes with temperature protection,

3.The battery pack has nice safety and long cycle life;

4.It has charge management 24V input

5.The battery has 26V 12V 5V voltage regulator output.

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;

7.Automatic backup switchover between battery A and battery B.
