Custom Lithium ion Battery Pack

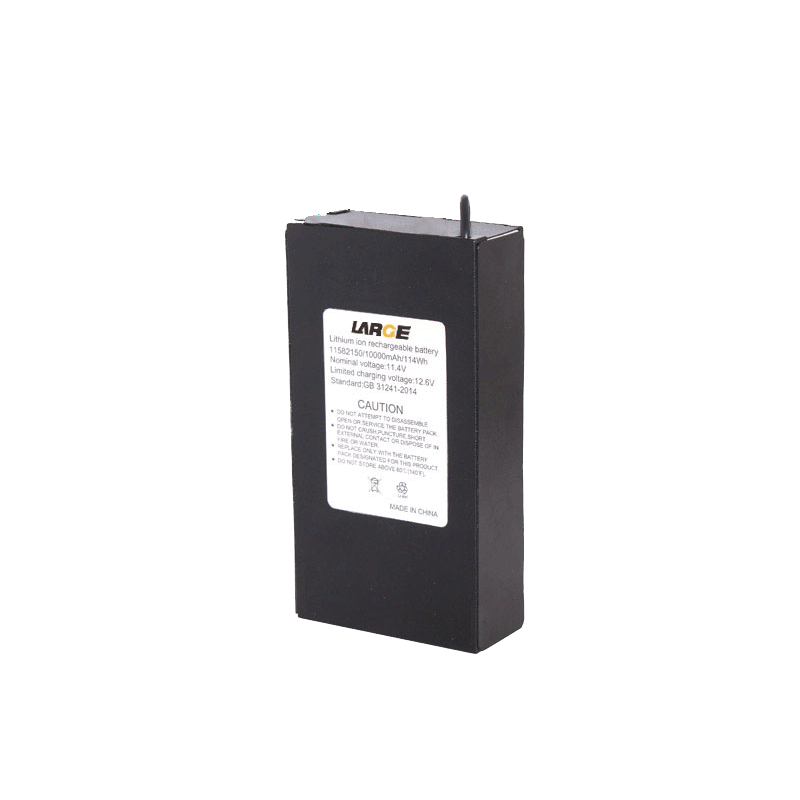

-20℃ Low Temperature Charge And Discharge Lithium Polymer Battery 11582150 11.1V 10Ah for Smart Express Cabinet

Product Detail

Nominal voltage: 11.4V

Nominal capacity: 10000mAh

Battery dimension:  175*88*38mm

The battery internal resistance 50 m?or less

The battery weight: 800g

Charging current: 2A

Continuous discharge current: 5A

Protection current: 15-25A

Charging voltage: 12.6V

Discharge cut-off voltage: 9V

Service life?: charging and discharging condition 0.5C charging and 0.5C discharging,≥500 times

Charging temperature: -20 ~ 55℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 60℃

The main features

1. Basic protection functions such as over charge, over discharge, over current, short circuit, etc.

2. Charge-discharge function at ultra-low temperature (0.2C charge-discharge current, capacity retention rate is about 90% in -20℃)
