Custom Lithium ion Battery Pack

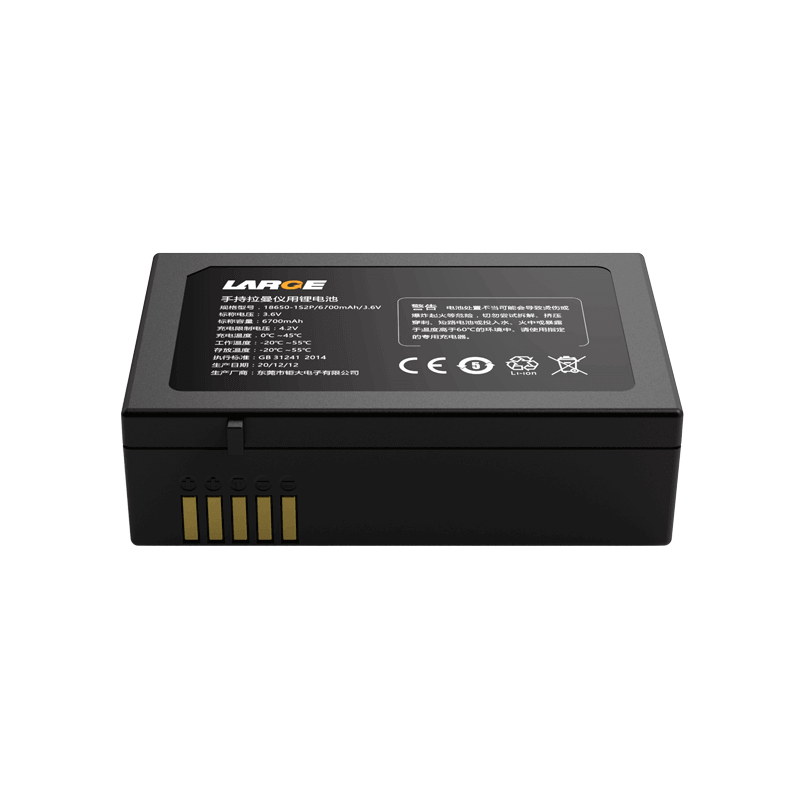

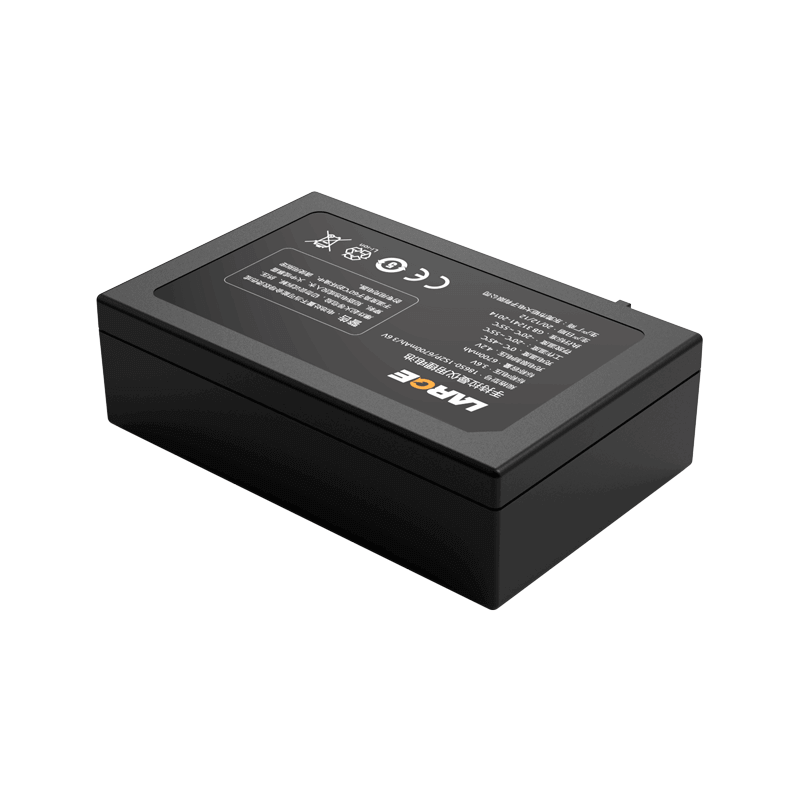

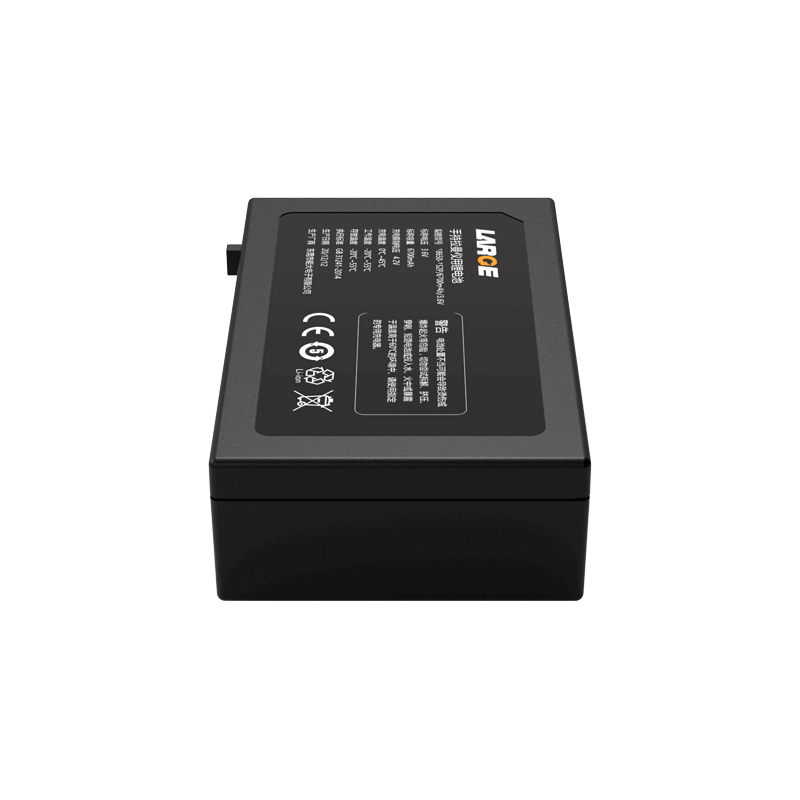

18650 3.6V 6700mAh Samsung Battery for Handheld Raman Spectrometer

Product Detail

Product number: 40AQ008-01

Cell model:18650/3350mAh/3.6V/35E

Battery specification: 18650-1S2P/6700mAh/3.6V

Nominal voltage:3.6V

Nominal capacity:6700mAh

Charging voltage:4.2V

Charging current: 1340mA

Discharging current: 1340mA

Instant discharge current:6000mA

End-off voltage:3.0V

Internal resistance: ≤120mΩ

Battery weight: 120g

Product dimension:69*44*20.5mm

Charging temperature:0~45℃

Discharging temperature: -20~+55℃

Storage temperature: -20~+55℃

Battery case: plastic

Lithium ion battery protection: short circuit protection,overcharging protection, over-discharging protection, overcurrent protection, etc.

Product features

1. Plastic shell and ultrasonic welding.

2. One-to-one matching design with the host.
