Custom Lithium ion Battery Pack

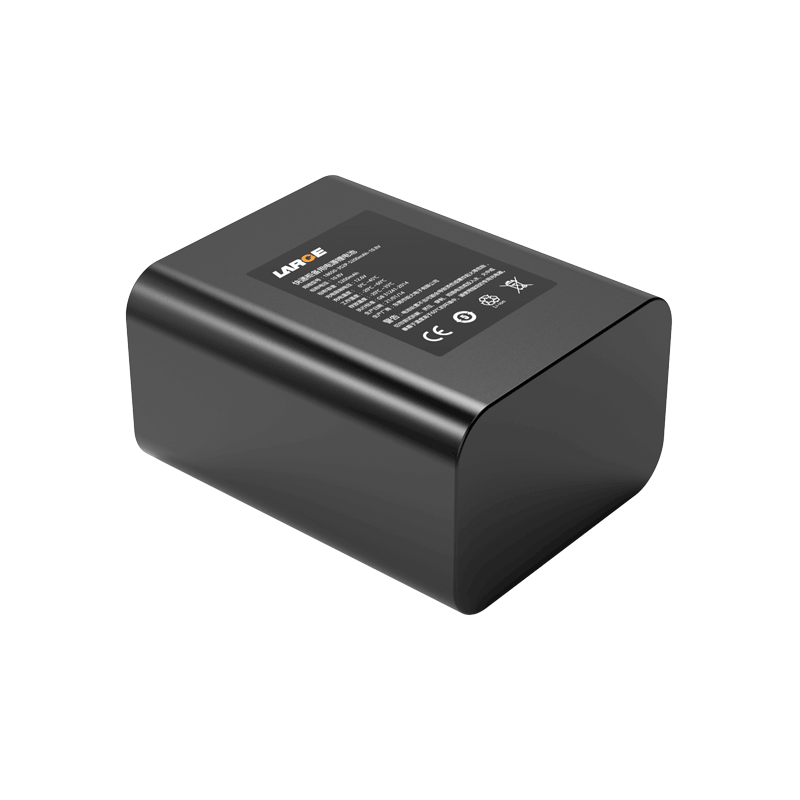

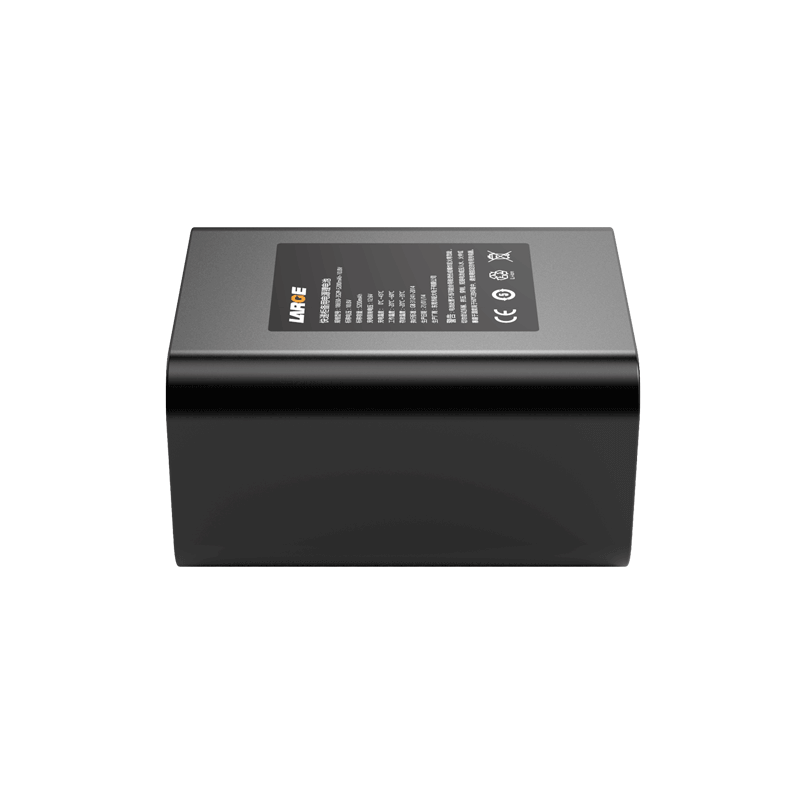

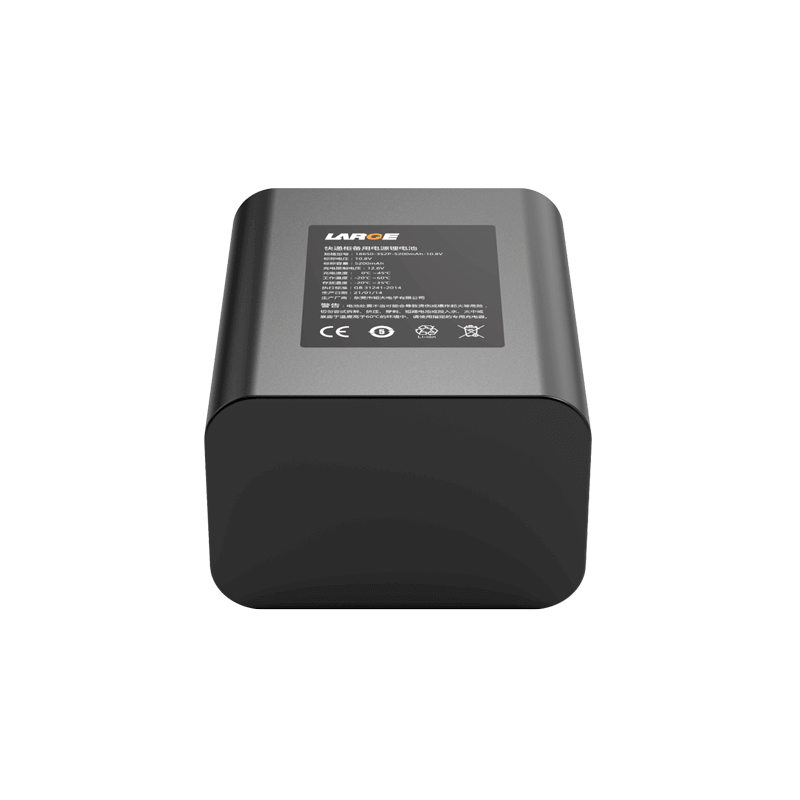

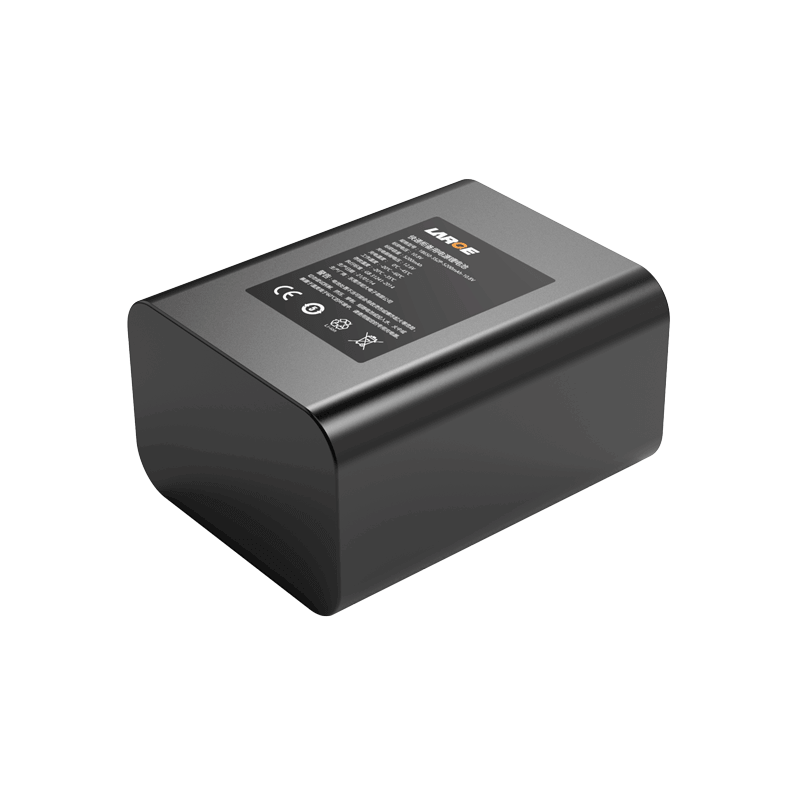

10.8V 5200mAh 18650 Battery BAK Battery for Delivery Lockers

Product Detail

Product number: 06DQ036-05

Cell model: 18650-2600MAH-3.6V

Battery specification: 18650-3S2P-5200MAH-10.8V

Product size: 71.5*57*38mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 5200mAh

Charging voltage: 12.6V

Charging current: ≤2.6A

Discharge current: ≤5.2A

Discharge cut-off voltage: 8.1V

Finished product internal resistance: ≤180mΩ

Battery Weight: 310g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery packaging: blue PVC heat shrinkable film packaging

Lithium-ion protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Delivery lockers, HIVE BOX standby power supply



Product features

Blue PVC heat shrinkable film encapsulation is simple,reliable, and easy to install.

Connector plug outlet: Use MOLEX plug output mode increases the electrical reliability of the plug;

Battery protection management: Use special lithium battery protection chip with good stability, high precision monitoring, precise control to eliminate safety risks.

The battery pack has good safety, nice discharge performance and long cycle life;

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
