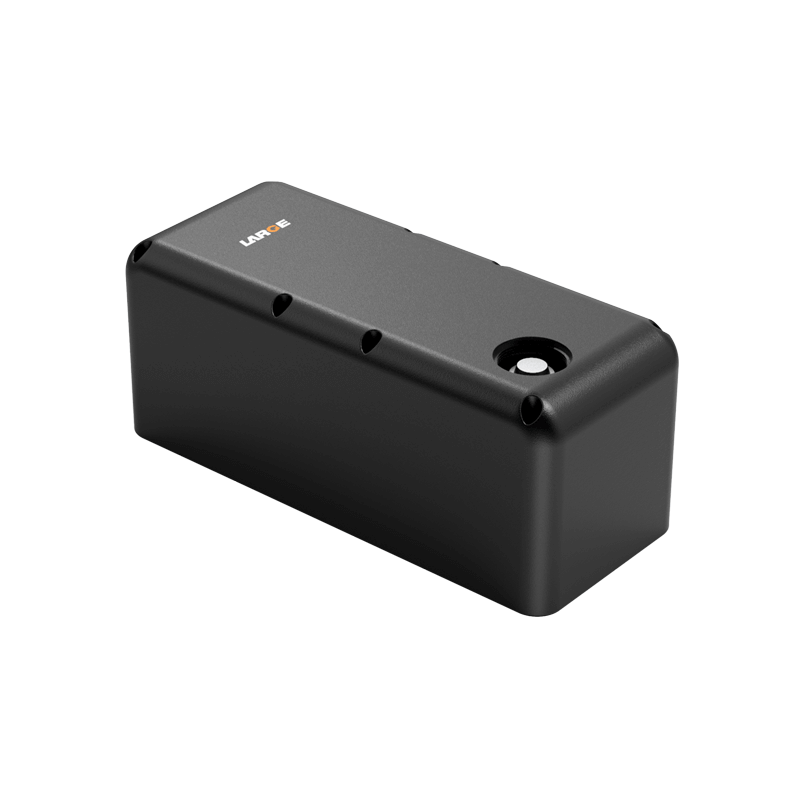

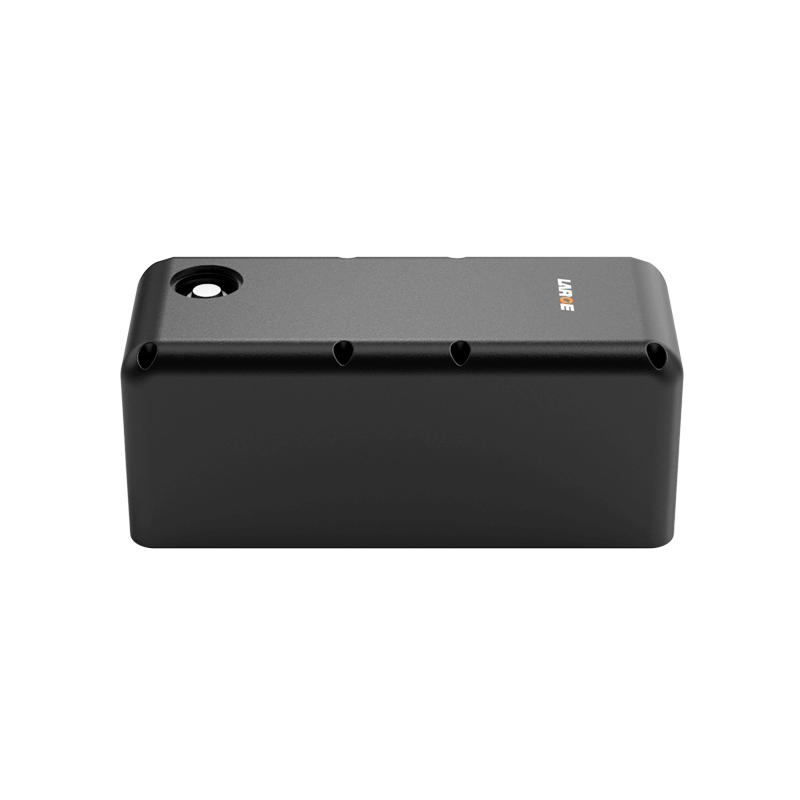

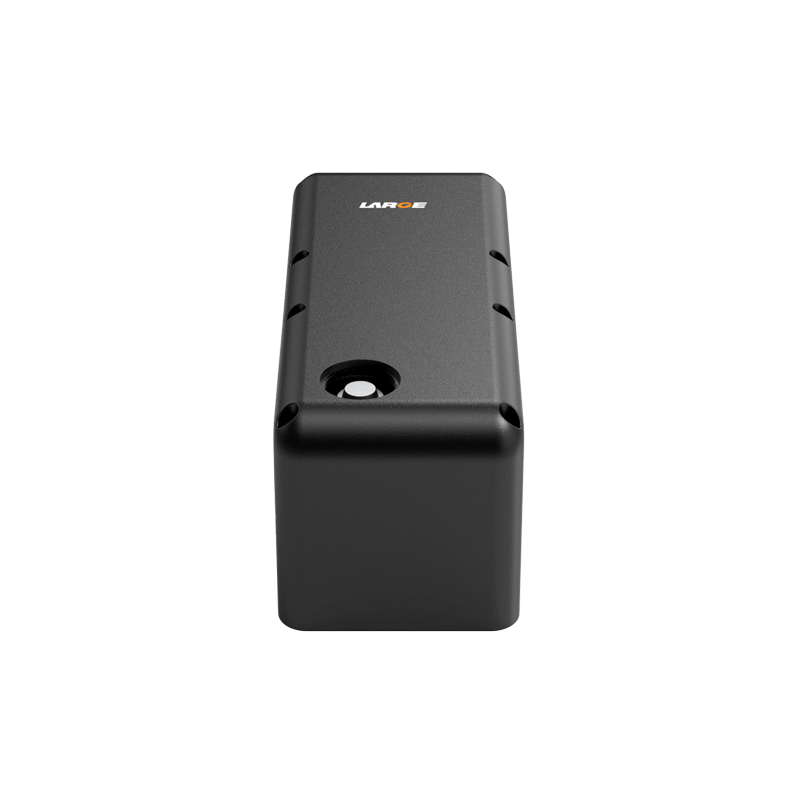

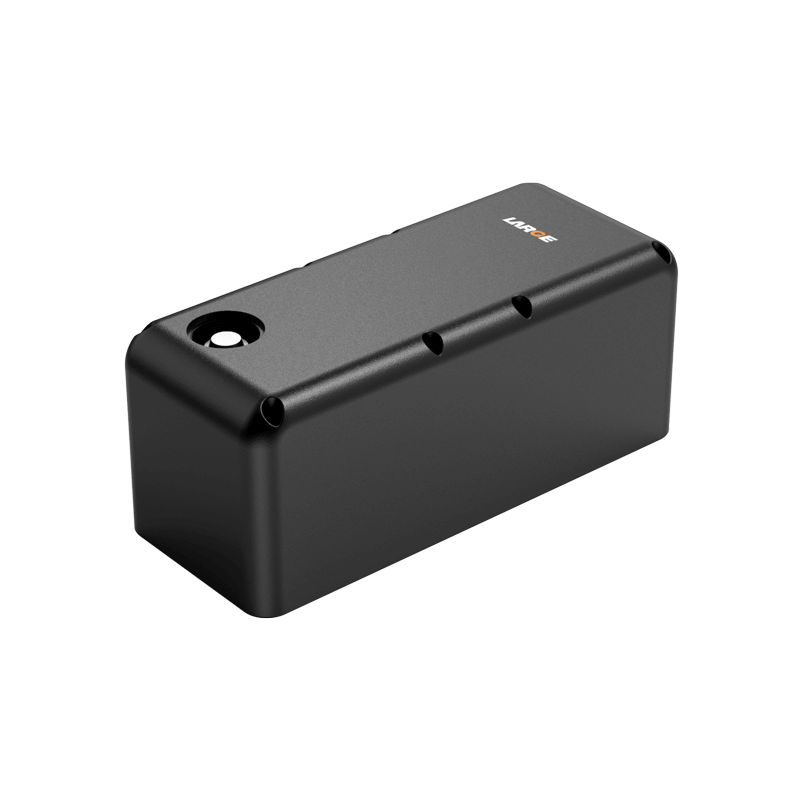

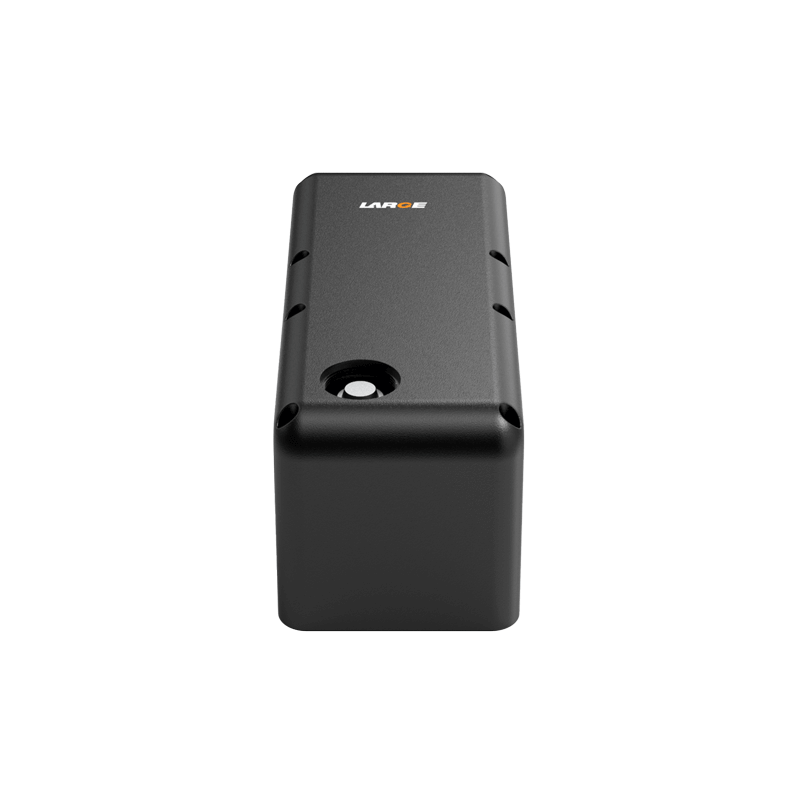

18650 10.8V 20Ah Samsung Battery for Instrument

Product number: 00AQ-C726S-03

Cell model: INR18650/3350mah /3.6V

Specification: 18650/3S7P/10.8V/20Ah

Product size: 195±0.2mm×80±0.2mm×85±0.2mm

Nominal voltage: 10.8V

Nominal capacity: 20Ah

Charging voltage: 12.6V

Charging current: ≤10A

Discharge current: ≤10A

Discharge cut-off voltage: 9V

Finished product internal resistance: ≤120mΩ

Battery weight: ≤ 1850G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20°C ~+55 °C

Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+20℃ (less than 6 months)

Battery case: aluminum/black/matte

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Equipment

Product Features

1.Aluminium alloy shell

2.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt well-known protection chips with good stability, high precision monitoring and precise control, to minimize safety risks.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
