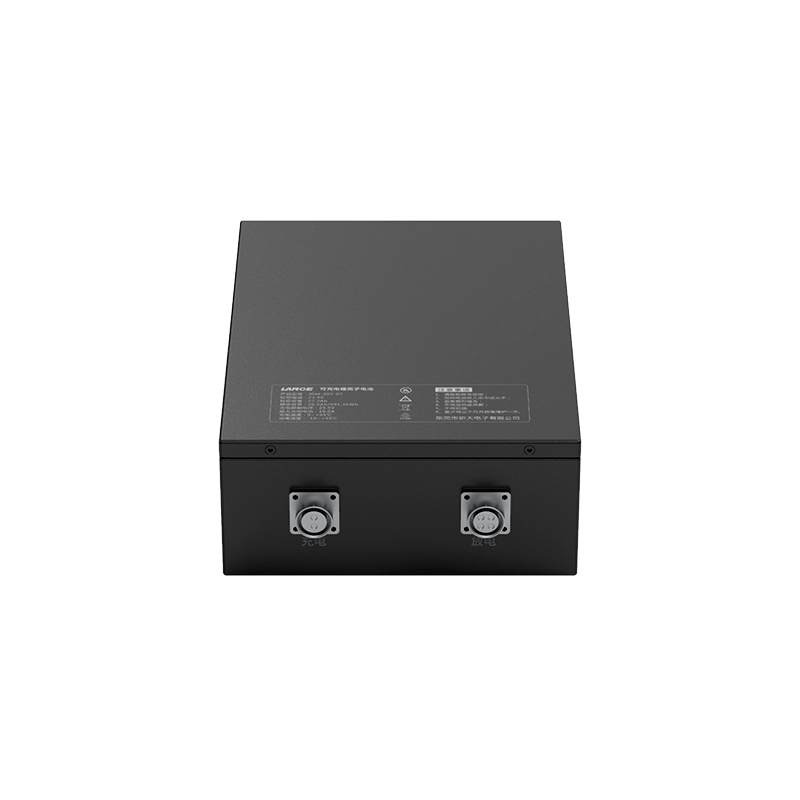

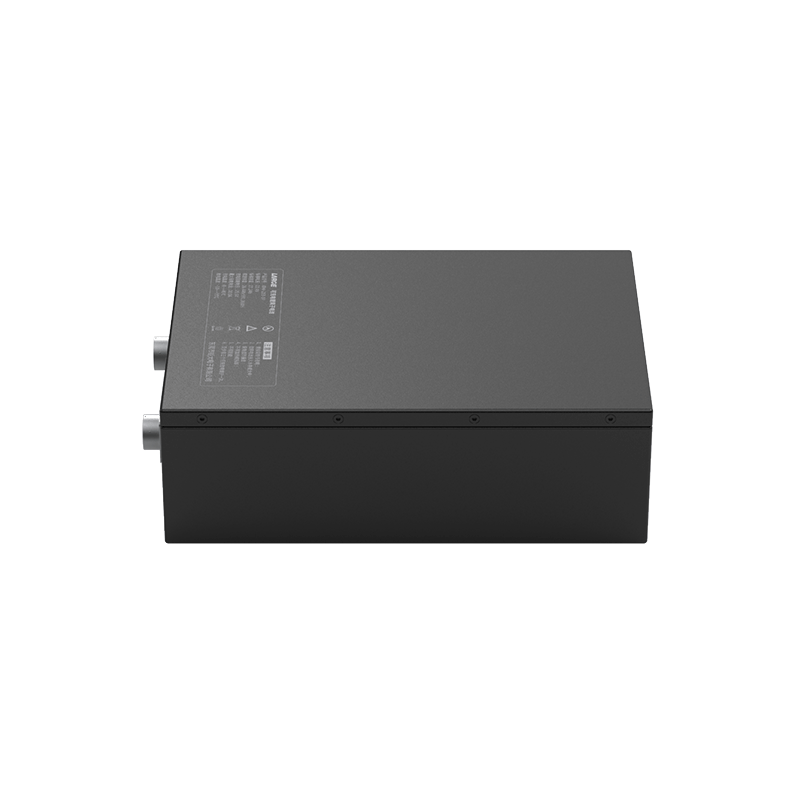

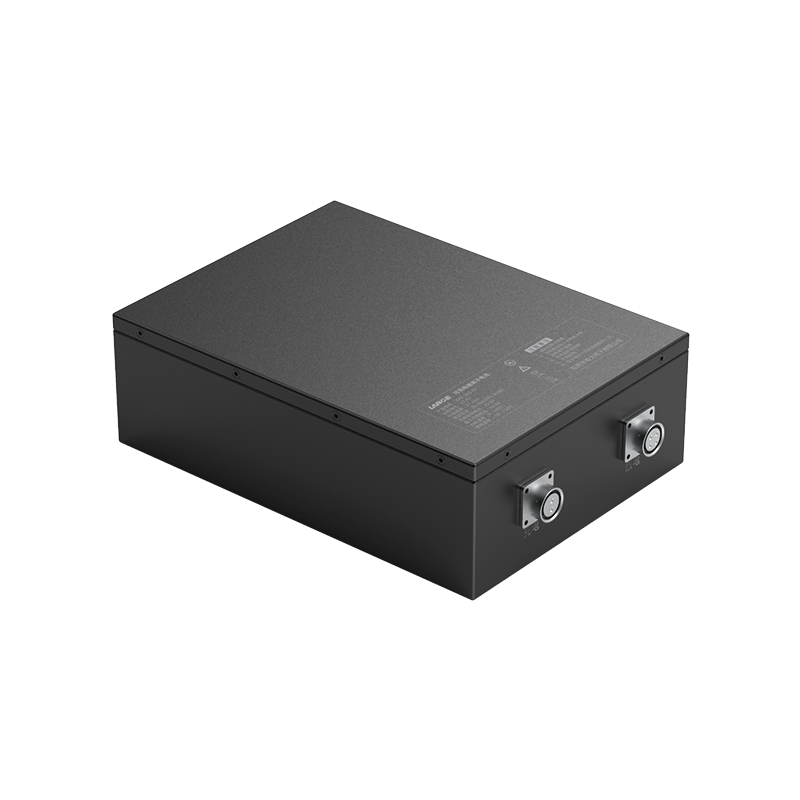

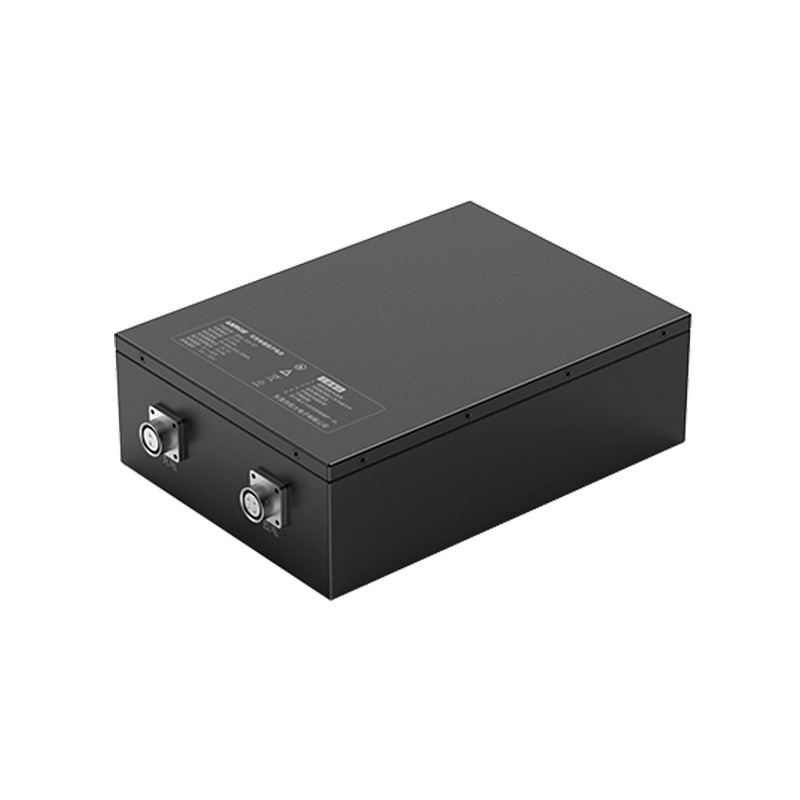

26650 22.4V 27.2Ah LiFePO4 Battery for Robot

26650 22.4V 27.2Ah LiFePO4 Battery for Robot
26650 22.4V 27.2Ah LiFePO4 Battery for Robot
26650 22.4V 27.2Ah LiFePO4 Battery for Robot
26650 22.4V 27.2Ah LiFePO4 Battery for Robot

Product Detail

Product number: 36AQ203-07

Cell model: 26650-3400mah

Battery specification: 26650-7S8P-27.2 AH-22.4V

Nominal voltage: 22.4V

Nominal capacity: 27.2Ah

Charging voltage: 25.5V

Charging current: ≤10.0A

Discharge current: 10.0A

Instantaneous discharge current: 20.0A

Discharge cut-off voltage: 14.0V

Product internal resistance: ≤200m?

Battery weight: 7.5kg

Product size: 290*210*94mm

Charging temperature: 0 ~ +45℃

Discharge temperature: -10 ~ +55℃

Storage temperature: -20 to 35 ° C

Battery case: Sheet metal

Communication mode: RS485

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.

Application: robot, AGV

*
*
*
