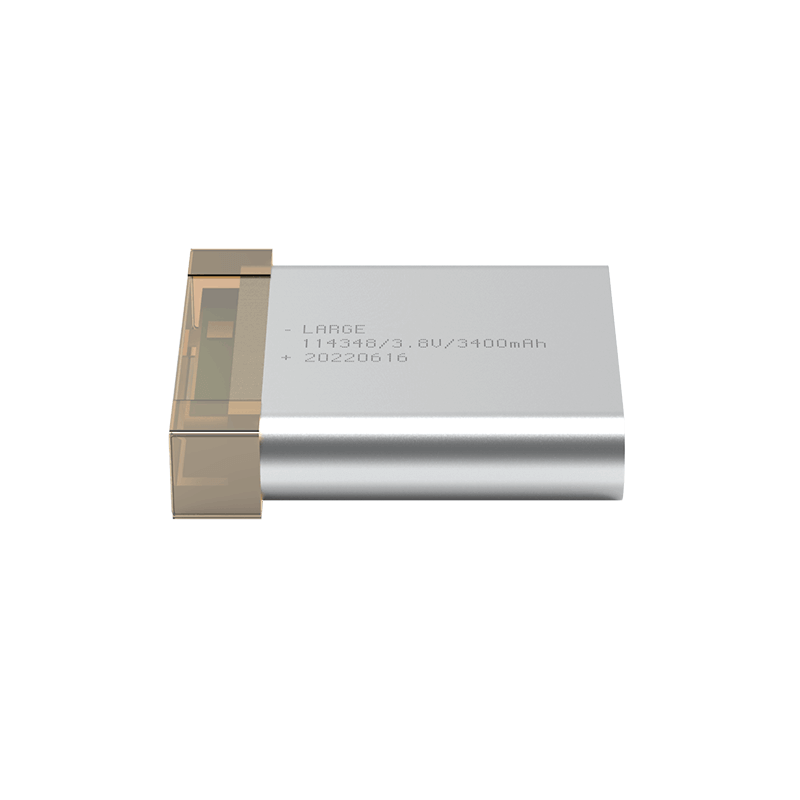

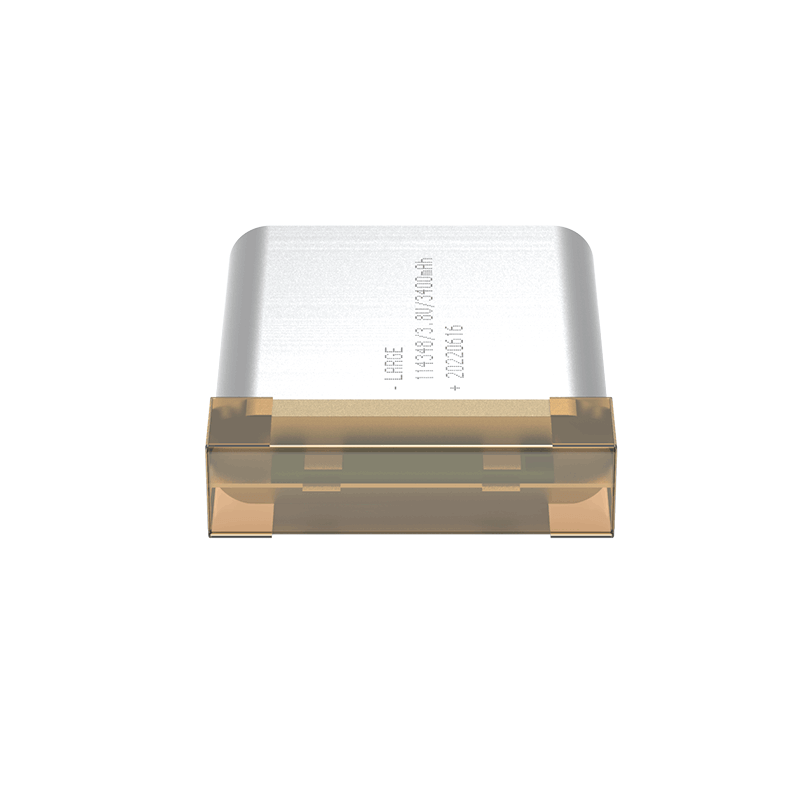

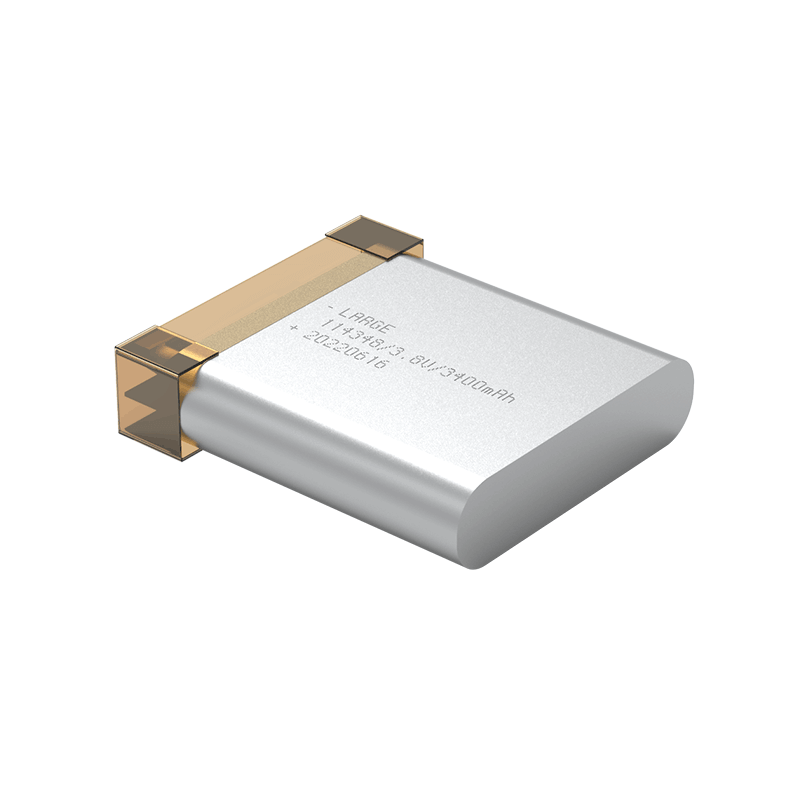

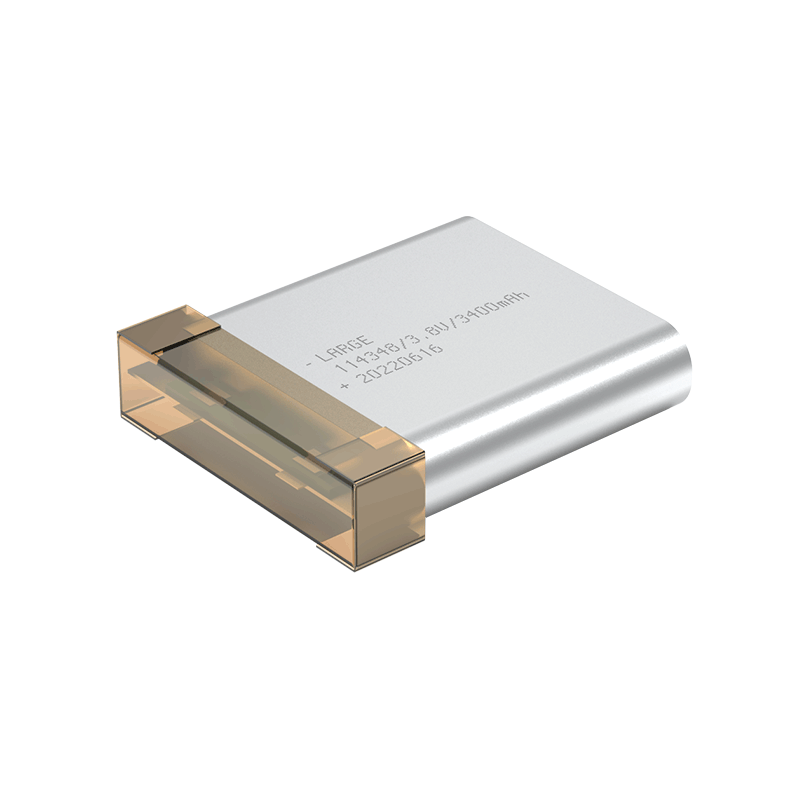

114348 3.8V 3400mAh Lithium Polymer Battery for Multifunctional Camera Lighting Device

Product number: 04BQ118-31

Cell model: 114348-3400mAh-3.8V

Battery specification: 114348-1S1P-3400mAh-3.8V

Product size: 50*43.5*12mm

Nominal voltage: 3.8V

Nominal capacity: 3400mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 4.35V

Charging current: ≤1.6A

Discharge current: ≤1.6A

Discharge cut-off voltage: 3.0V

Battery weight: 50g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: blue PVC heat shrinkable film

Output mode: Archie special connector

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection and so on

Application: Multifunctional camera lighting device, portable lighting device, mobile lighting device
