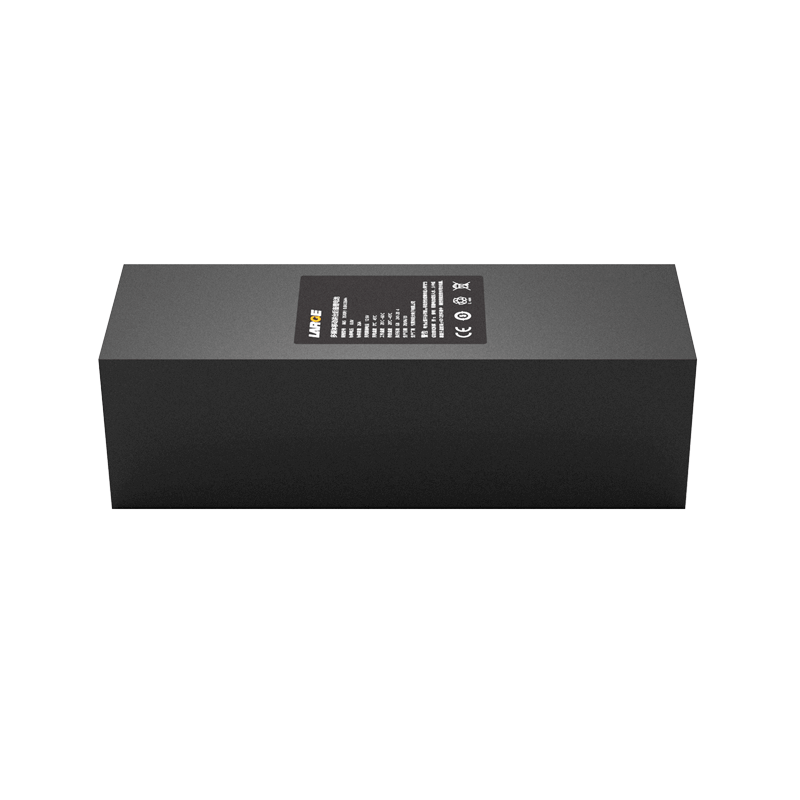

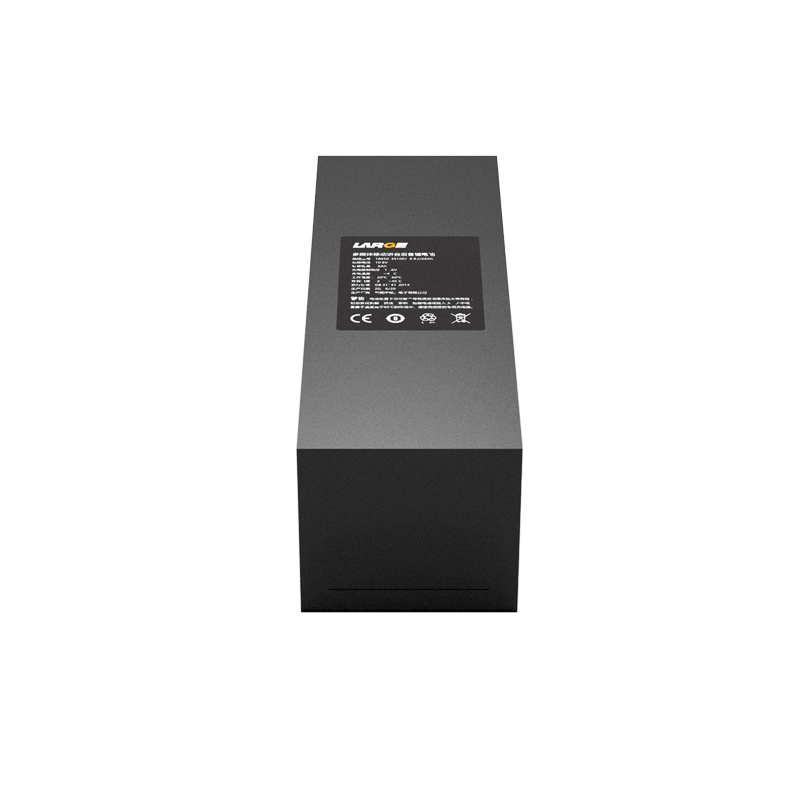

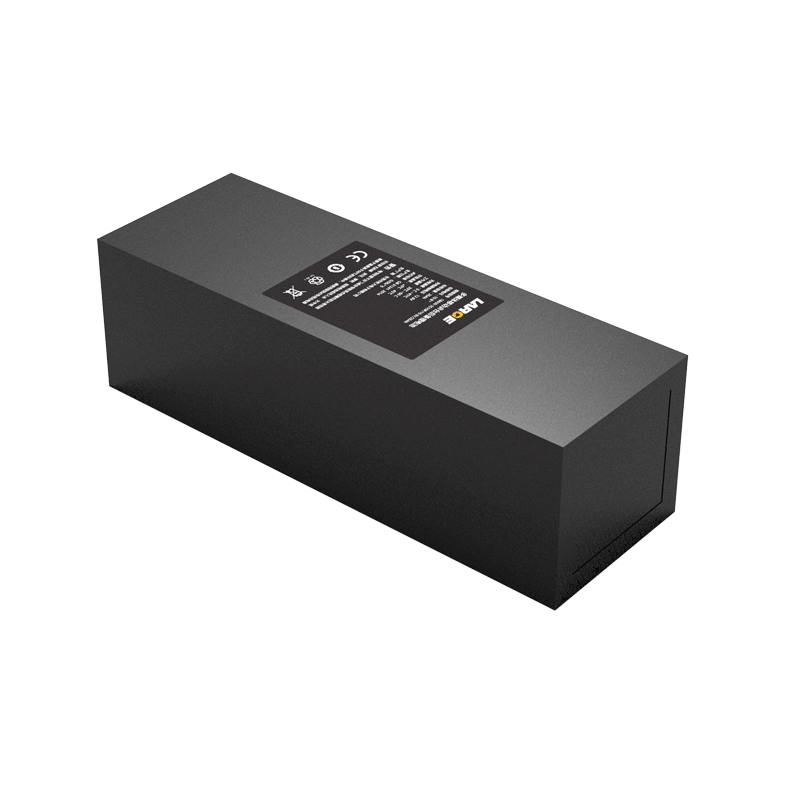

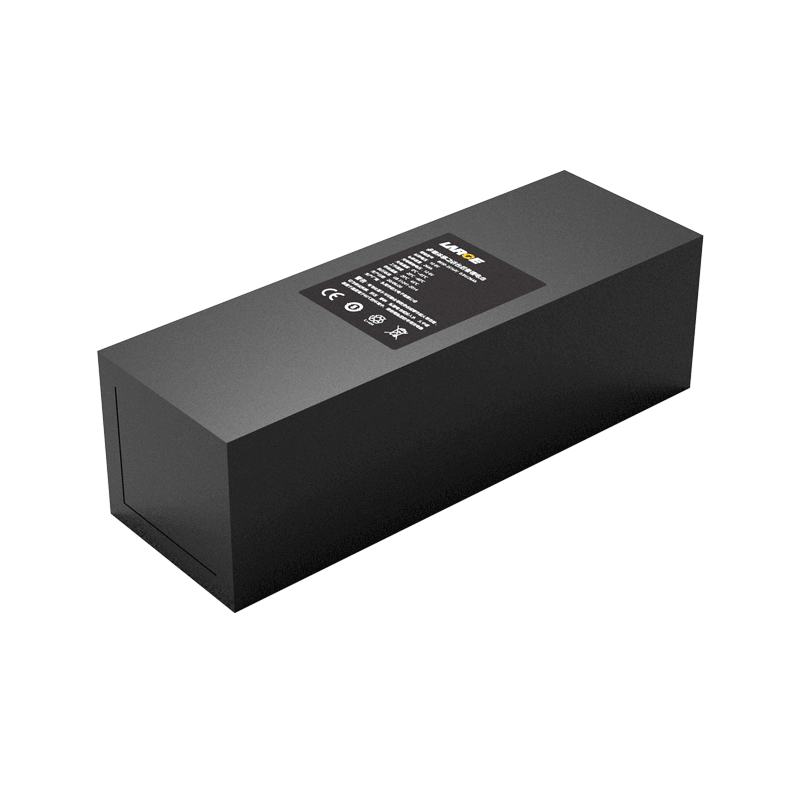

18650 10.8V 26Ah Lishen Battery Ternary Battery for Multimedia Mobile Platform

Product Detail

Project number : 37DZ066-01

Cell model: 18650/3.6V/ 2.6AH

Battery specification: 18650-3S10P/10.8V/26Ah

Nominal voltage: 10.8V

Nominal capacity: 26Ah

Charging voltage: 12.6V

Charging current: ≤ 5.2A

Discharge current: 5.2A

Instantaneous discharge current: 9-17A

Discharge cut-off voltage: 8.1V

Finished product internal resistance: 150 mΩ or less

Battery weight: 1300G

Product dimension: 65.79*72*215 mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: PVC

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Multimedia mobile platform battery



Product features

1.Low power consumption;

2.The battery pack has good safety and long cycle life;

3.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
