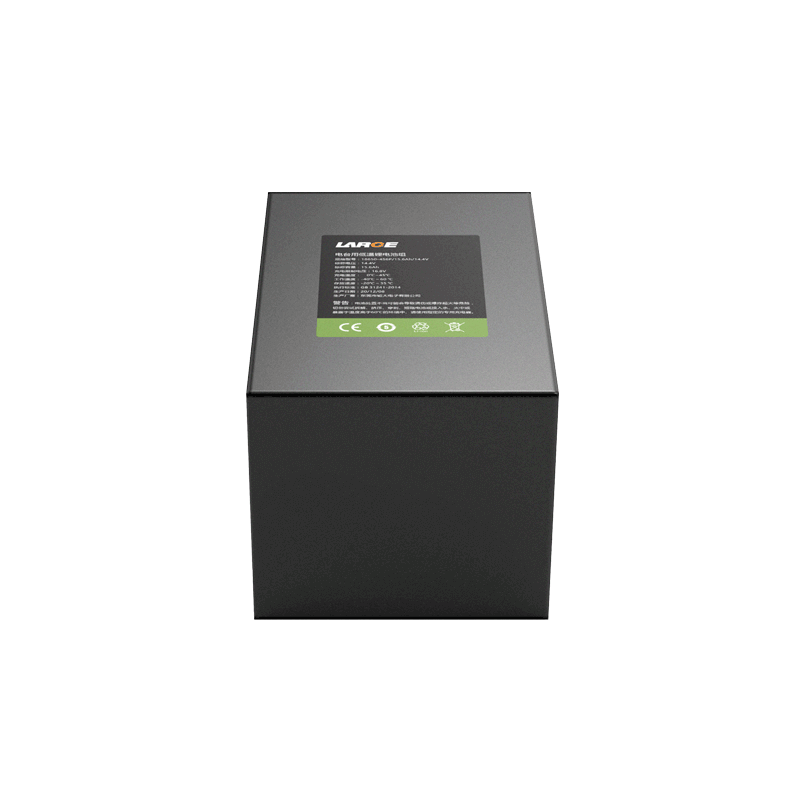

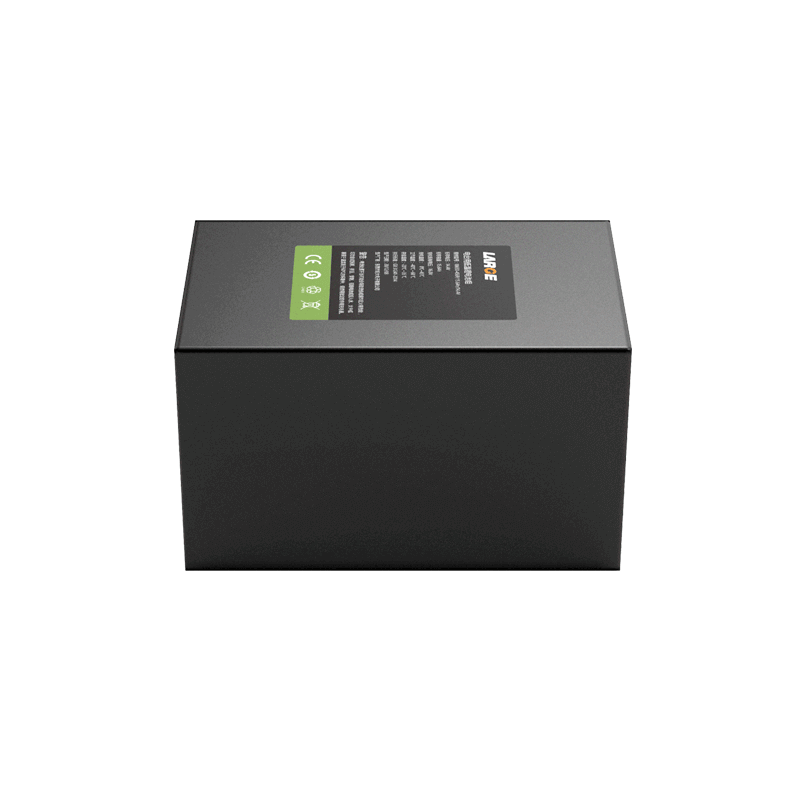

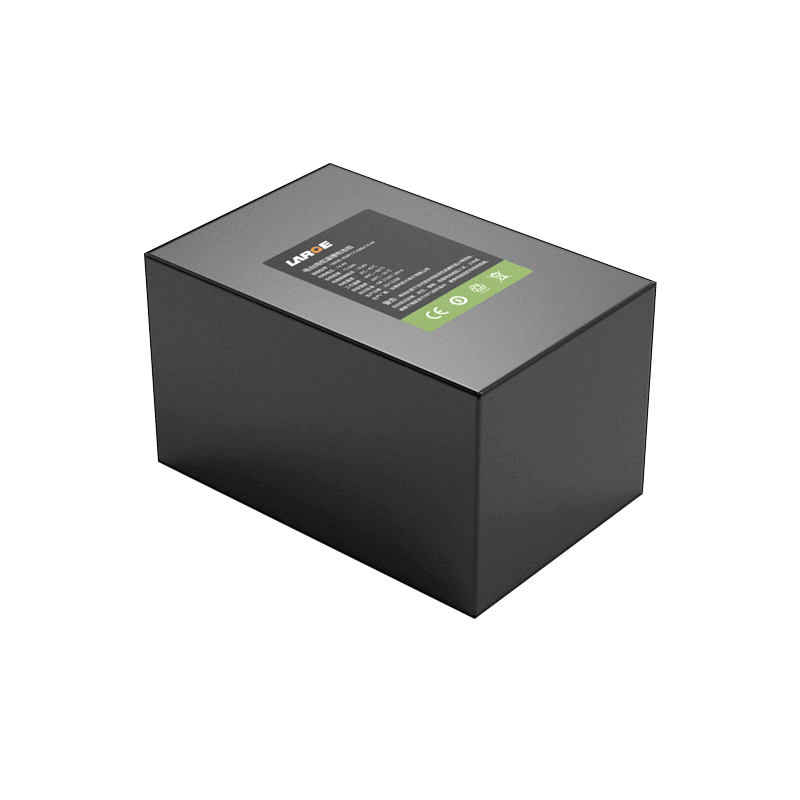

Custom Lithium ion Battery Pack

18650 14.4V 15.6Ah Low Temperature Battery for Radio

Product Detail

Product number: 02DQ0127-04

Cell model:18650/2600mAh/3.6V

Battery specification: 18650-4S6P/15.6Ah/14.4V

Nominal voltage:14.4V

Nominal capacity:15.6Ah

Charging voltage: 16.8V

Charging current: 5.0A

Instant discharging current: 10.0A

End-off voltage: 10.0V

Internal resistance: ≤100mΩ

Battery weight: 1200g

Product dimension: 70*80*126mm

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -20~35℃

Intelligent lithium ion battery protection: power management, short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field:radio

*
*
*
