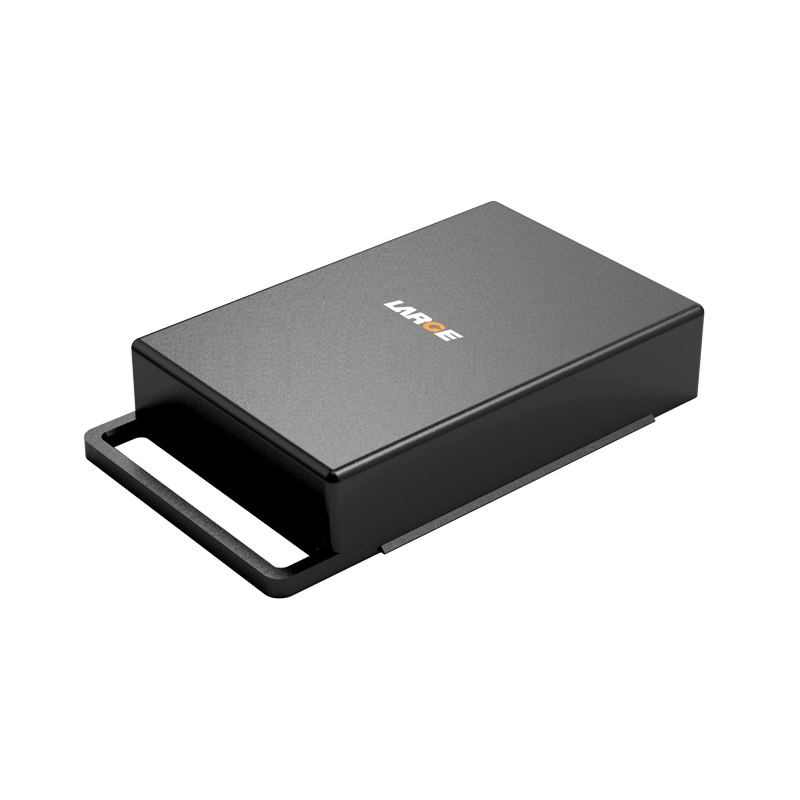

Custom Lithium ion Battery Pack

18650 7.2V 10000mAh Samsung Battery for Spectrometer

Product Detail

Product number: 40AQ006-01

Cell model:18650/3350mAh/3.6V/35E

Battery specification: 18650-2S3P/10000mAh/7.2V

Nominal voltage:7.2V

Nominal capacity:10000mAh

Charging voltage:8.4V

Charging current: 3A

Discharging current: 2A

Instant discharge current:5A

End-off voltage:6.0V

Internal resistance: ≤160mΩ

Battery weight: 400g(without case)

Product dimension:155*93*30mm(case)

Charging temperature:0~+45℃

Discharging temperature: -20~+55℃

Storage temperature: -20~+55℃

Battery case: PVC(Aluminum alloy housing provided by customer)

Lithium ion battery protection: short circuit protection,overcharging protection, over-discharging protection, overcurrent protection, etc.



Product features

1. Adopt SMBUS communication protocol, which can read the battery voltage, current, capacity, temperature and other information.

2. Metal case and One-to-one matching design with the host.

3.IP65 waterproof design

*
*
*
