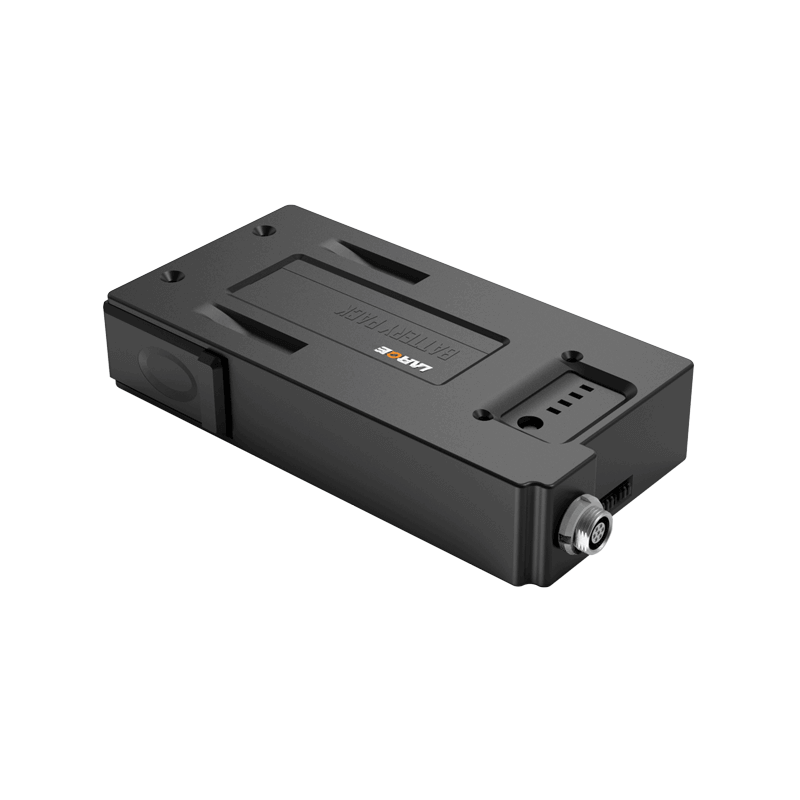

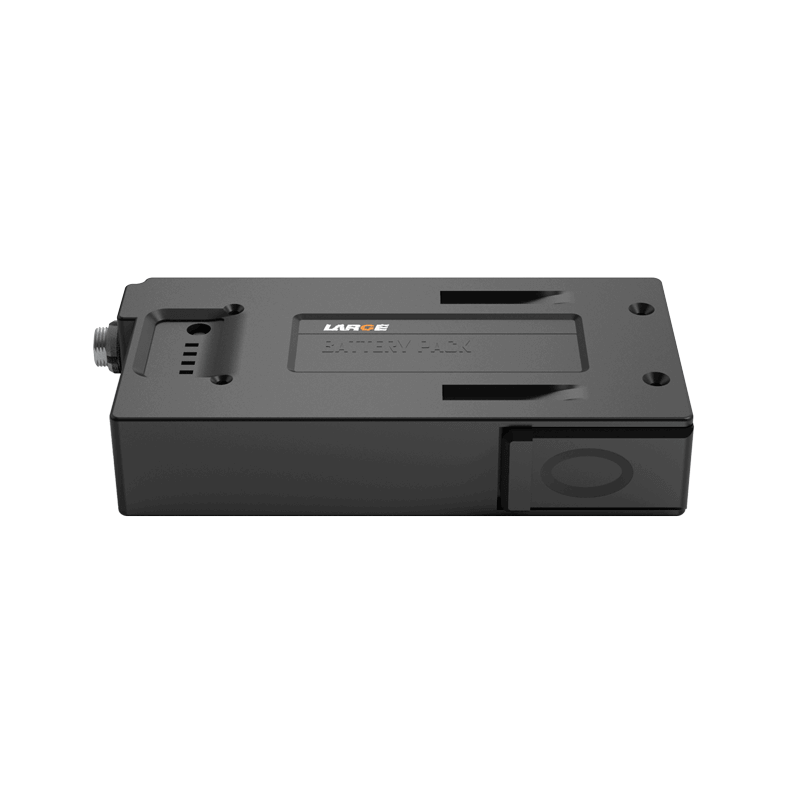

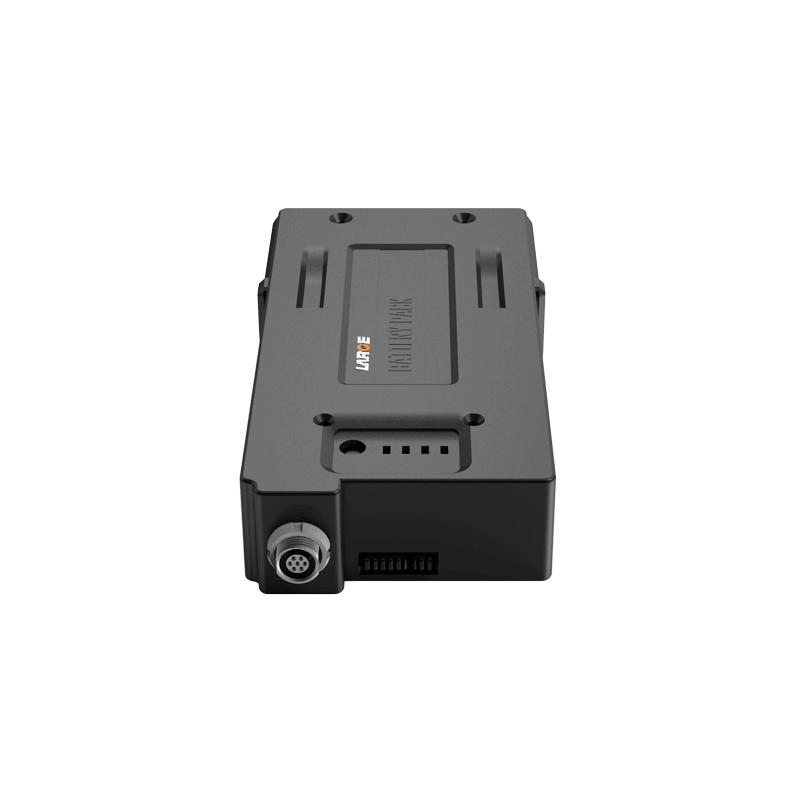

18650 21.6V 3350mAh Samsung Battery for Heart Assist Device

Product Detail

Product number: 06DQ058-01

Cell model: 18650-3350MAH-3.6V

Battery specification: 18650-6S1P-3350MAH-21.6V

Product dimension: 161.2*80*32mm (Max)

Nominal voltage: 21.6V

Nominal capacity: 3350mAh

Internal resistance of finished product: ≤200mΩ

Charging voltage: 25.2V

Charging current: ≤1.6A

Discharge current: ≤4.0A

Discharge cut-off voltage: 16.5V

Battery weight: 400g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery packaging: engineering plastic ABS+PC

Battery case: ABS+PC case

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Portable B ultrasound, medical auxiliary equipment, portable medical equipment

Product features

1.ABS+PC shell and aluminum alloy shell increase the reliability and immobility of the battery.

2.Hardware output: Gold-plated shrapnel output modeis used to increase the reliability of electrical conductivity;

3.Data communication management: Adopt TI-SMBUS software management chip, SMBUS communication accurate data transmission, precise temperature control to eliminate security risks.

4.The battery has LED power display function.

5.The battery pack has good safety, nice discharge performance and long cycle life;

6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
