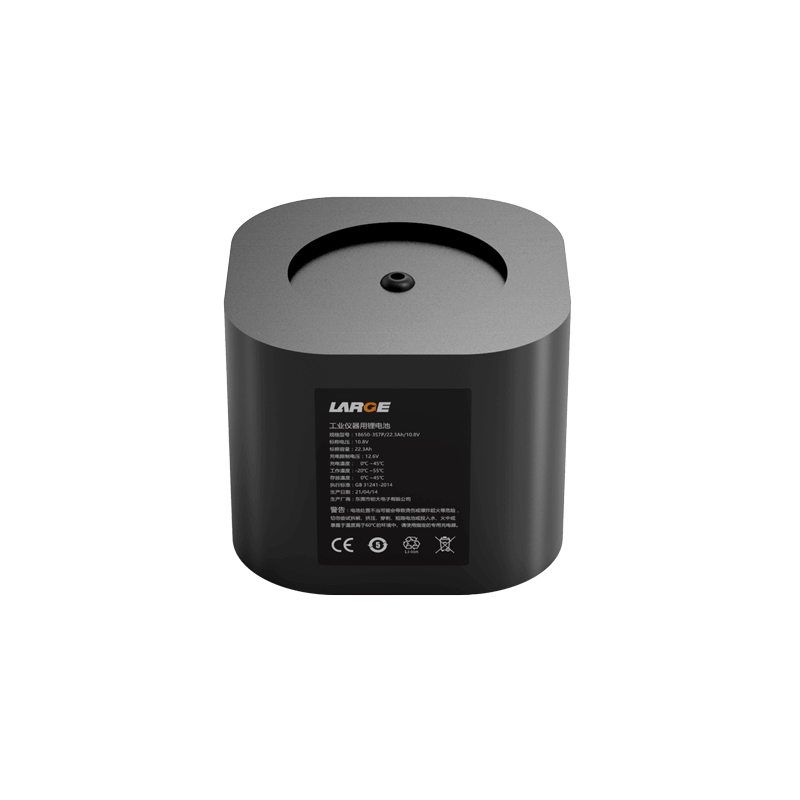

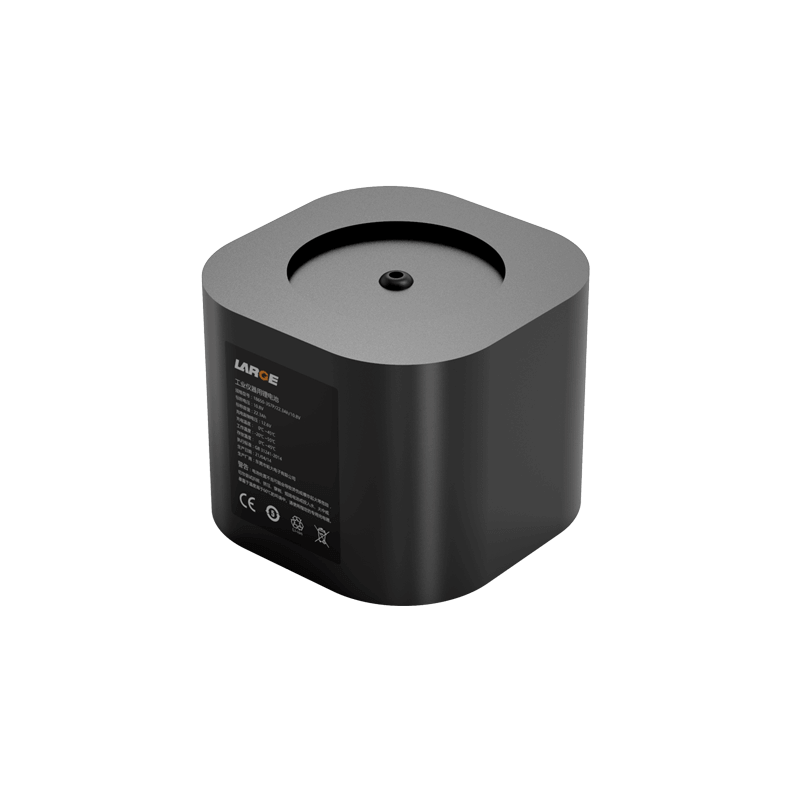

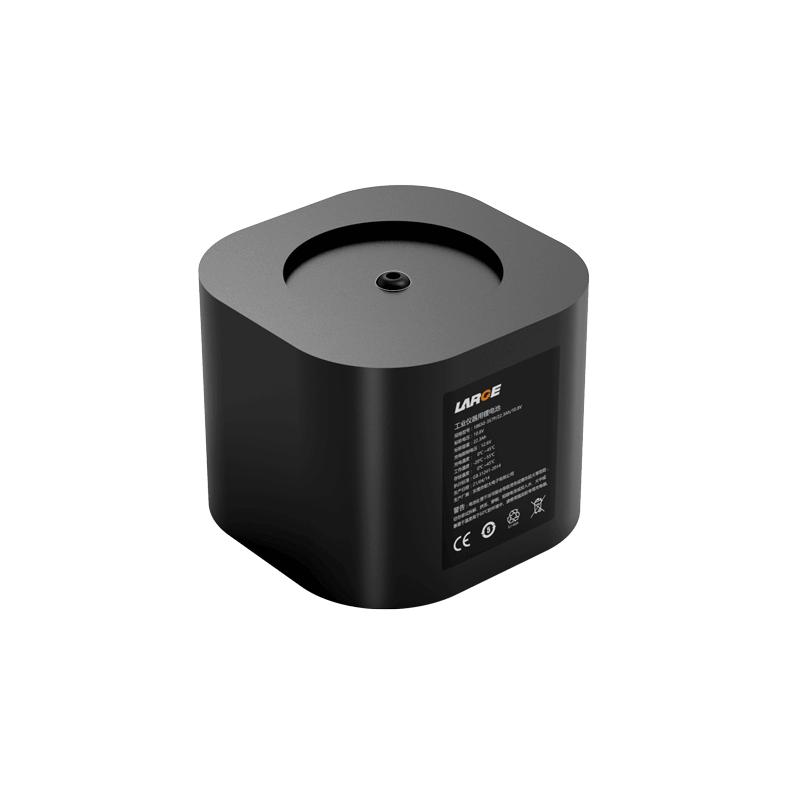

18650 10.8V 22.3Ah Lithium Ion Battery for Industrial Equipment

Product Detail

Product number: 36AQ572-01

Cell model: N18650CP/3350mAh/3.6V

Battery specification: 18650-3S7P/ 22.3AH /10.8V

Nominal voltage: 10.8V

Nominal capacity: 22.3Ah

Charging voltage: 12.6V

Charging current: 4A

Discharge current: 4A

Instant discharge current: 10A

Discharge cut-off voltage: 8.4V

Finished product internal resistance: ≤300mΩ

Battery weight: 1300g

Product dimension: 100*100*75mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ +55℃

Storage temperature: 0 ~ +45℃

Battery case: PVC

Lithium battery protection: conventional protection +SMBUS communication function


Product features

1.Data communication management: Use TI software management chip, accurate data transmission, accurate temperature control to eliminate security risks;

2.The battery pack has nice safety, good performance, and is close to the compact cylindrical structure design;

3.It can accurately monitor the battery power.

*
*
*
