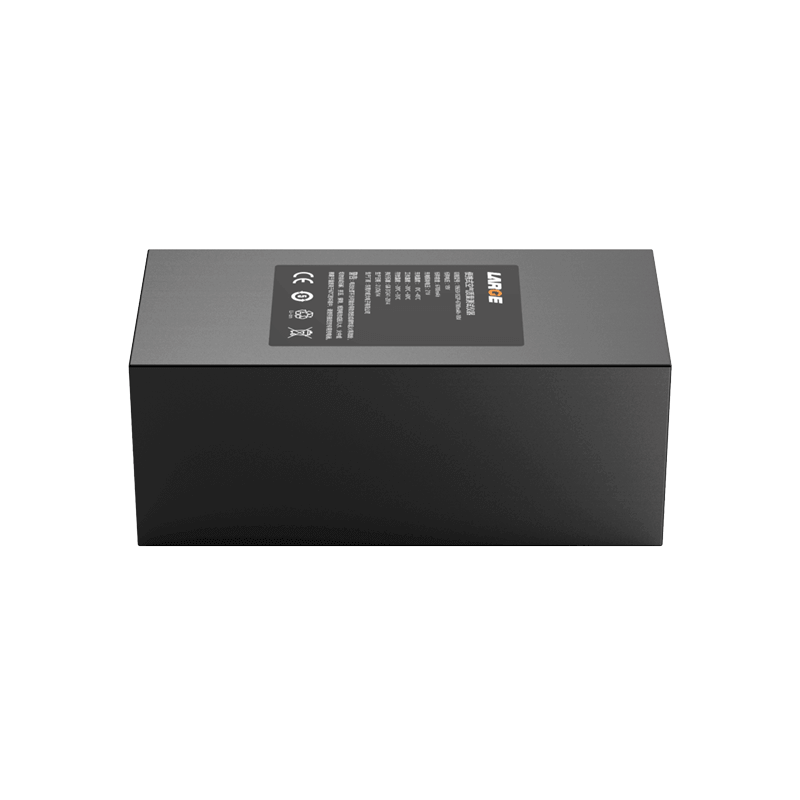

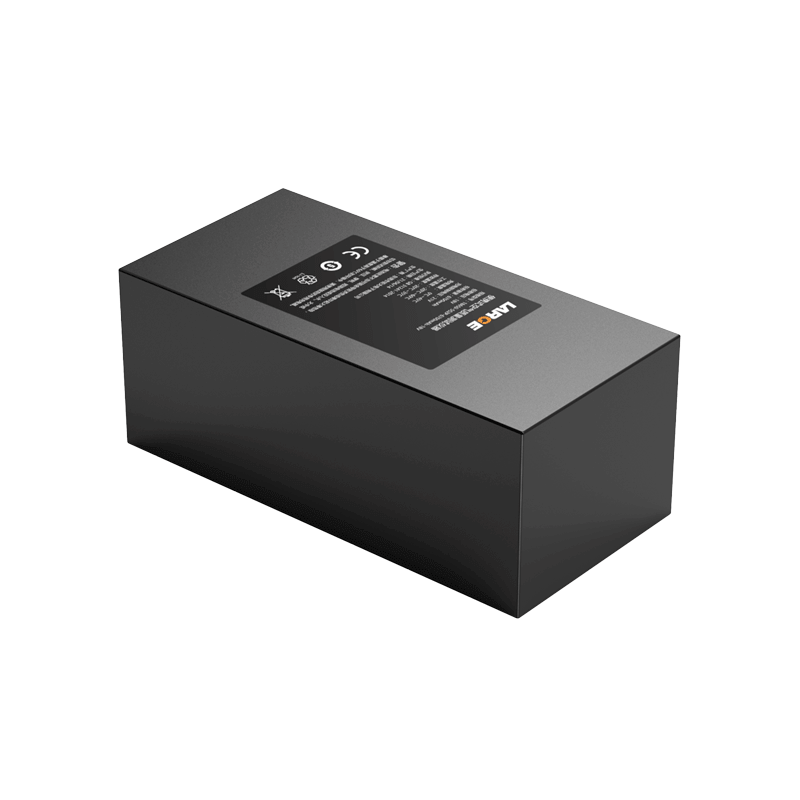

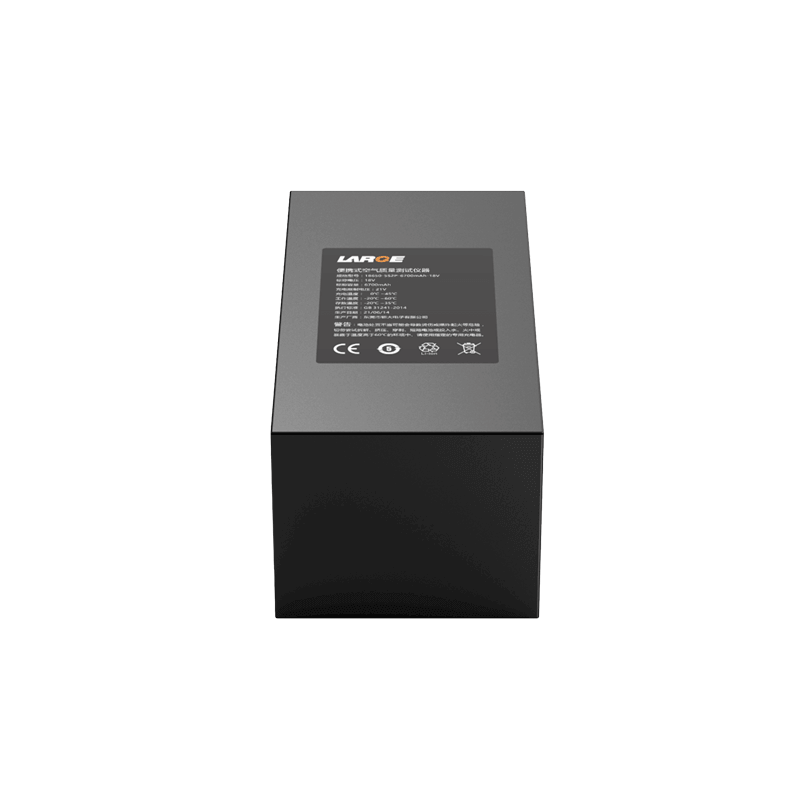

26650 12.8V 17Ah LiFePO4 Battery for Power Monitoring Equipment

26650 12.8V 17Ah LiFePO4 Battery for Power Monitoring Equipment
26650 12.8V 17Ah LiFePO4 Battery for Power Monitoring Equipment
26650 12.8V 17Ah LiFePO4 Battery for Power Monitoring Equipment
26650 12.8V 17Ah LiFePO4 Battery for Power Monitoring Equipment

Product Detail

Product number: 01DQ0132-02

Cell model: 26650-4000MAH-3.2V

Battery specification: 26650-4S5P-17AH-12.8V

Product dimension: 213*84*103mm (Max)

Nominal voltage: 12.8V

Nominal capacity: 17Ah

Charging voltage: 14.4V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 8.0V

Internal resistance of finished product: ≤50mΩ

Battery weight: 2600 GB

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: blue PVC heat shrinkable film

Output: Molex plug

Application: Power testing equipment, testing equipment

*
*
*
