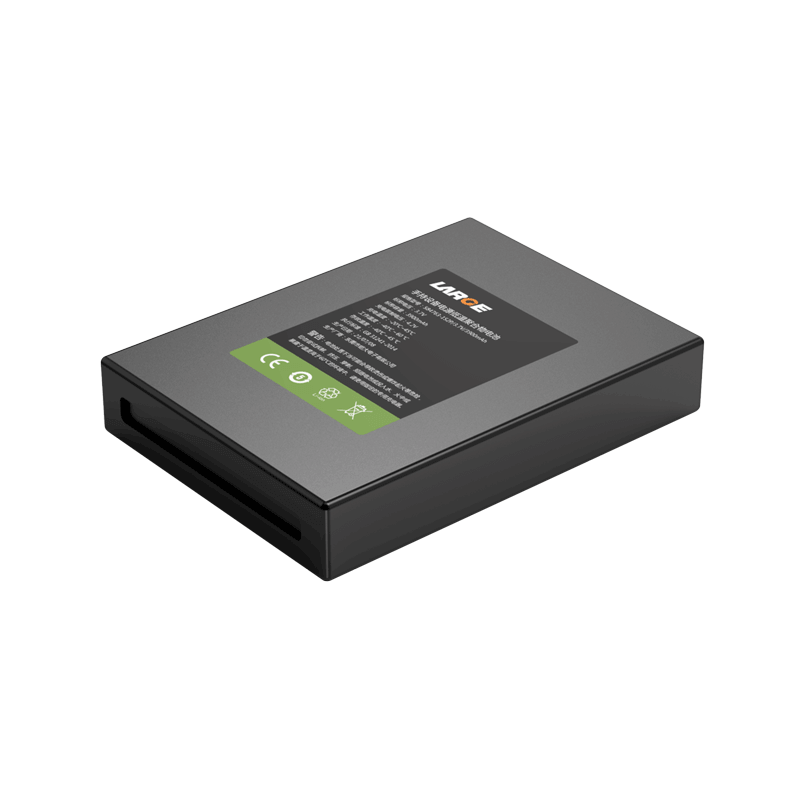

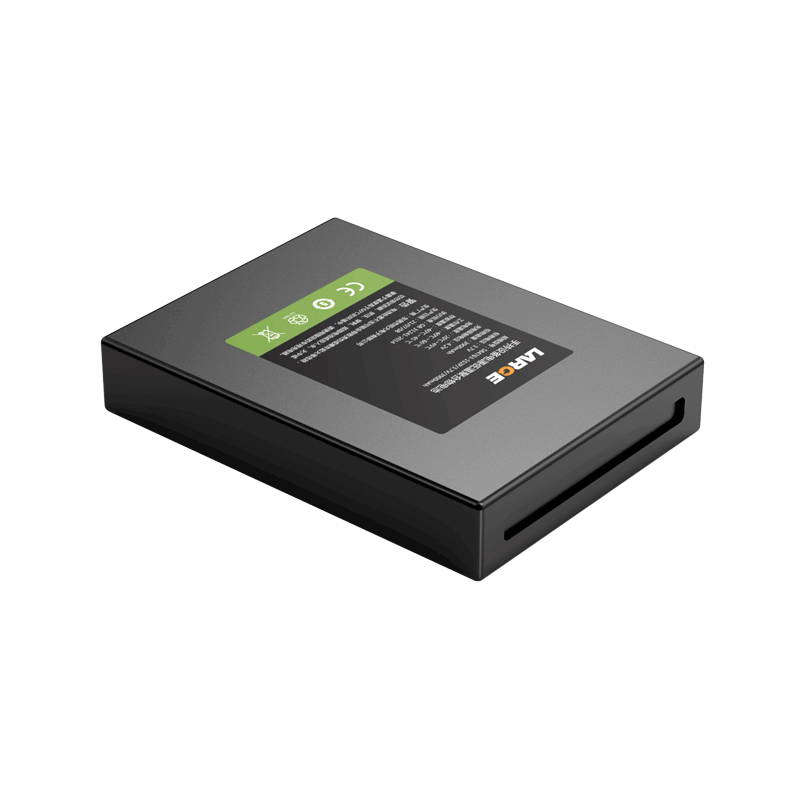

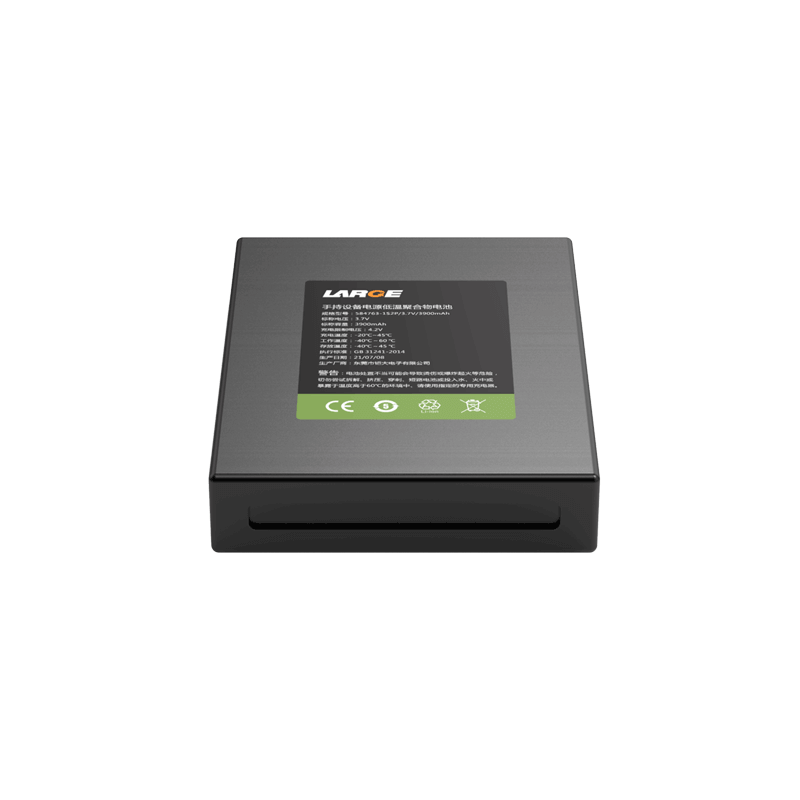

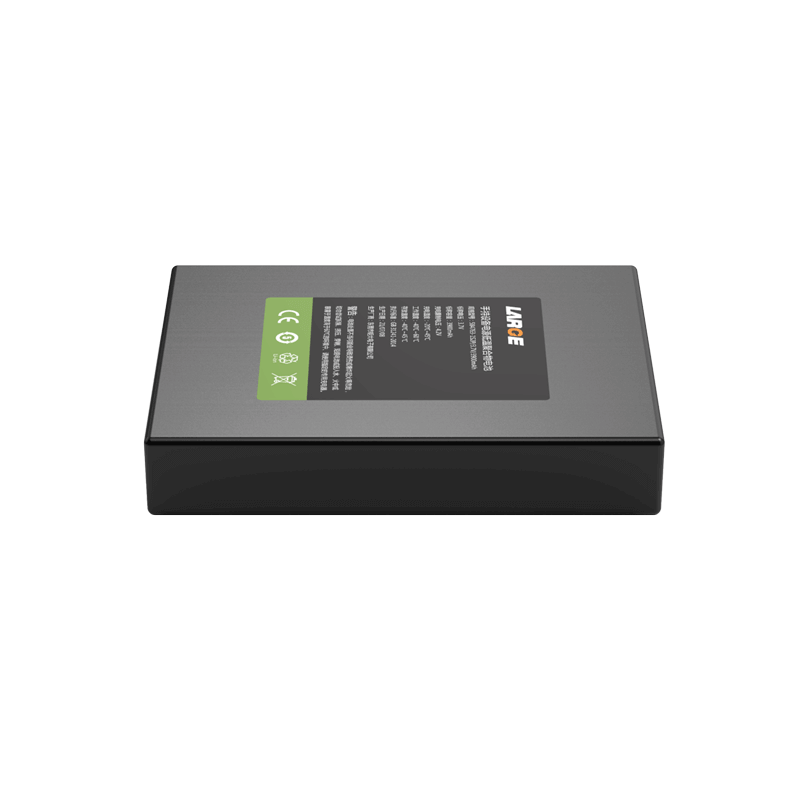

584763 3.7V 3900mAh 1S2P Low Temperature Battery for Handheld Device

Product Detail

Product number:33DZ030-02

Cell model: 584763/3.7V/1950mAh

Battery specification: 584763-1S2P/3.7V/3900mAh

Nominal voltage: 3.7V

Nominal capacity: 3900mAh

Charging voltage: 4.2V

Charging current: ≤1.9A

Discharge current: ≤1.9A

Instantaneous discharge current: 3-6A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤150mΩ

Battery weight: 89G

Product size: 12*50*68mm (Max)

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -40 ° C to 45 ° C

Battery shell: Polymer battery plus board out of the cable

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Power supply for handheld devices

*
*
*
