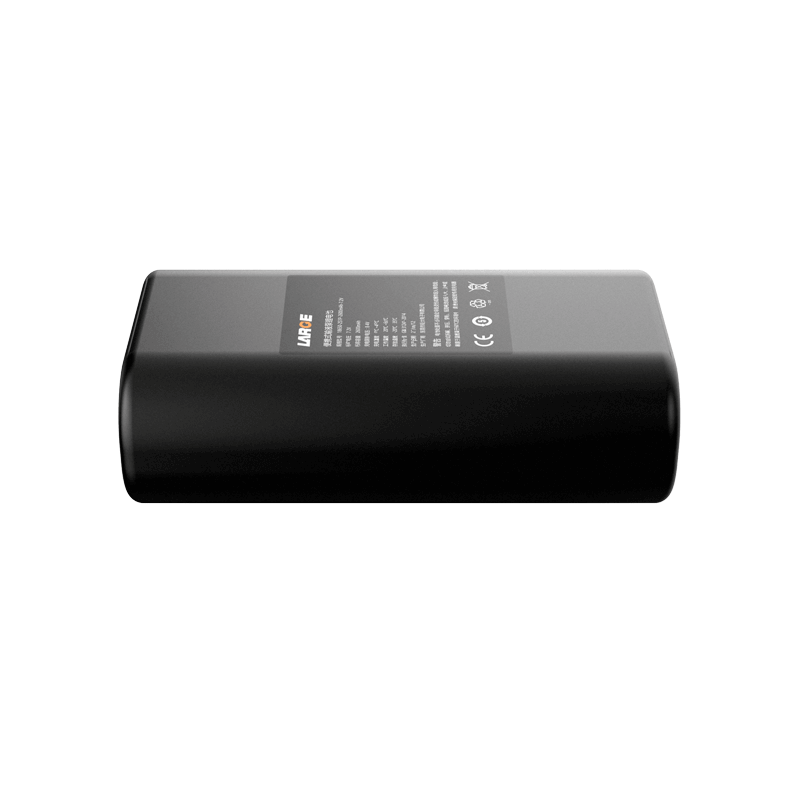

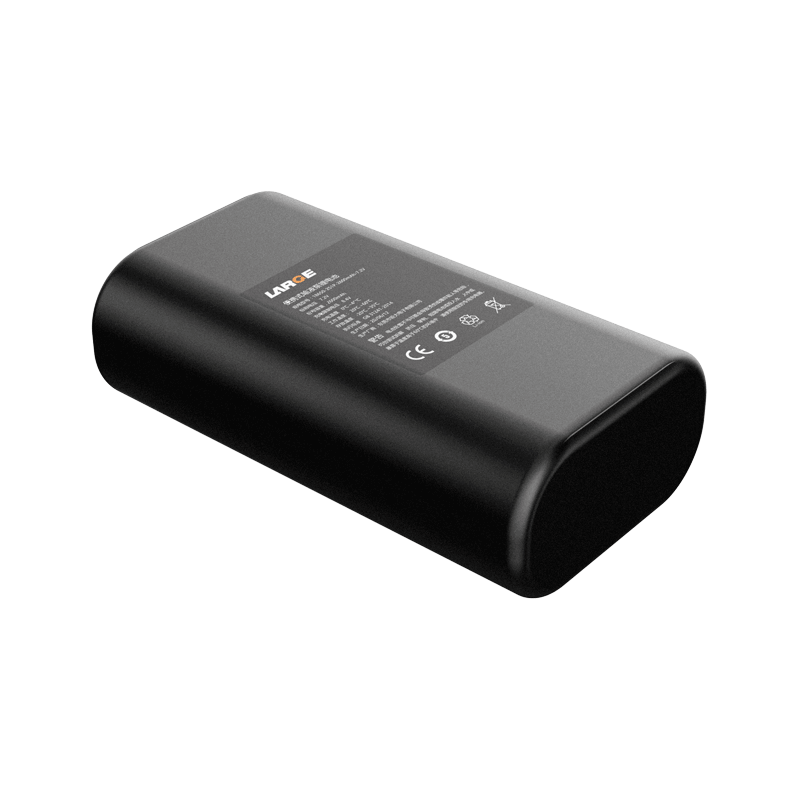

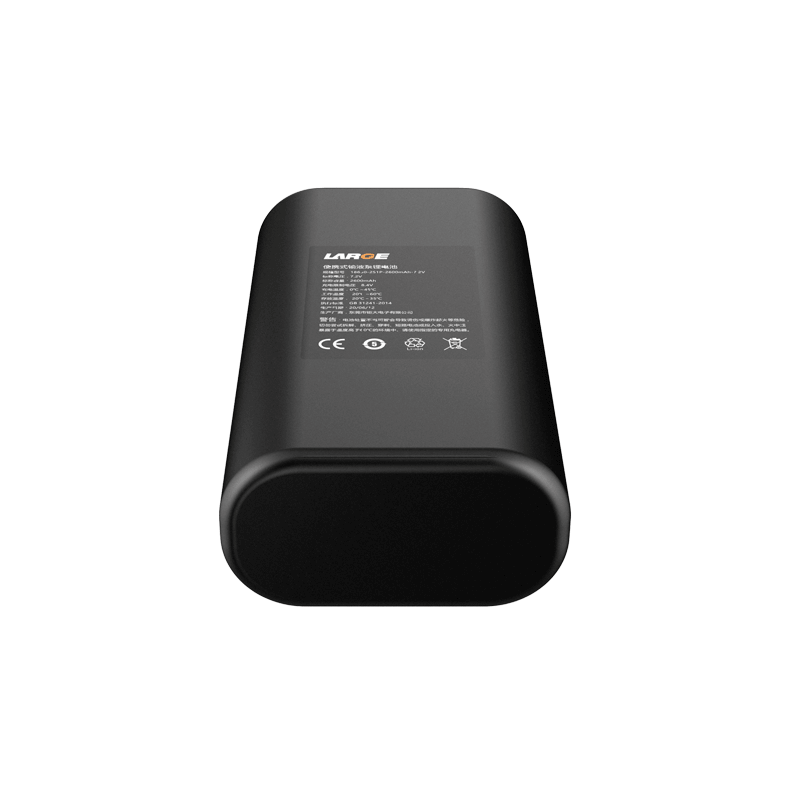

18650 7.2V 3350mAh Samsung Battery Ternary Battery for Medical Infusion Pump

Product Detail

Product number: 08AQ606-03T

Cell model: 18650-3350MAa-3.6V

Battery specification: 18650-2S1P-3350MAa-7.2V

Nominal voltage: 7.2V

Nominal capacity: 3350mAh

Charging voltage: 8.4V

Charging current: ≤1.65A

Discharge current: 0.67A

Instantaneous discharge current: 2.6A

Discharge cut-off voltage: 6.0

Finished product internal resistance: 230 mΩ or less

Battery weight: 100g

Product dimension: 68*38*21.5mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: no case, PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, secondary overvoltage protection, current insurance, etc.

Application: Portable infusion pump medical equipment, portable medical equipment



Product features

1.Blue PVC heat shrink film package is simple, reliable and easy to install.

2.Connector plug outlet: JST plug output mode is adopted to increase the conductive reliability of the plug;

3.Battery protection chip: Japanese seiko management chip has good stability, high precision, accurate voltage control, precise current monitoring control for maximum elimination of security risks.

4.Battery pack has nice safety, good discharge performance and long cycle life;

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
