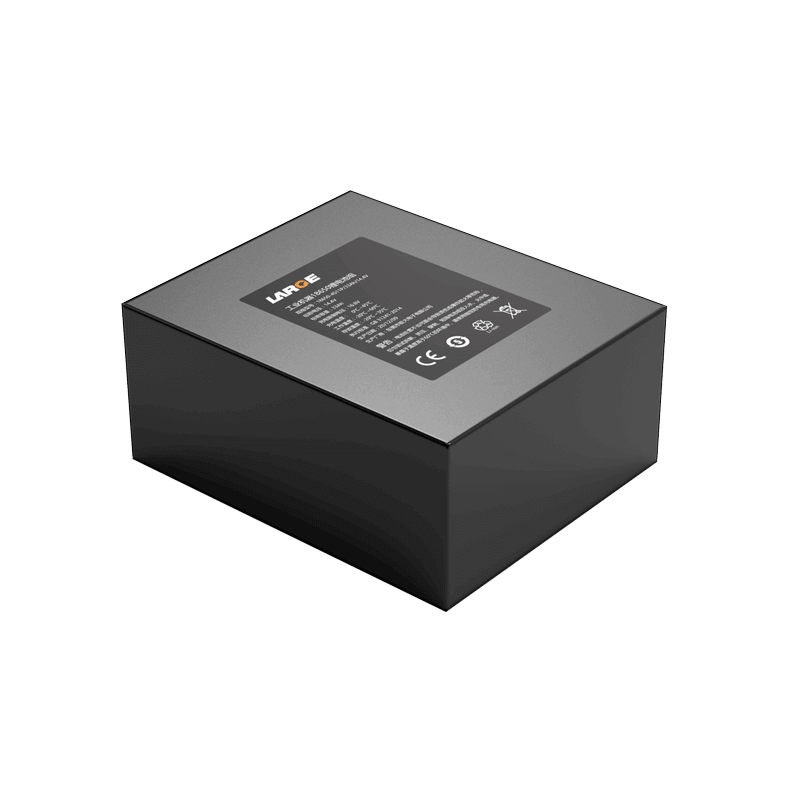

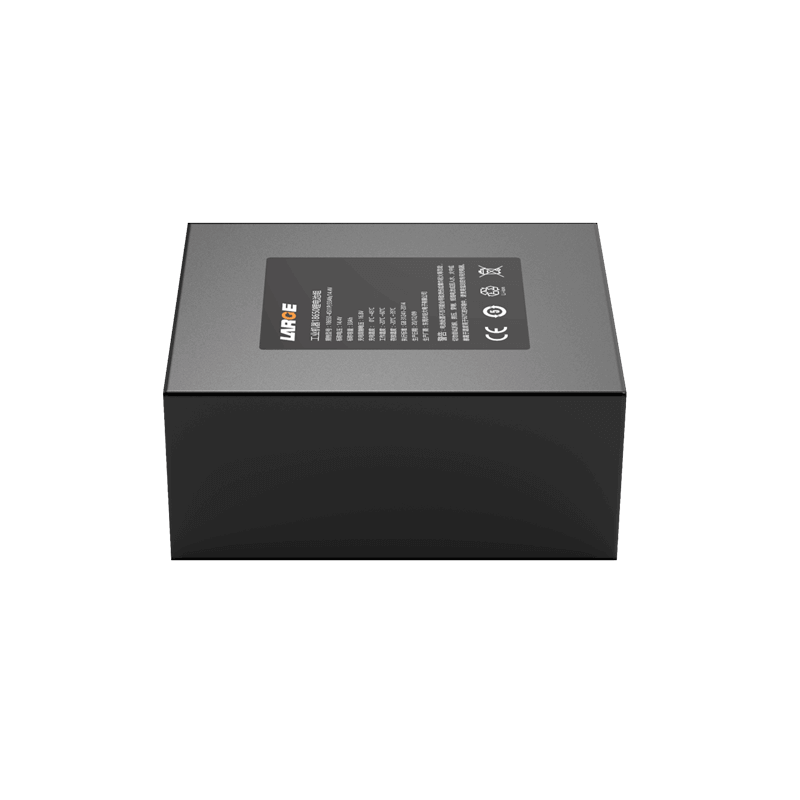

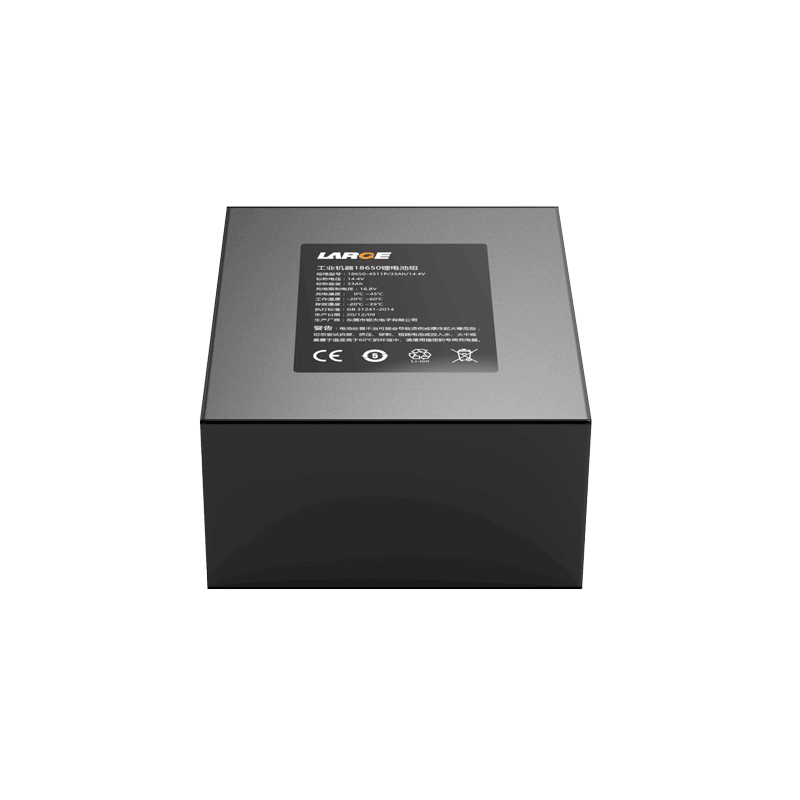

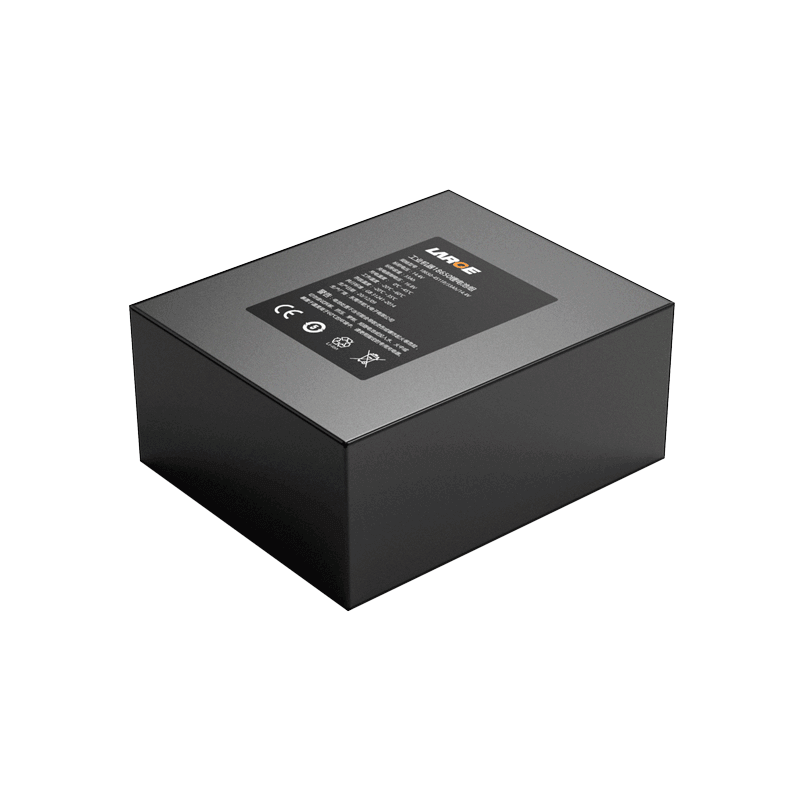

18650 14.4V 33Ah Samsung Battery for Industrial Machinery

18650 14.4V 33Ah Samsung Battery for Industrial Machinery
18650 14.4V 33Ah Samsung Battery for Industrial Machinery
18650 14.4V 33Ah Samsung Battery for Industrial Machinery
18650 14.4V 33Ah Samsung Battery for Industrial Machinery

Product Detail

Product number: 02DQ0444-03

Cell model:18650/3000mAh/3.6V

Battery specification: 18650-4S11P/33Ah/14.4V

Nominal voltage:14.4V

Nominal capacity:33Ah

Charging voltage: 16.8V

Charging current: ≤6.6A

Discharging current:6.6A

Instant discharging current: 10.0A

End-off voltage: 11.2V

Internal resistance: ≤150mΩ

Battery weight: 2500g

Product dimension: 71*138*166mm

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35℃

Intelligent lithium ion battery protection: power management, constant voltage output, short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.

Application field:industrial machinery

*
*
*
