Custom Lithium ion Battery Pack

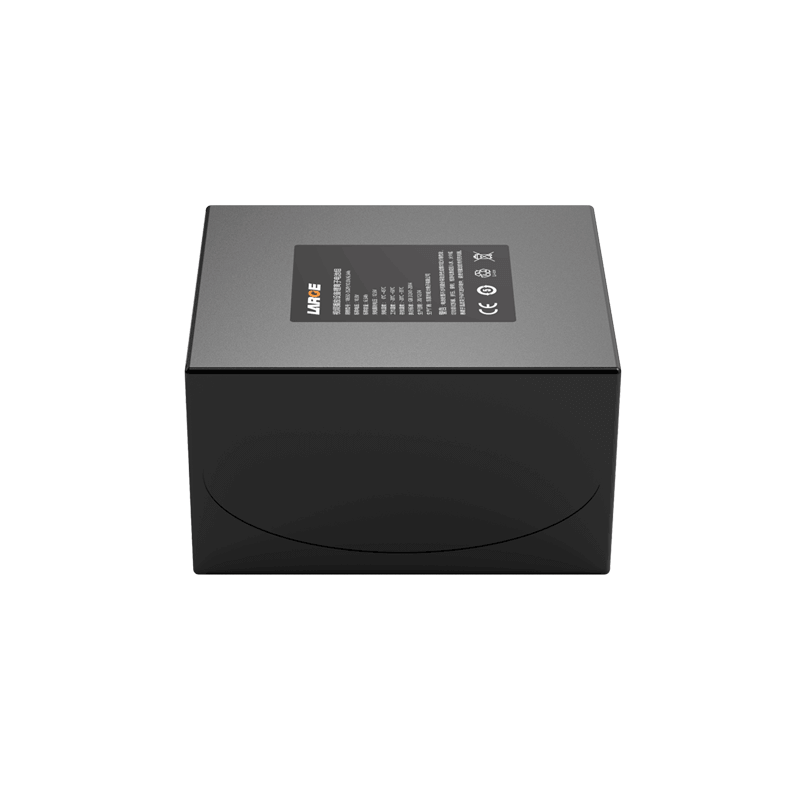

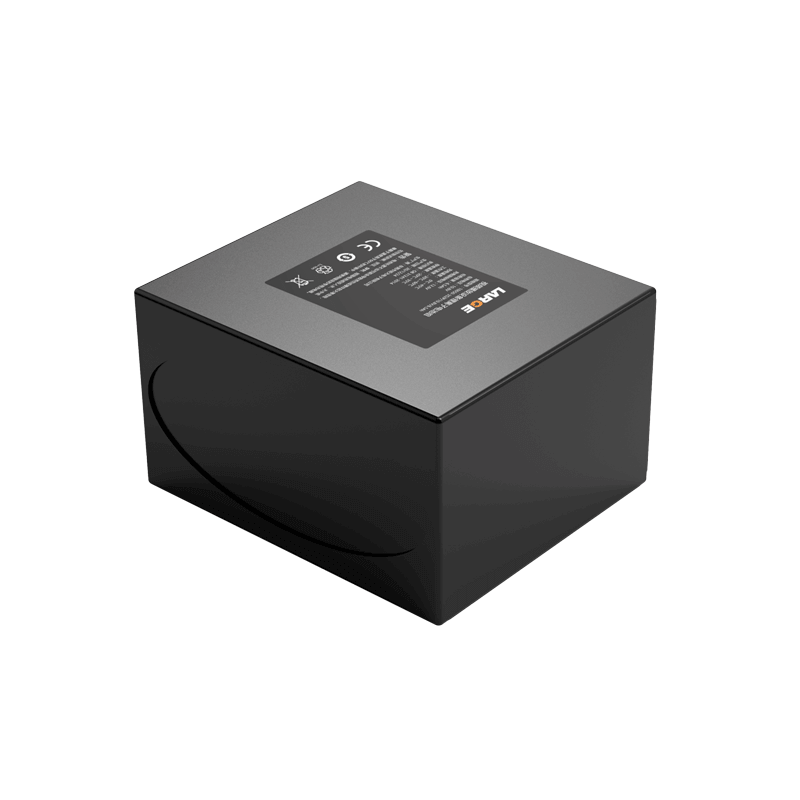

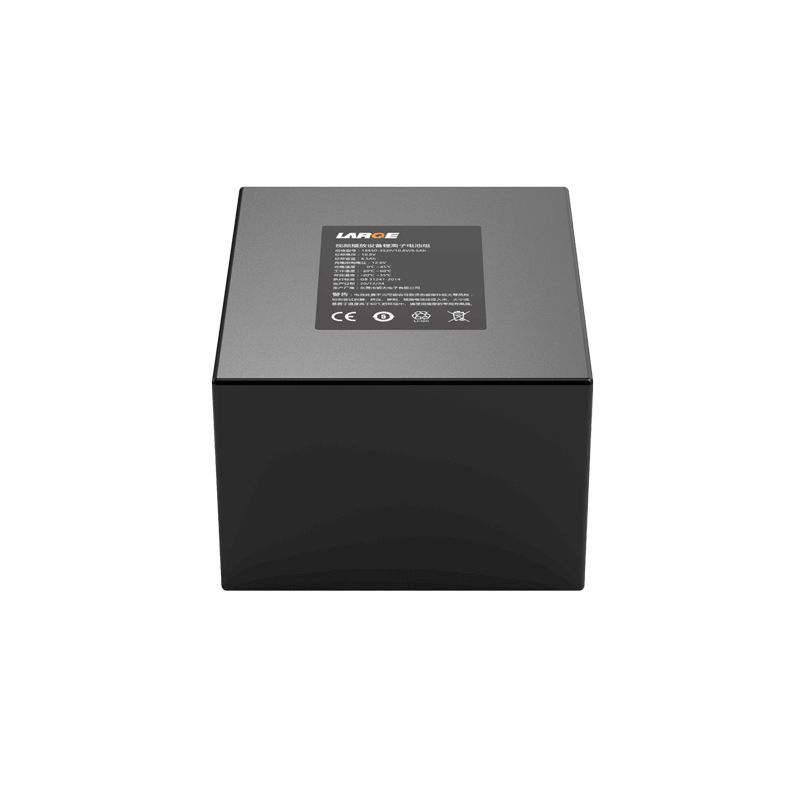

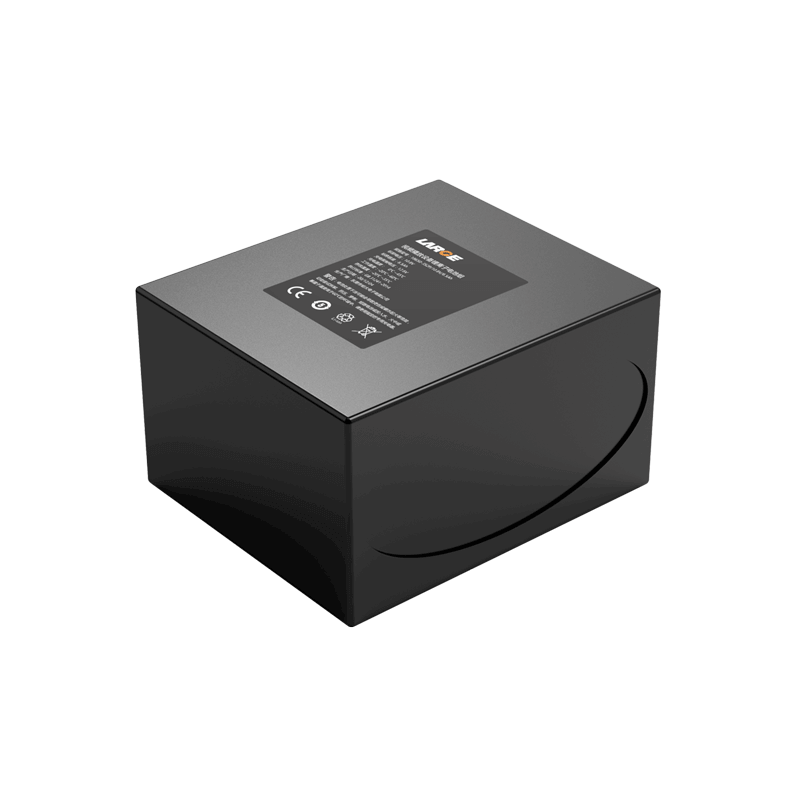

18650 10.8V 6.5Ah Samsung Battery for Video Playback Device

Product Detail

Product number: 01DQ0134-01

Cell model:INR18650-35E/3350mAh/3.6V

Battery specification: 18650-3S2P/10.8V/6.5Ah

Battery dimension:74*64*43mm(Max)

Nominal voltage:10.8V

Nominal capacity:6.5Ah

Charging voltage: 12.6V

Charging current: ≤3.4A

Discharging current: ≤13A

End-off voltage: 8.25V

Internal resistance: ≤200mΩ

Battery weight: 350g

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~+60℃(less than one month)-20~45 ℃(less than three months);-20~+30℃(less than twelve months)

Battery case:PVC process

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: video playback device



Product features

1. PVC process is simple and reliable, and is easy to install.

2. Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability.

3. Battery protection management: Adopt imported well-known brand protection chip with good stability, high precision monitoring, precise control to eliminate of safety risks.

4. The battery pack has good safety,nice discharge performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
