Custom Lithium ion Battery Pack

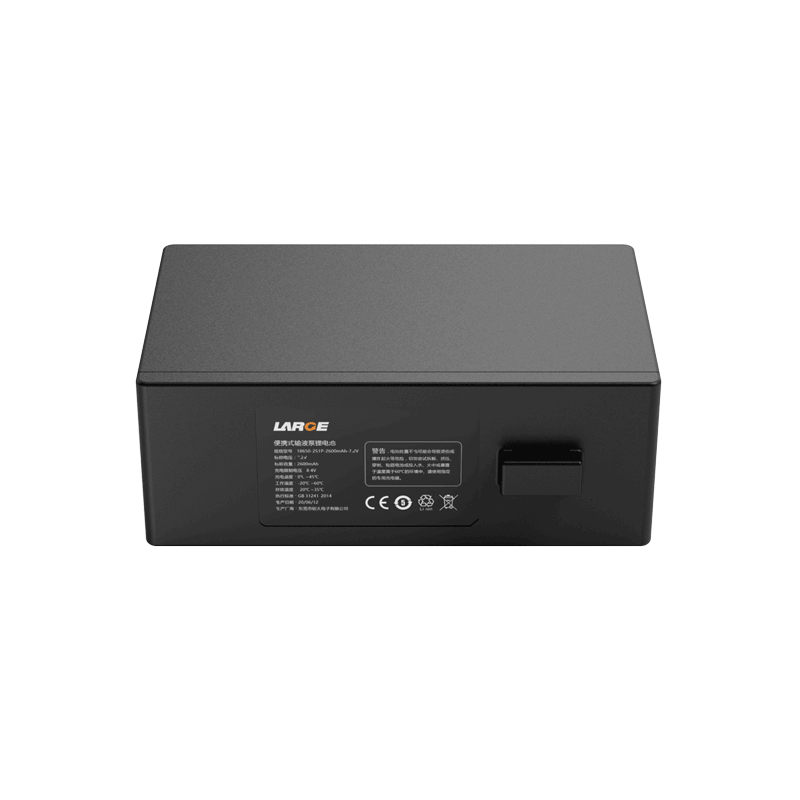

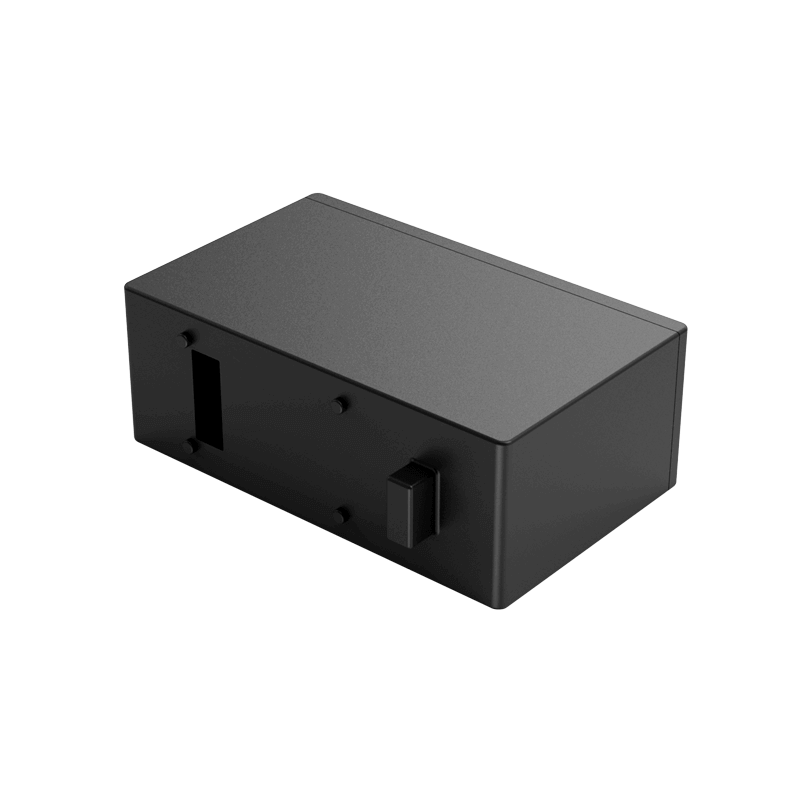

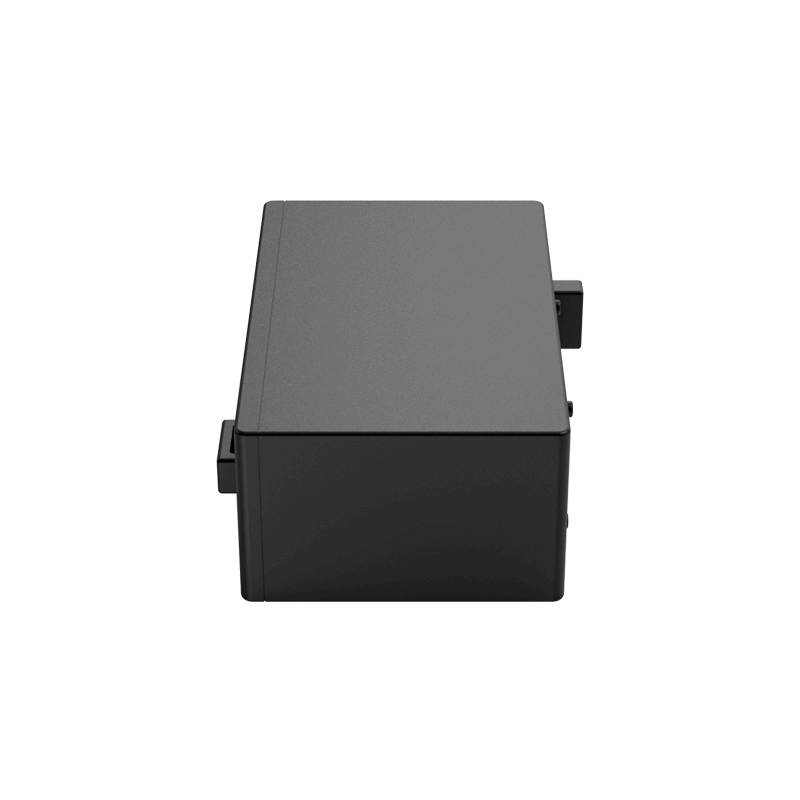

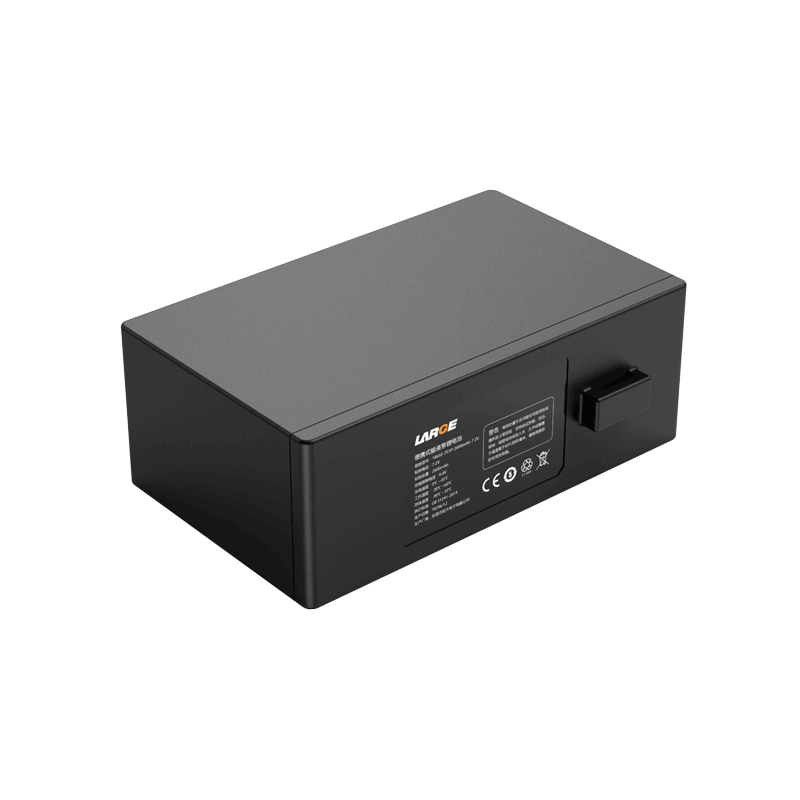

18650 14.4V 16.75Ah Samsung Battery for Detector

Product Detail

Product No. : 01DQ0069-04

Cell model: INR18650-35E/3350mAh/3.6V

Battery Specifications: 18650-4S5P/16.75Ah/14.4V

Nominal voltage: 14.4V

Nominal capacity: 16.75Ah

Charging voltage: 16.8V

Charging current: ≤5.0A

Discharge current: 5.0A

Instant discharge current: 10.0A

Discharge cut-off voltage: 12.0V

Finished product internal resistance: ≤150mΩ

Battery weight: 1200g

Product size: 78*85*132mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc

Application field: geophone

*
*
*
