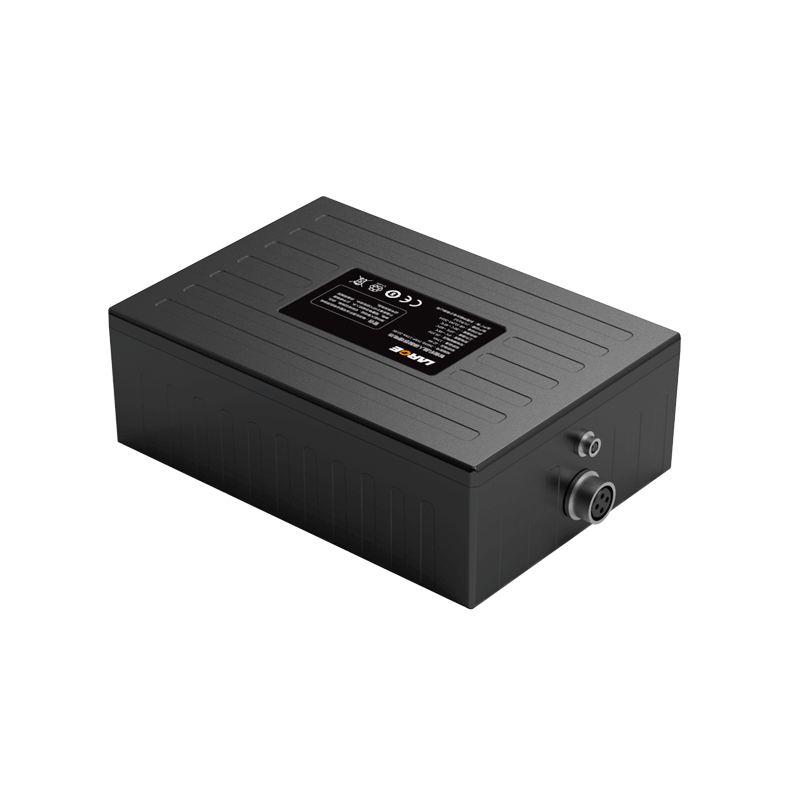

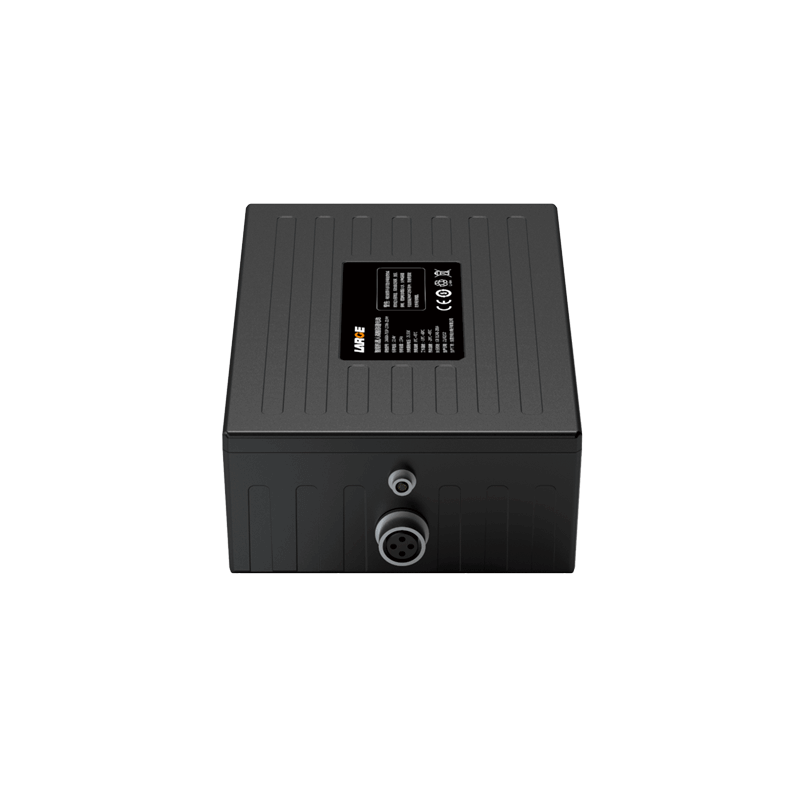

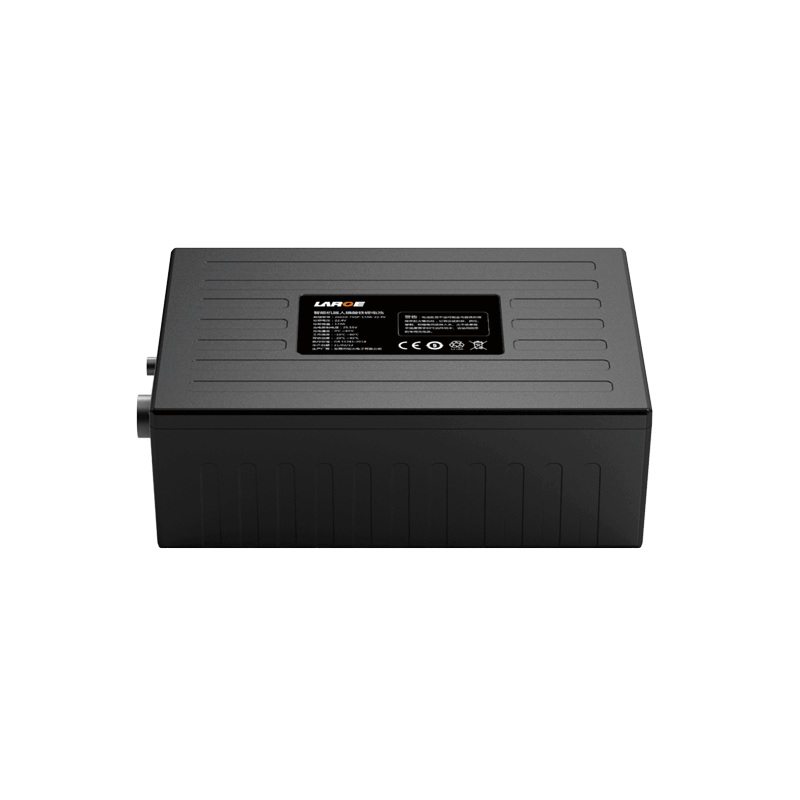

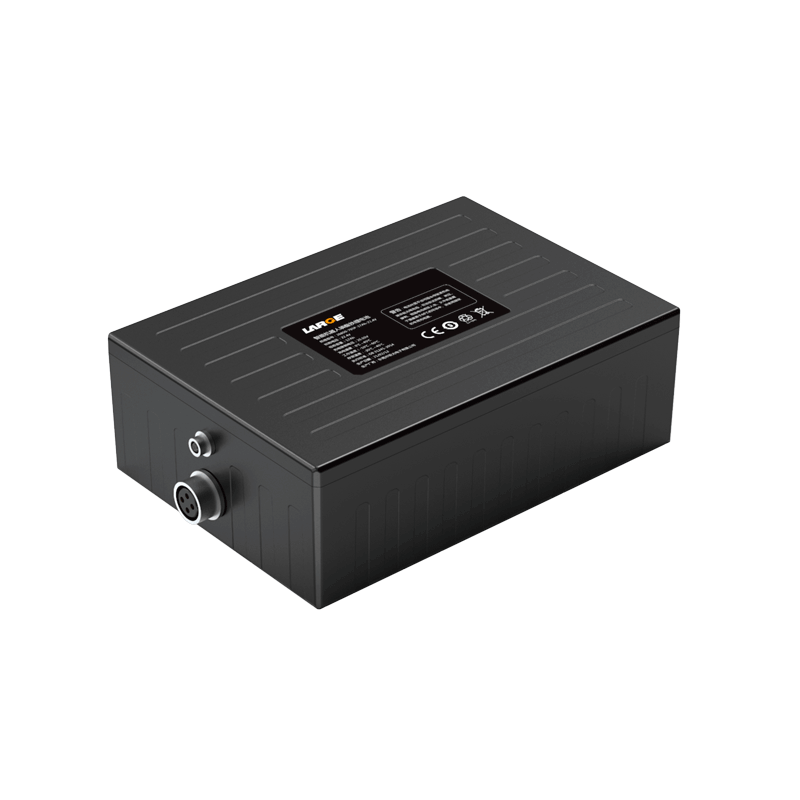

26650 22.4V 17Ah LiFePO4 Battery for Robot with RS485

26650 22.4V 17Ah LiFePO4 Battery for Robot with RS485
26650 22.4V 17Ah LiFePO4 Battery for Robot with RS485
26650 22.4V 17Ah LiFePO4 Battery for Robot with RS485
26650 22.4V 17Ah LiFePO4 Battery for Robot with RS485

Product Detail

Product number: 05DQ0055-01

Cell model: 26650/3400mah /3.2V

Battery specification: 26650-7 S5P-17AH-22.4V

Product size: 235*165*78(mm)

Nominal voltage: 22.4V

Nominal capacity: 17Ah

Charging voltage: 25.55V

Charging current: ≤10A

Discharge current: ≤15A

Discharge cut-off voltage: 14V

Finished product internal resistance: ≤150mΩ

Battery weight: 4.2kg

Charging temperature: 0 ~ 55℃

Discharge temperature: -10 ~ 60 ℃

Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)

Battery package: silver plastic case

Output mode: National standard UL wire output

Communication protocol: RS485

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Robotics

*
*
*
