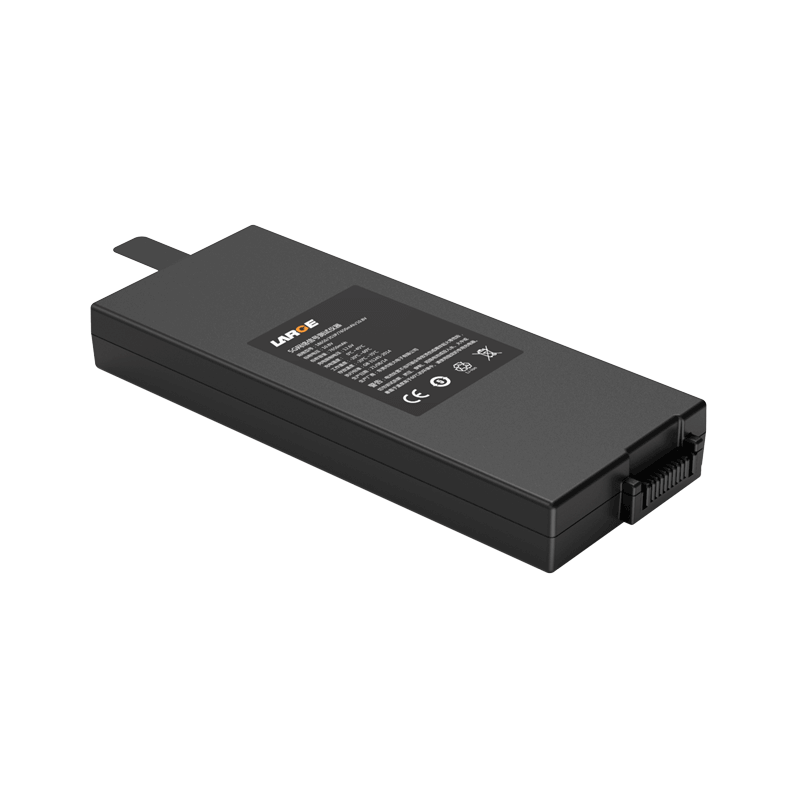

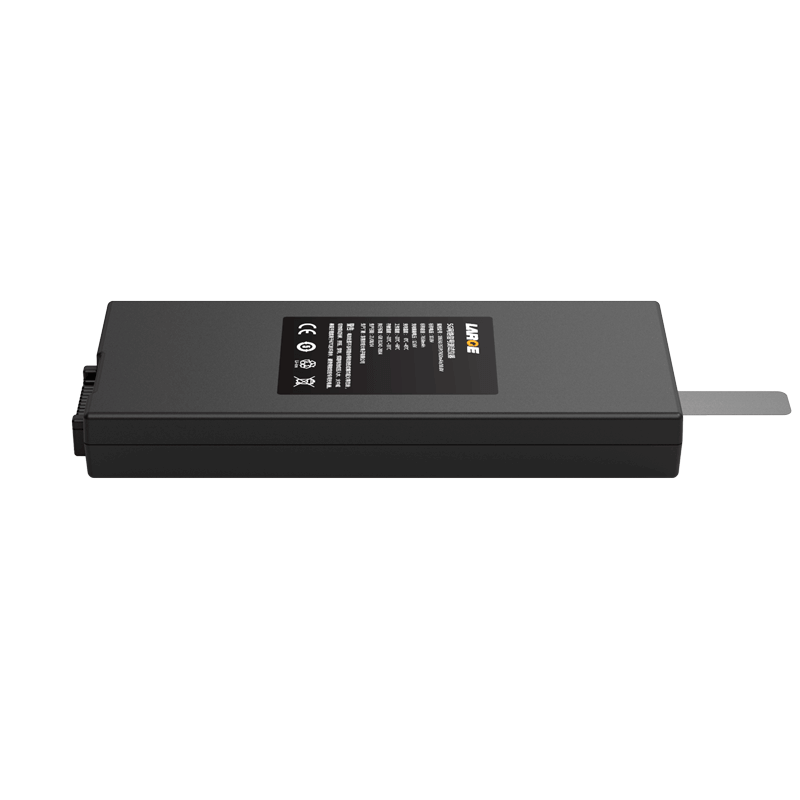

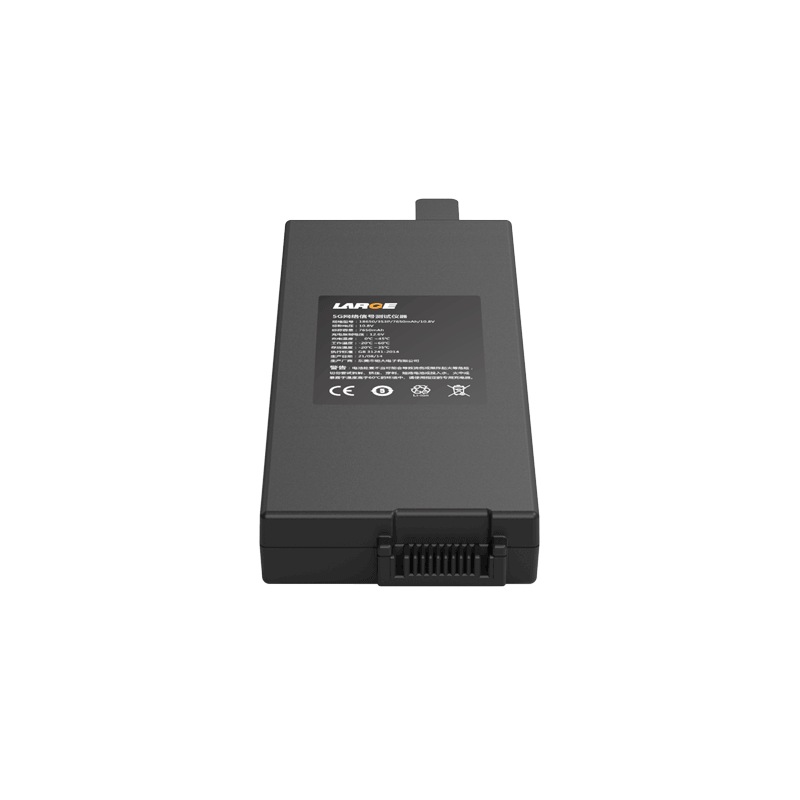

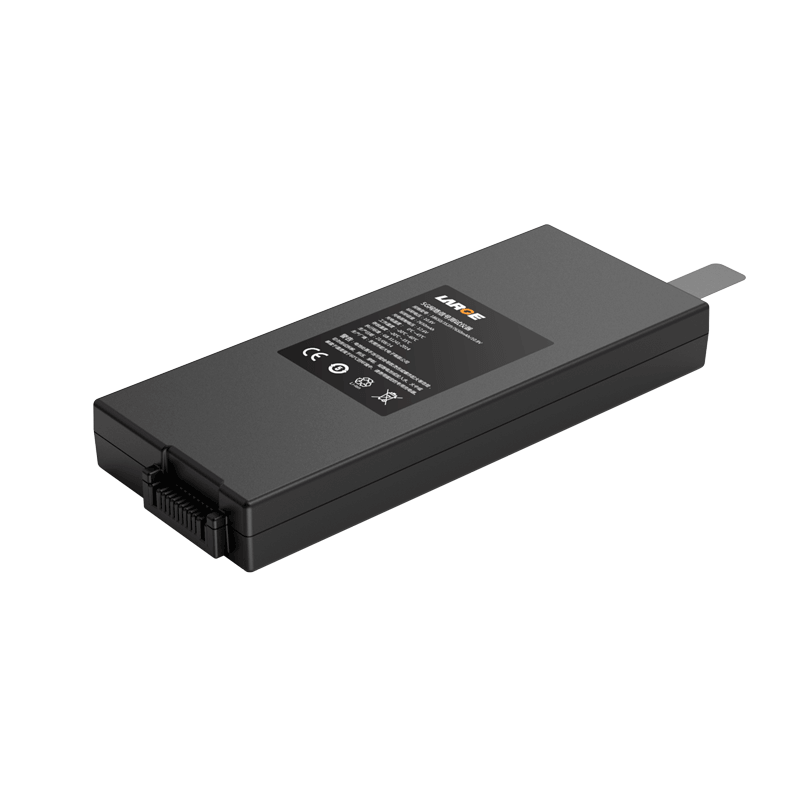

18650 7650mAh 10.8V 5G Lithium Ion Battery for Network Signal Testing Instrument

Product number: 01DQ0047-07

Cell model: 18650-2550MAH-3.6V

Battery specification: 18650/3S3P/7650mAh/10.8V

Product size: 182.95*74.3*23.3mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 7650mAh

Charging voltage: 12.6V

Charging current: ≤ 3.6a

Discharge current: ≤ 7.6a

Discharge cut-off voltage: 9.0V

Product internal resistance: ≤200mΩ

Battery weight: 500G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: network signal testing equipment, portable handheld terminal testing equipment

Product features

1.The ABS+PC shell with aluminum alloy shell increases reliability and firmness to the battery.

2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;

3.Data communication management: The SYSTEM uses Ti-Smbus software to manage the chip, transmit data and control temperature precisely to minimize security risks.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
