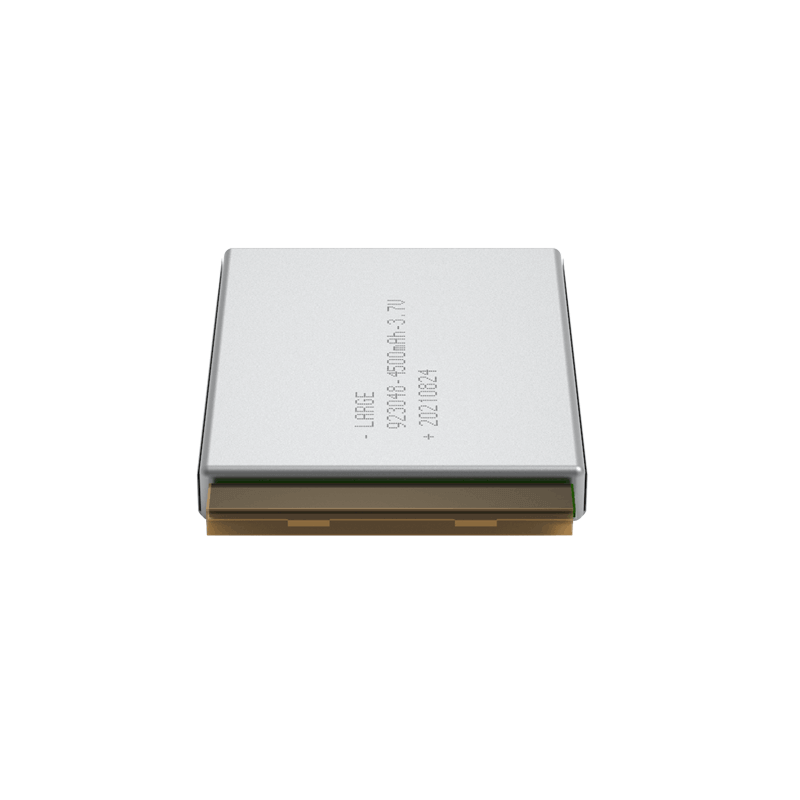

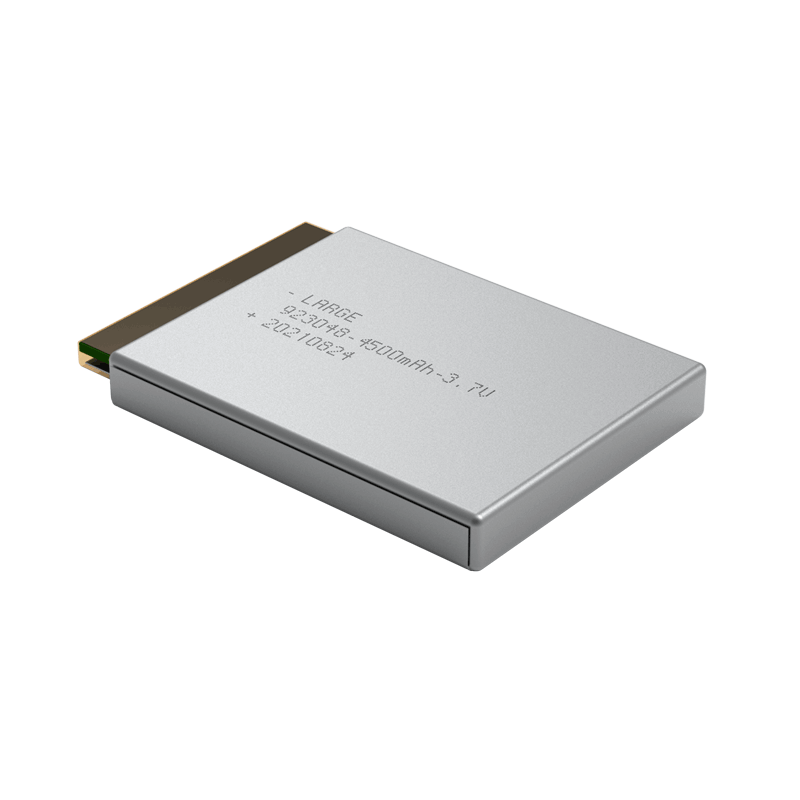

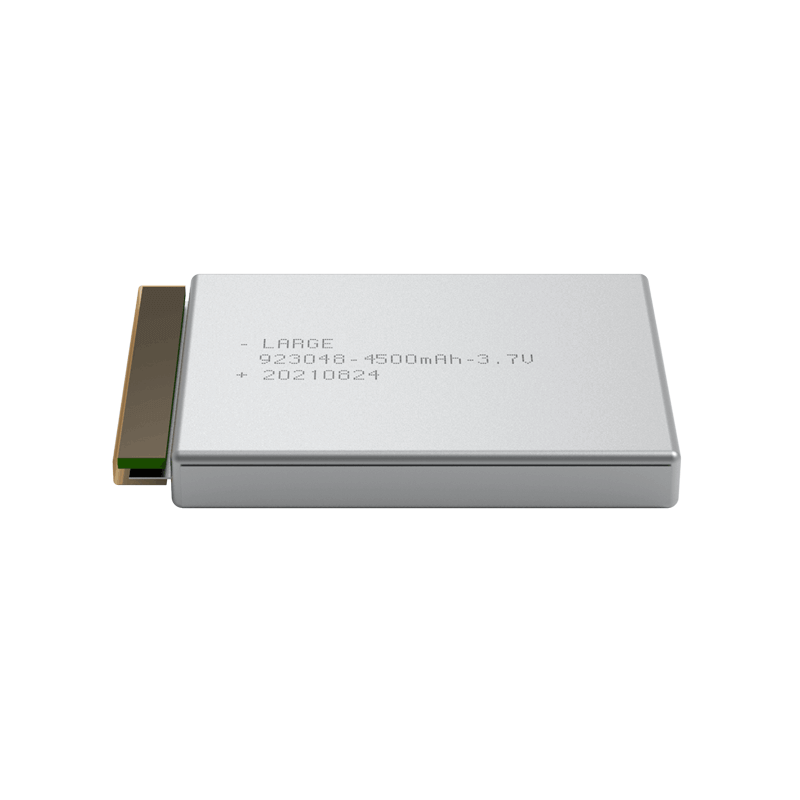

3000mAh 3.7V Lithium Polymer Battery for Network Signal Testing Instrument

Product Detail

Product number: 01WQ0037-06T

Cell model: 923048-1500MAH-3.7V

Specification: 923048-1S2P-3000MAH-3.7V

Product size: 51.5*30*18.5mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 3000mAh

Charging voltage: 4.2V

Charging current: ≤1.5A

Discharge current: ≤3.0A

Discharge cut-off voltage: 3.0V

Internal resistance: ≤130mΩ

Battery weight: 55G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: network signal testing equipment, portable, handheld terminal testing equipment


Product Features

1.Black PVC heat shrinkable film package is simple, reliable and easy to be installed.

2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported seiko protection chip with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

4.The battery pack has good safety, nice discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
