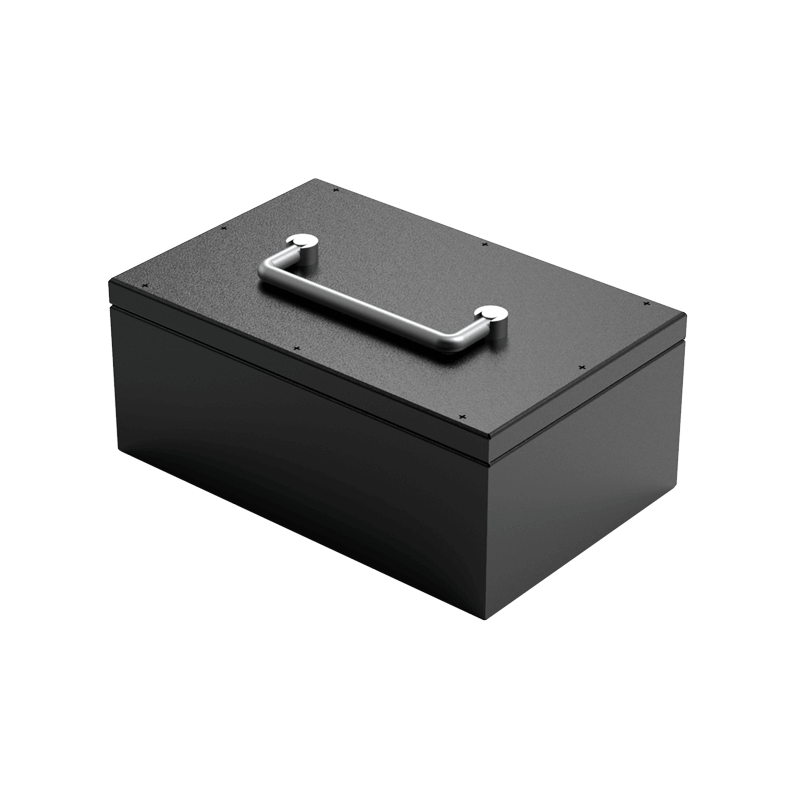

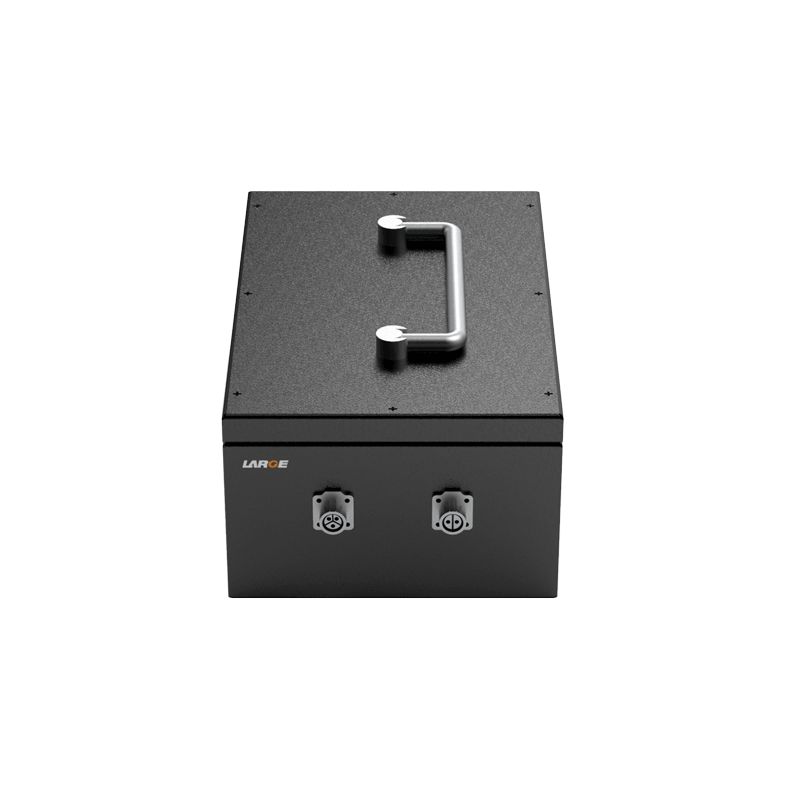

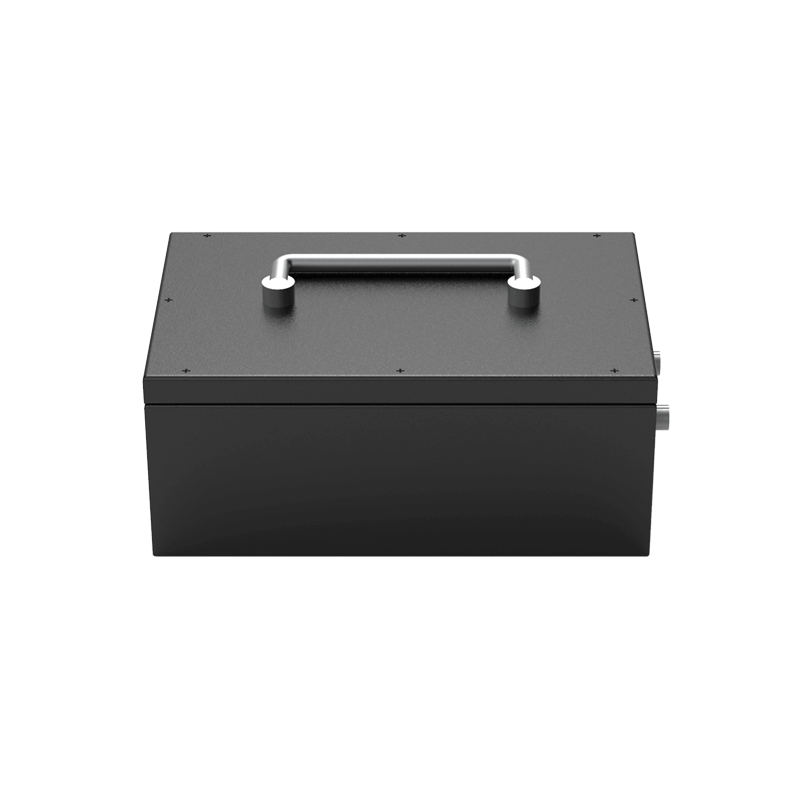

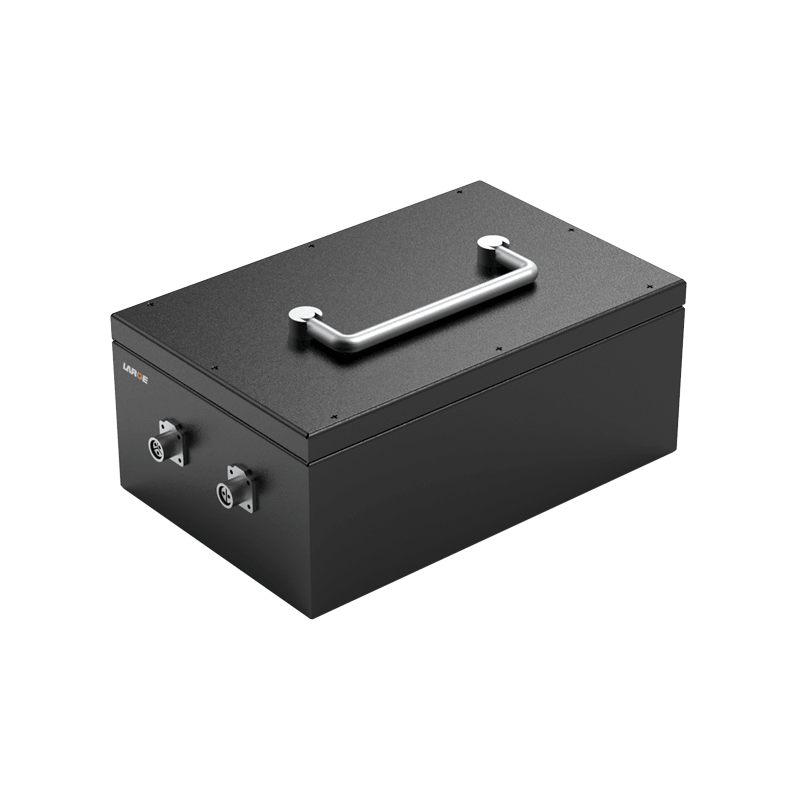

26650 12.8V 19.8Ah Lithium-ion Battery for Special Devices

26650 12.8V 19.8Ah Lithium-ion Battery for Special Devices
26650 12.8V 19.8Ah Lithium-ion Battery for Special Devices
26650 12.8V 19.8Ah Lithium-ion Battery for Special Devices
26650 12.8V 19.8Ah Lithium-ion Battery for Special Devices

Product Detail

Product number: 40AQ031-01

Cell model: 26650-3300mah low temperature charging and discharging

Specification: 26650-4S6P-19.8AH-12.8V

Nominal voltage: 12.8V

Nominal capacity: 19.8Ah

Charging voltage: 14.6V

Charging current: ≤ 2.5A

Discharge current: 0.3A

Instantaneous discharge current: 0.3A

Discharge cut-off voltage: 8.0V

Internal resistance of finished product: input ≤500m ω; Output Ω 1000 m or less

Battery weight: 4.5kg

Product size: 240*155*100mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: Sheet metal

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection, ESD protection, etc.

Application: special mobile devices, security field

*
*
*
*
*
