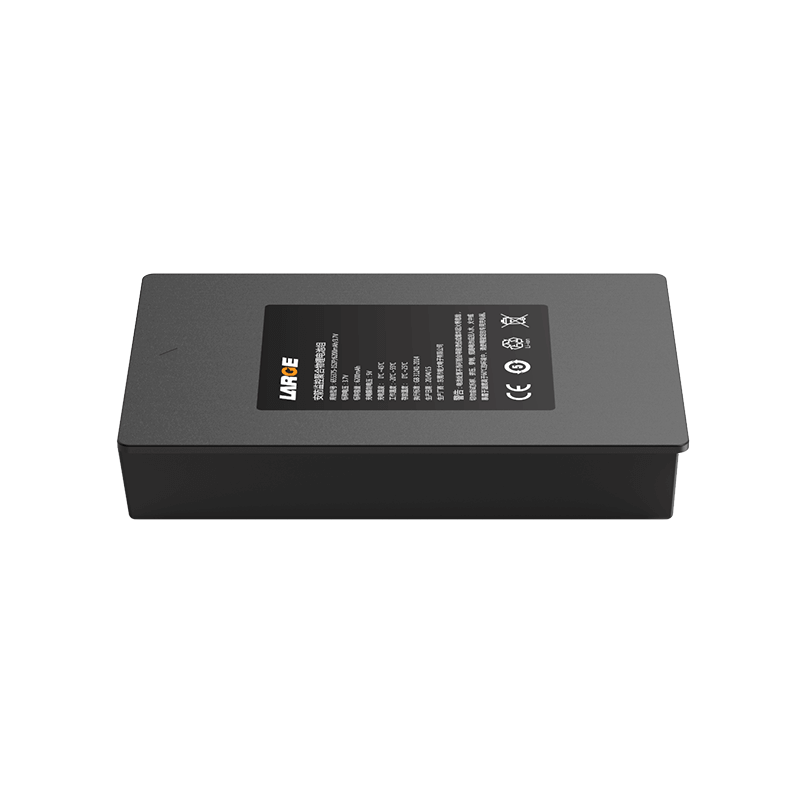

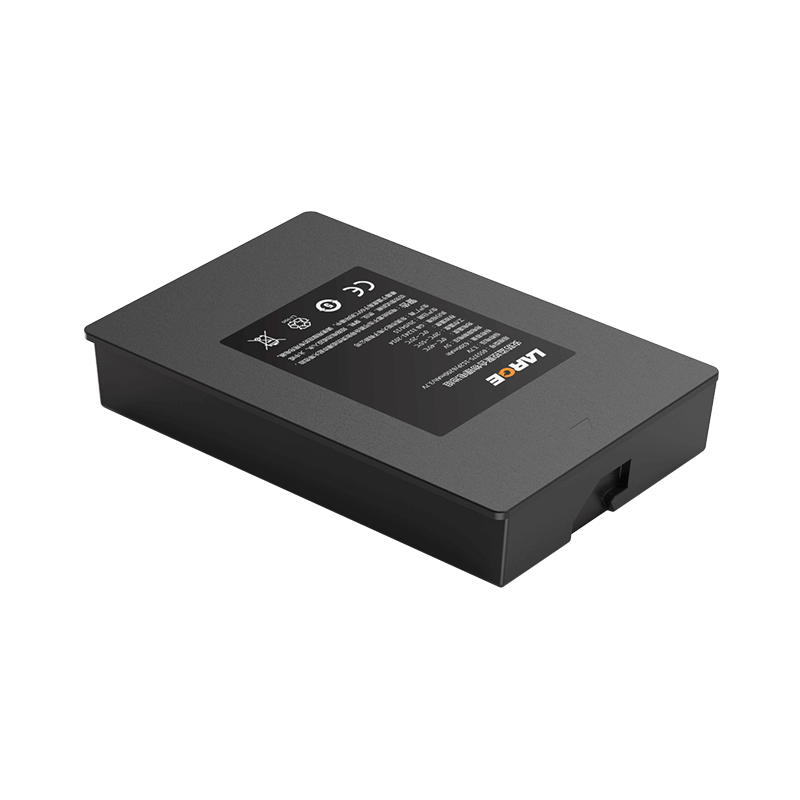

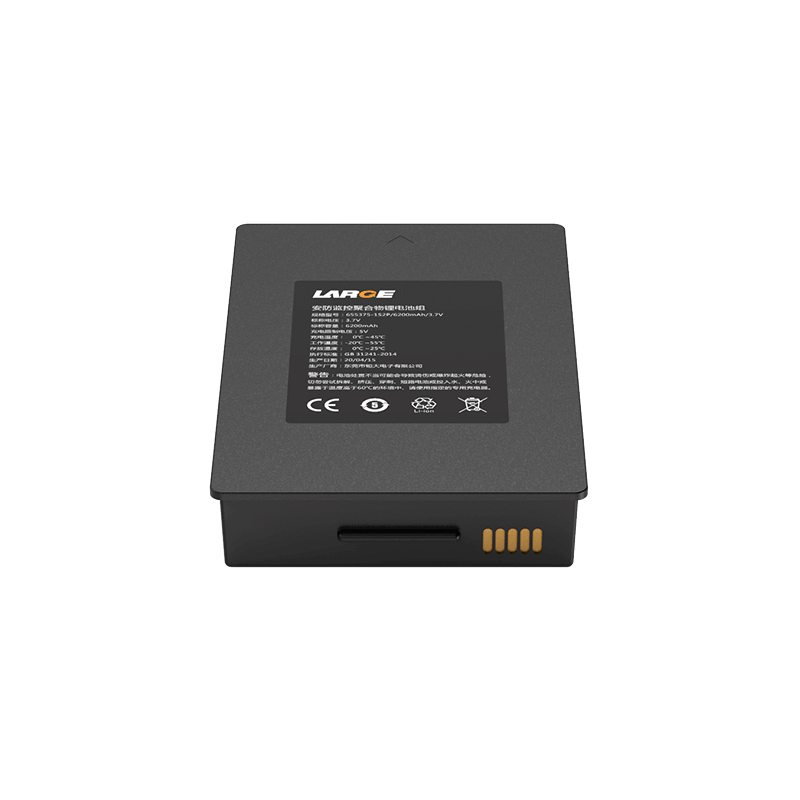

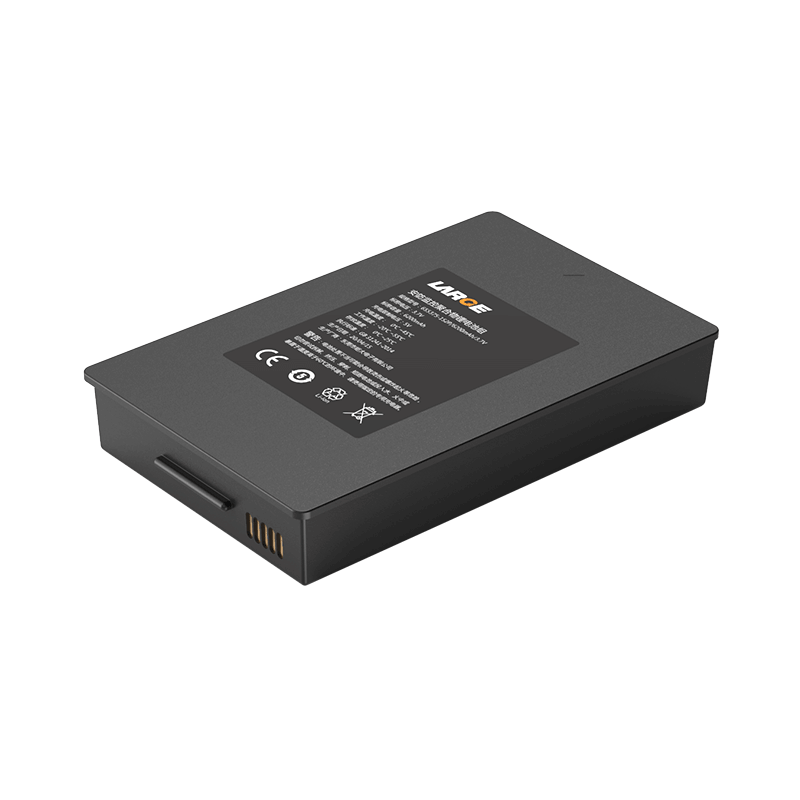

655375 3.7V 6200mAh Lithium Polymer Battery Pack for Security and Monitoring

655375 3.7V 6200mAh Lithium Polymer Battery Pack for Security and Monitoring
655375 3.7V 6200mAh Lithium Polymer Battery Pack for Security and Monitoring
655375 3.7V 6200mAh Lithium Polymer Battery Pack for Security and Monitoring
655375 3.7V 6200mAh Lithium Polymer Battery Pack for Security and Monitoring

Product Detail

Project number: 01DQ0023-55

Cell model: 655375/3100mah /3.7V

Battery specification: 655375-1S2P/6200mAh/3.7V

Nominal voltage: 3.7V

Nominal capacity: 6200mAh

Charging voltage: 5V charging

Charging current: ≤ 3.1A

Discharge current: 3.1A

Instantaneous discharge current: 10.0A

Discharge cut-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 150g

Product size: 16.2*60.4*93.9mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 55℃

Storage temperature: 0 to 25°C

Intelligent lithium battery protection: charging management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Security monitoring

*
*
*
