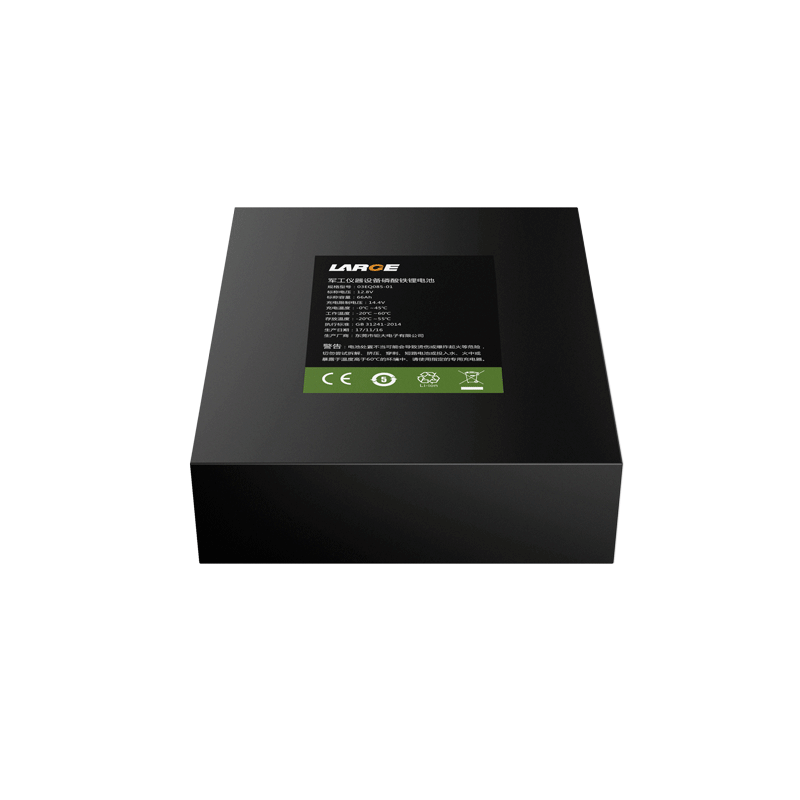

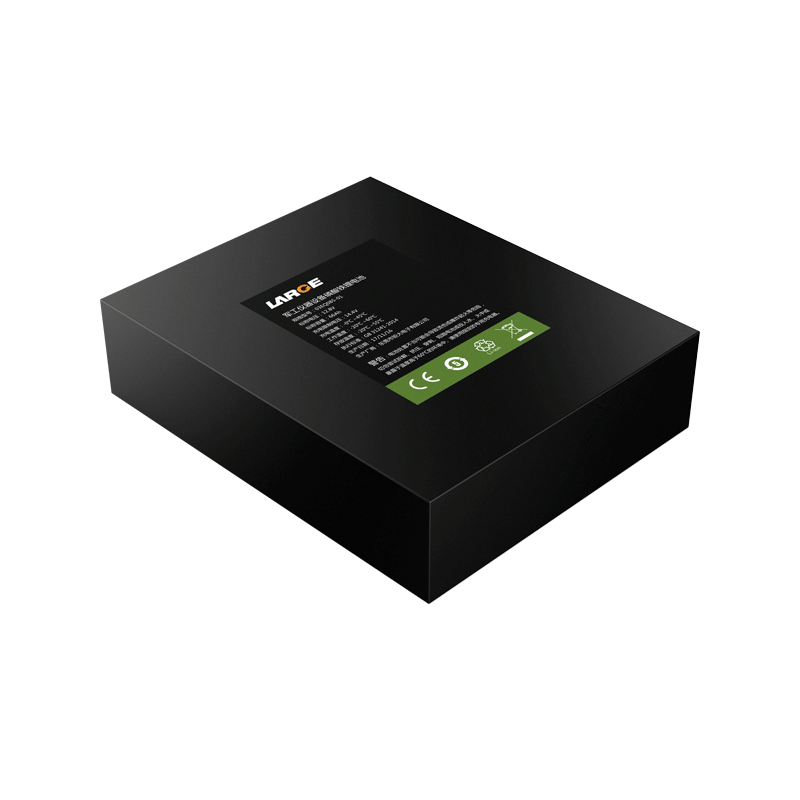

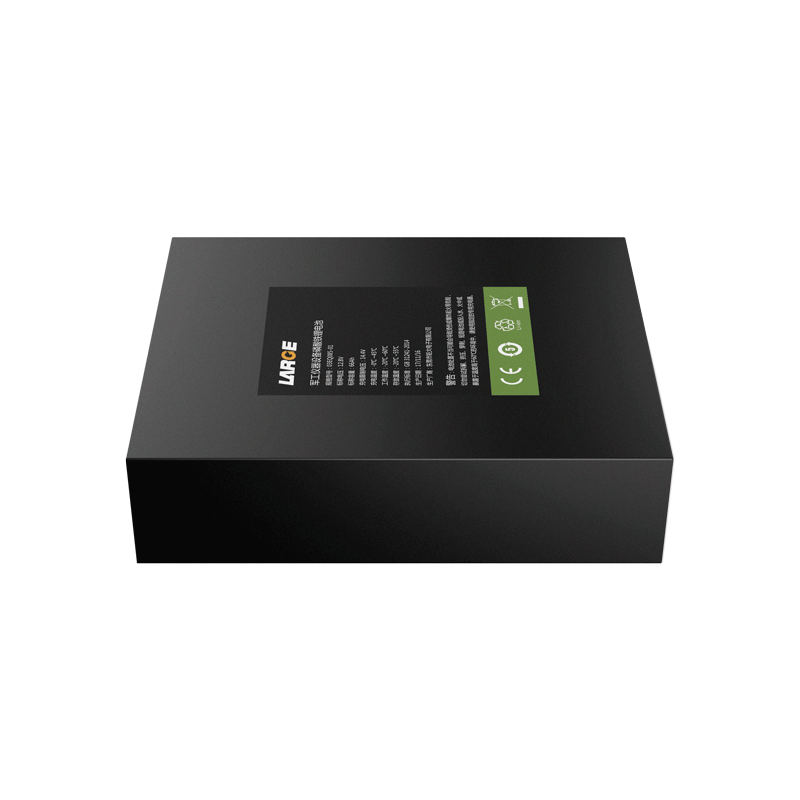

Product number: 03EQ085-01
Cell model: 26650/3.2V/3300mAh
Battery specification: 26650-4S20P/12V/60Ah
Nominal voltage: 12.8V
Nominal capacity: 66Ah
Charging voltage: 14.4V
Charging current: ≤20A
Discharge current: 10A
Instantaneous discharge current: 50A
Discharge cut-off voltage: 10V
Finished product internal resistance: 200 mΩ or less
Battery weight: 7.5kg
Product dimension: 300*245*75mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 60 ℃
Temperature protection: 65℃±5℃
Battery case: PVC grade
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, 485 communication, etc.
Application: industrial machinery and equipment, special equipment and instruments, etc.
1.Communication function: LCD displays voltage and quantity, which makes easily display quantity;
2.Wire output terminal: Adopt wiring output interface to increase the conductivity reliability;
3.Data communication management: It adopts seiko IC+TI charger management chip, precise data transmission and accurate temperature control to eliminate security risks to the greatest extent.
4.Battery pack has good safety, low temperature performance and long cycle life;
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
