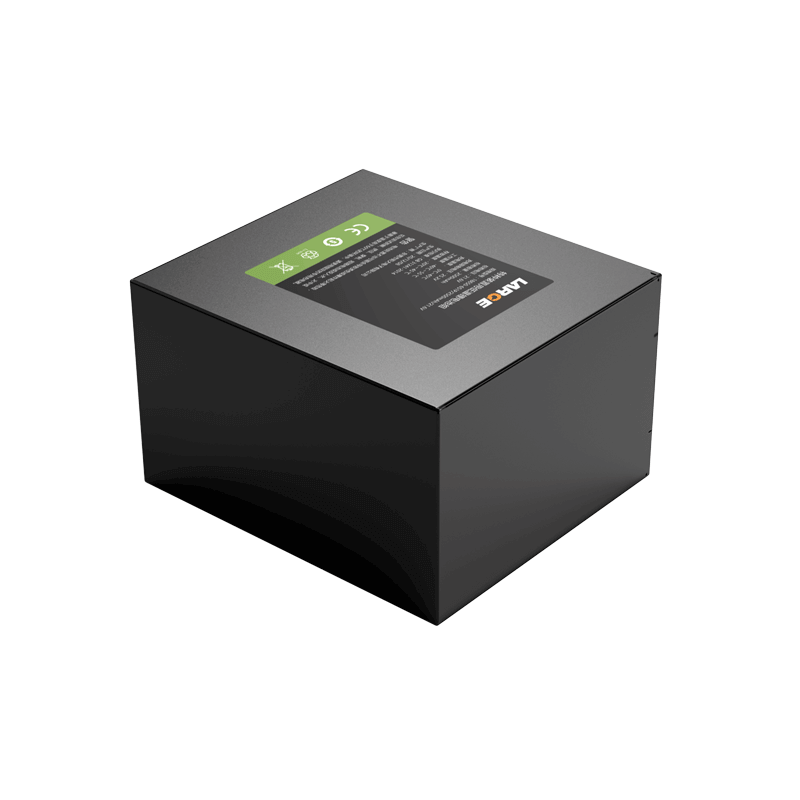

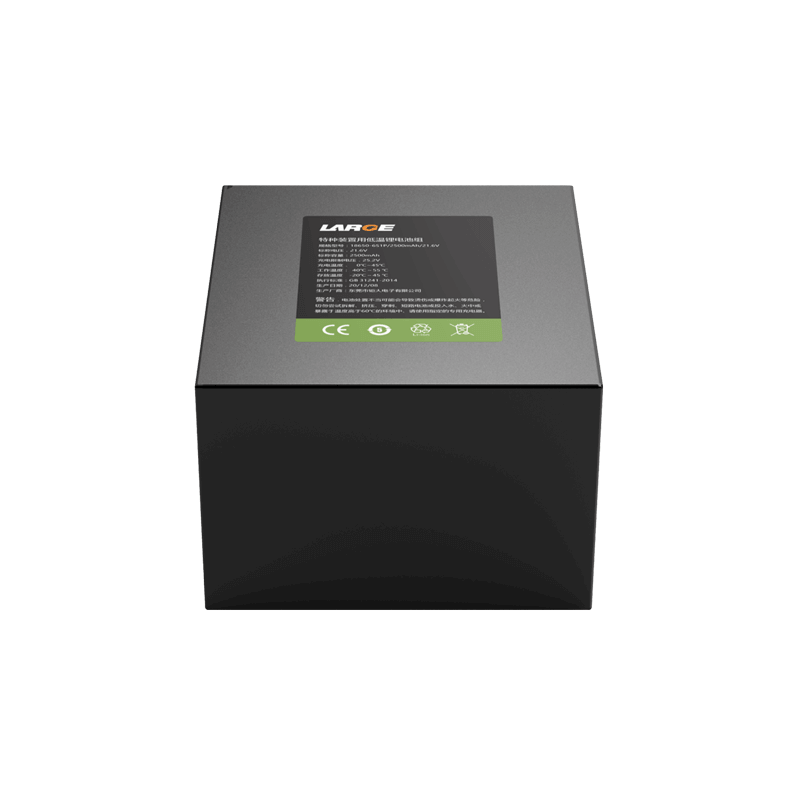

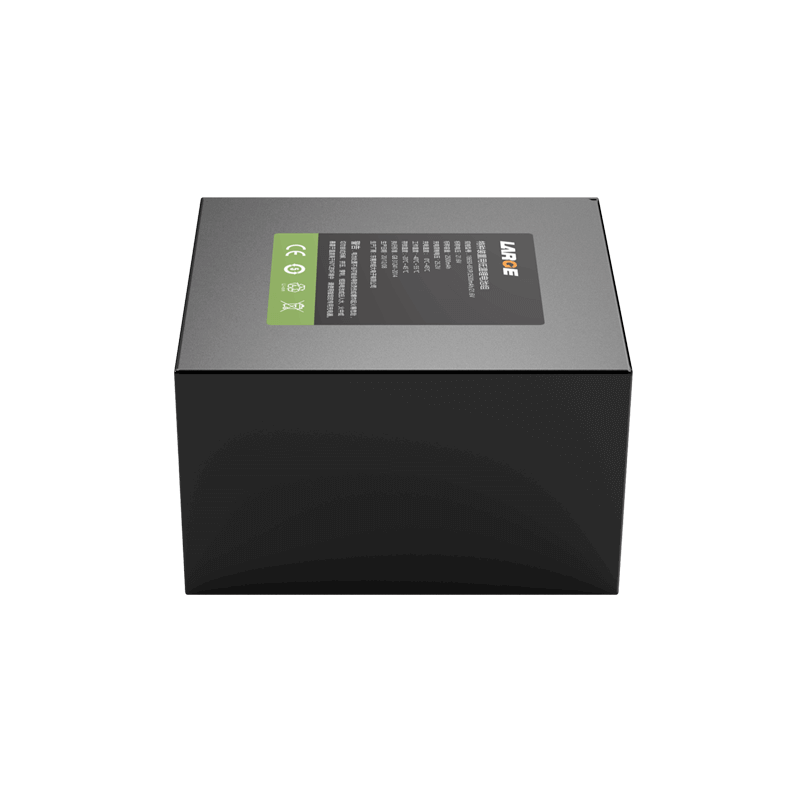

18650 21.6V 2500mAh Low Temperature Battery for Special Device

Product Detail

Product number: 40AQ009-01

Cell model:ICR18650/2600mAh/3.6V

Battery specification: 18650-6S1P/2500mAh/21.6V

Nominal voltage:21.6V

Nominal capacity:2600mAh

Charging voltage: 25.2V

Charging current: 500mA

Discharging current: 50mA

Instant discharge current:5000mA

End-off voltage:15.0V

Internal resistance: ≤200mΩ

Battery weight: 380g

Product dimension:75*65*45mm

Charging temperature:0~45℃

Discharging temperature: -40~+55℃

Storage temperature: -20~+45℃

Battery case: PVC

Lithium ion battery protection: Conventional protection+SMBUS communication




Product features

Data communication management: TI software management chip, accurate data transmission and precise temperature control eliminate security risks.

The battery pack has good security and nice performance with high standard connector.

It can accurately monitor the battery power.

*
*
*
