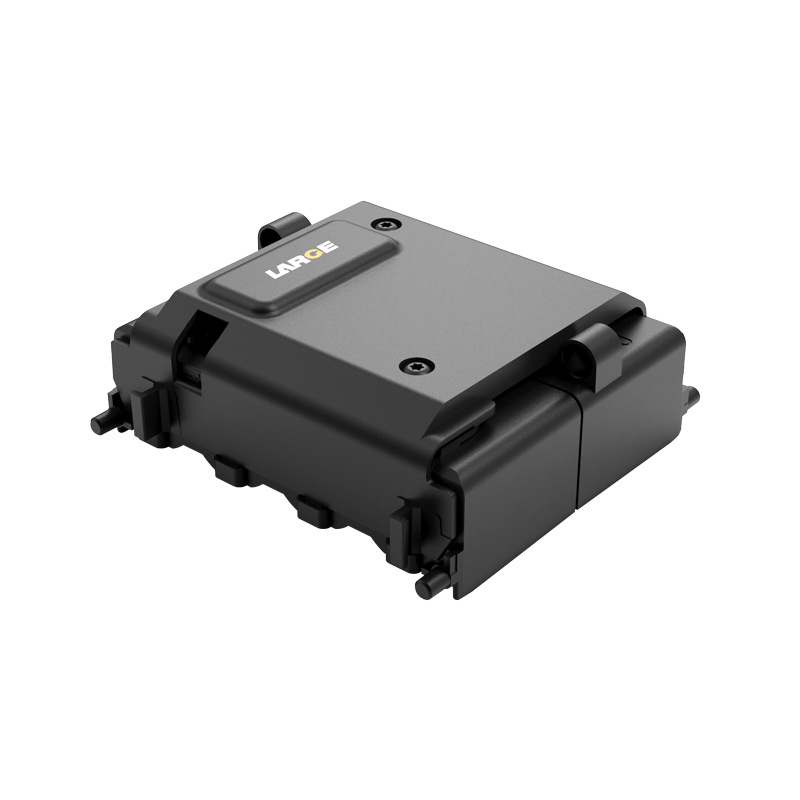

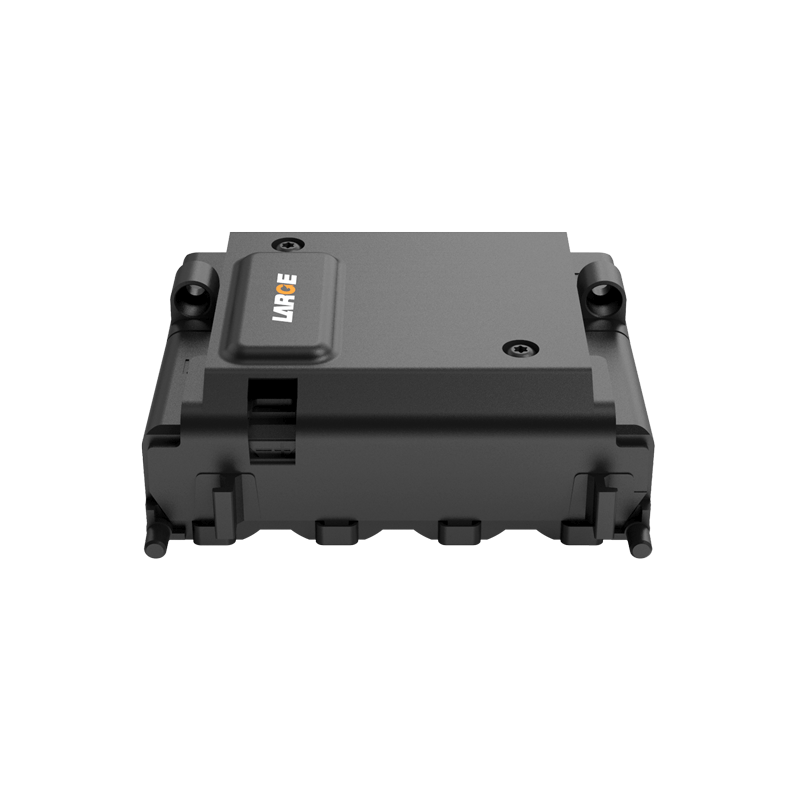

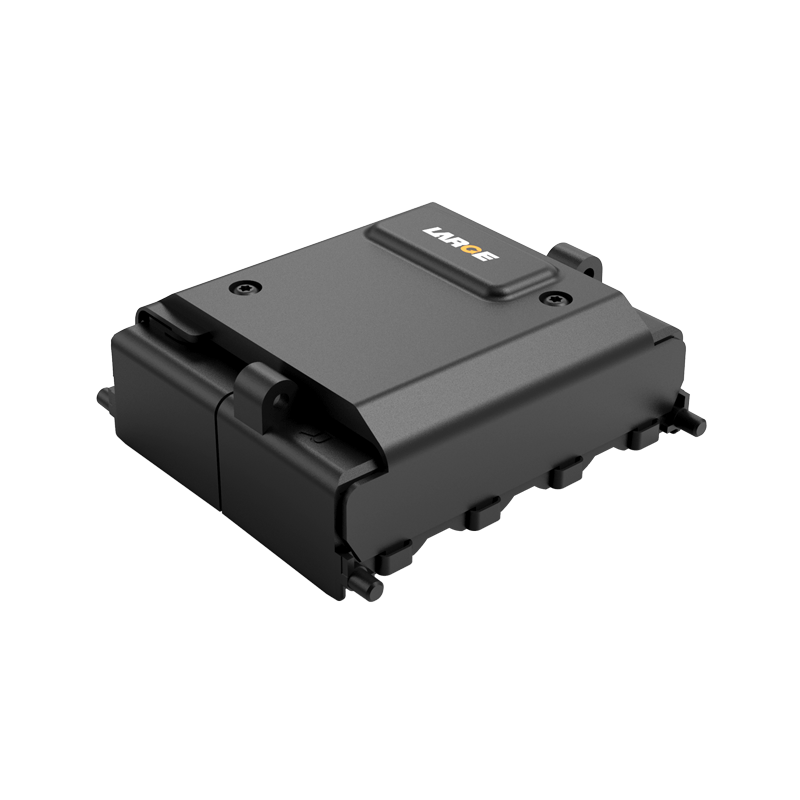

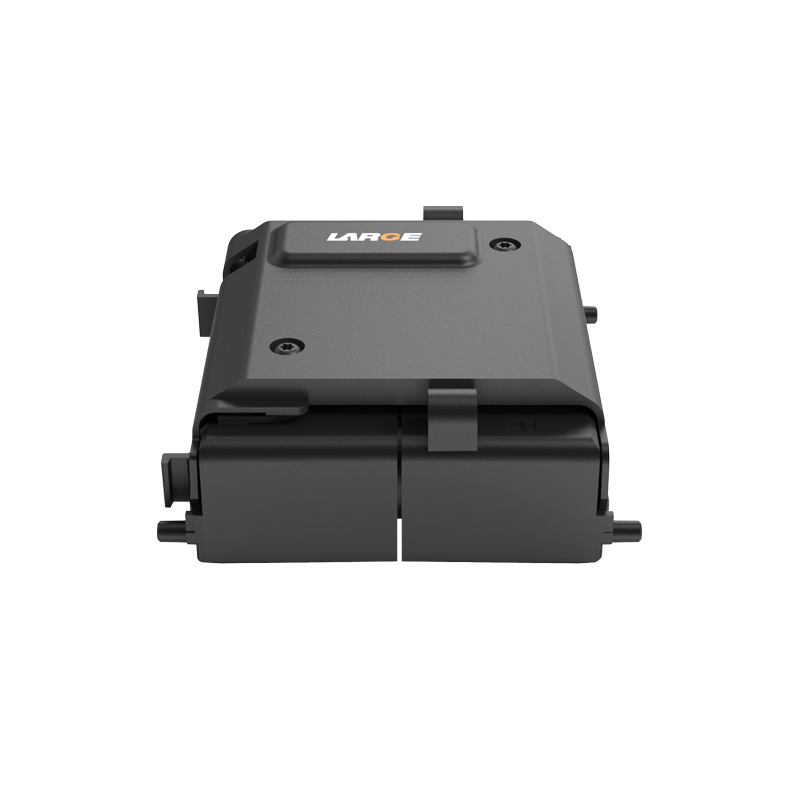

18650 14.4V 3.0Ah Samsung Battery for Photographic Equipment

18650 14.4V 3.0Ah Samsung Battery for Photographic Equipment
18650 14.4V 3.0Ah Samsung Battery for Photographic Equipment
18650 14.4V 3.0Ah Samsung Battery for Photographic Equipment
18650 14.4V 3.0Ah Samsung Battery for Photographic Equipment

Product Detail

Project number: 02DQ0331-01

Cell model: 18650/3000mAh/3.6V- Samsung

Battery specification: 18650/4S1P/3.0Ah/14.4V

Nominal voltage: 14.4V

Nominal capacity: 3.0Ah

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: 3.0A

Instant discharge current: 10.0A

Discharge cut-off voltage: 10.0V

Finished product internal resistance: ≤300mΩ

Battery weight: 300g

Product dimension: 32.3*69.3*82.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: /

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Photographic equipment

*
*
*
