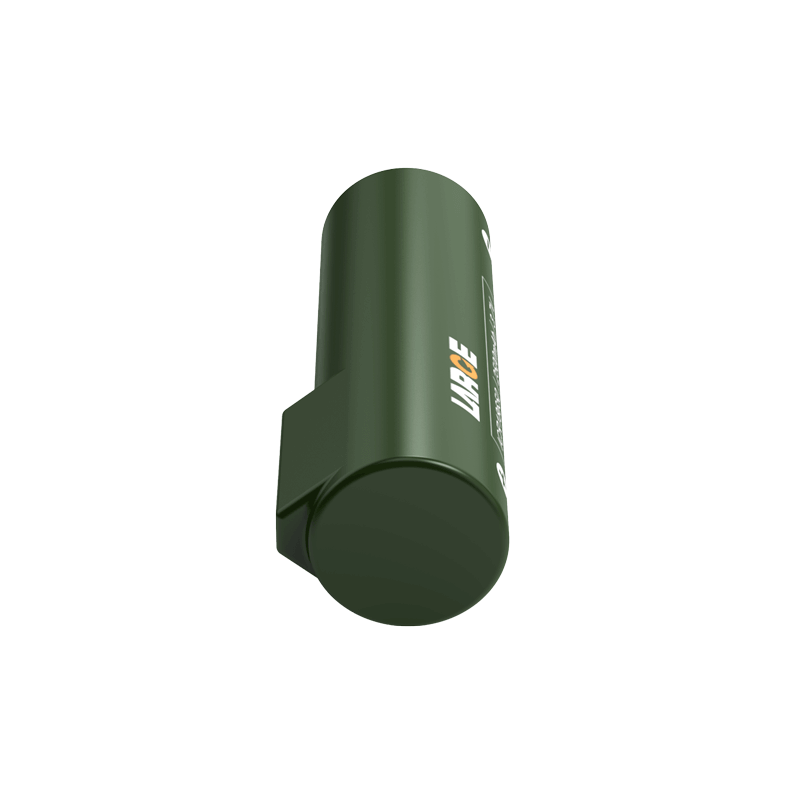

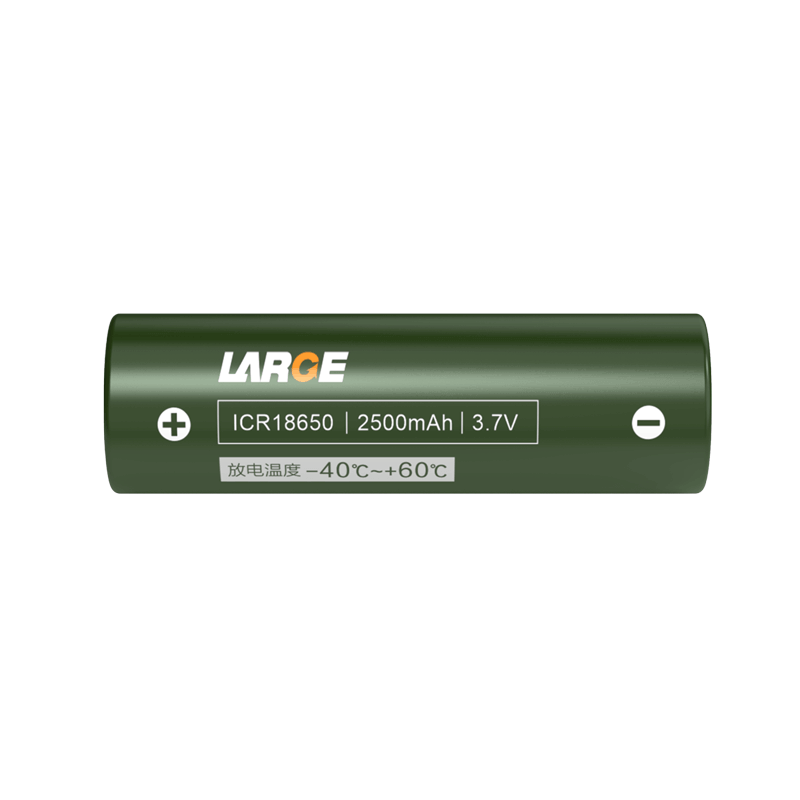

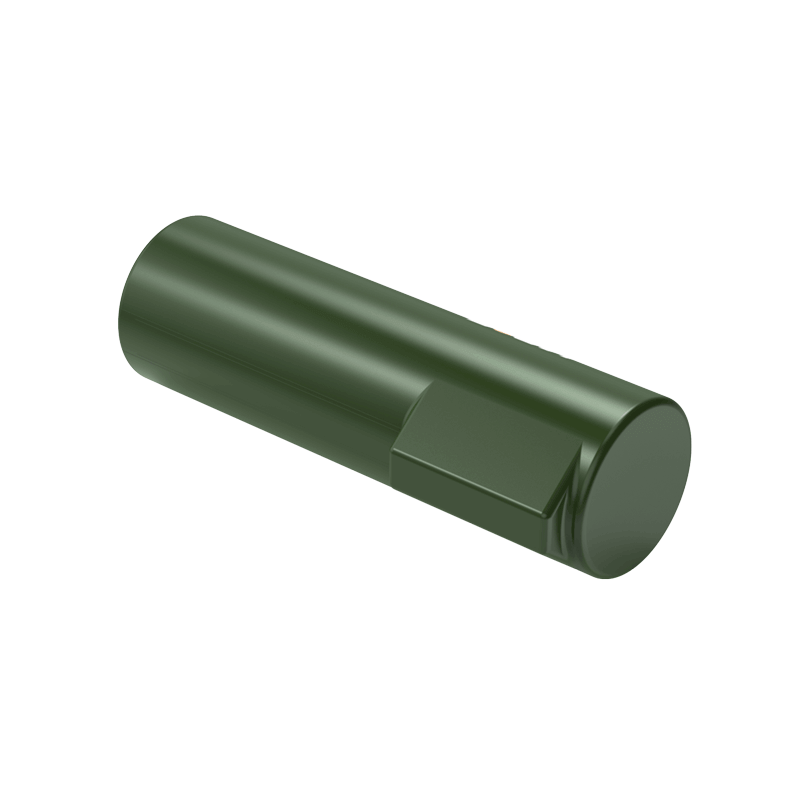

18650 3.7V 2500mAh -40℃ Low Temperature Battery for Positioning Module

Product Detail

Product number: 35AQ208-01

Cell model: 18650-2500MAh-3.7V

Battery specification: 18650-1S1P-2500MAH-3.7V

Product dimension: 66.5*φ22mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 2500mAh

Finished product internal resistance: ≤120mΩ

Charging voltage: 4.2V

Charging current: ≤1.25A

Discharge current: ≤1.25A

Discharge cut-off voltage: 2.8V

Battery weight: 50G

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -20 to 35 ° C

Battery package: PVC heat shrinkable film

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Portable positioning module battery, positioning equipment

*
*
*
