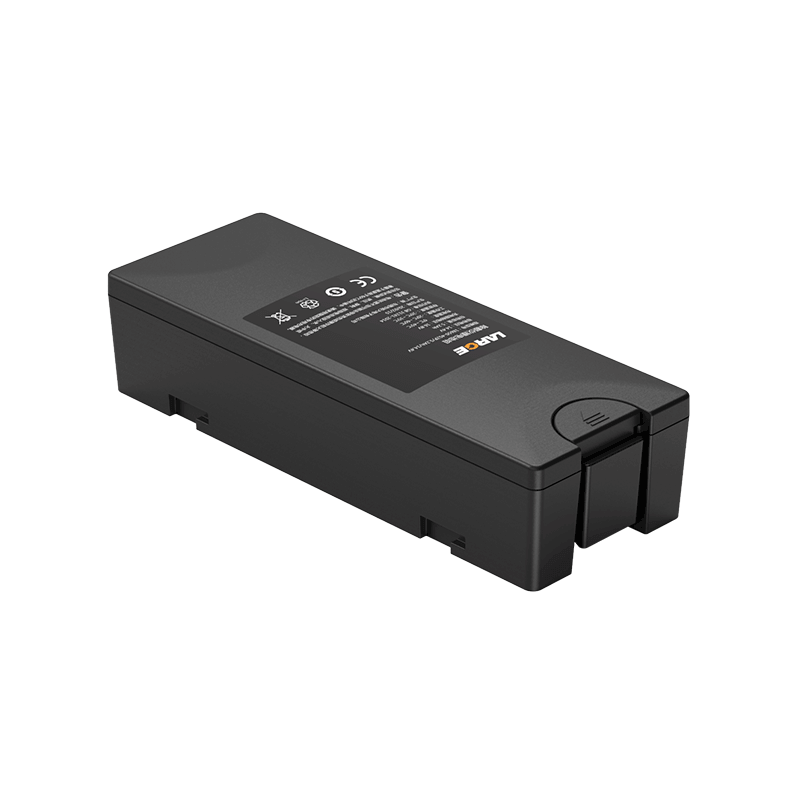

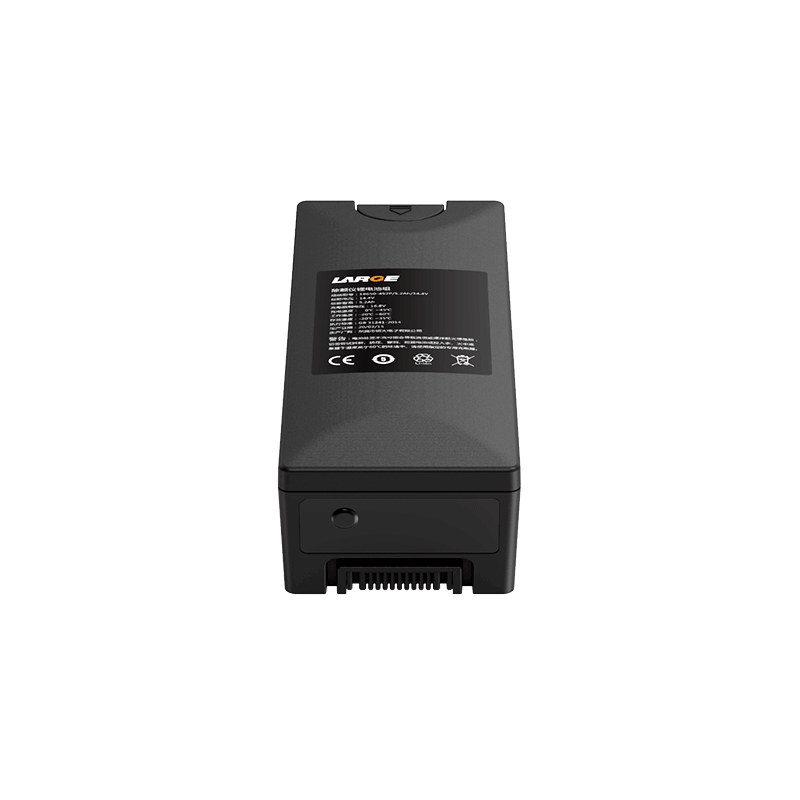

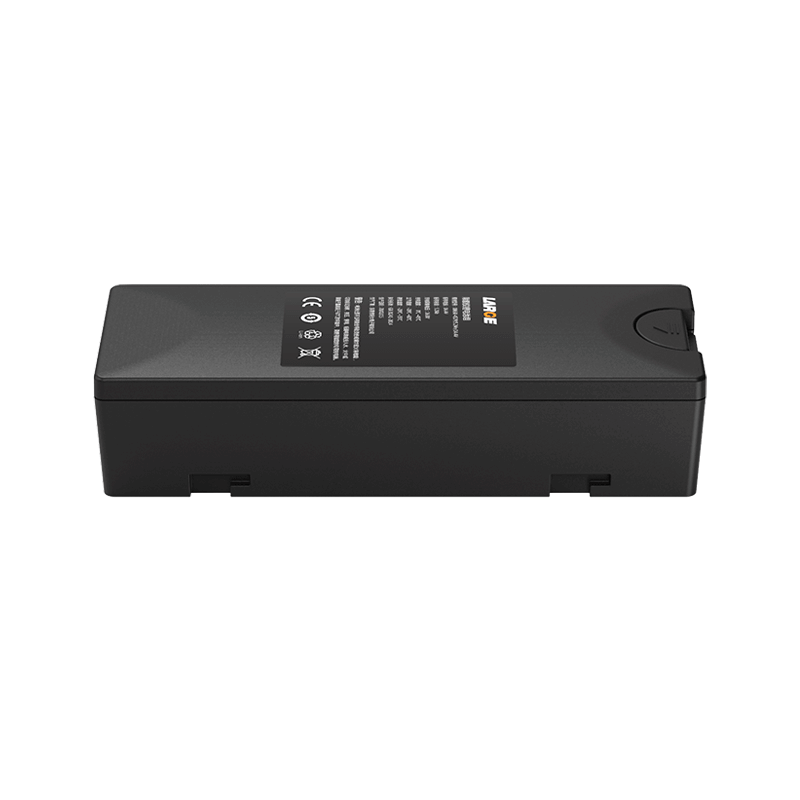

18650 14.4V 5.2Ah Lithium-ion Battery for Defibrillator

Product Detail

Project number: 08DQ0082-15

Cell model: 18650/2600mah /3.6V-LS

Specification: 18650-4S2P/5.2AH/14.4V

Nominal voltage: 14.4V

Nominal capacity: 5.2Ah

Charging voltage: 16.8V

Charging current: ≤ 2.6A

Discharge current: 7.8A

Instantaneous discharge current: 14.0A

Discharge cut-off voltage: 11.2V

Internal resistance: ≤250mΩ

Battery weight: 550 g

Product size: 46.81*66.4*181mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35°C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Defibrillator

*
*
*
