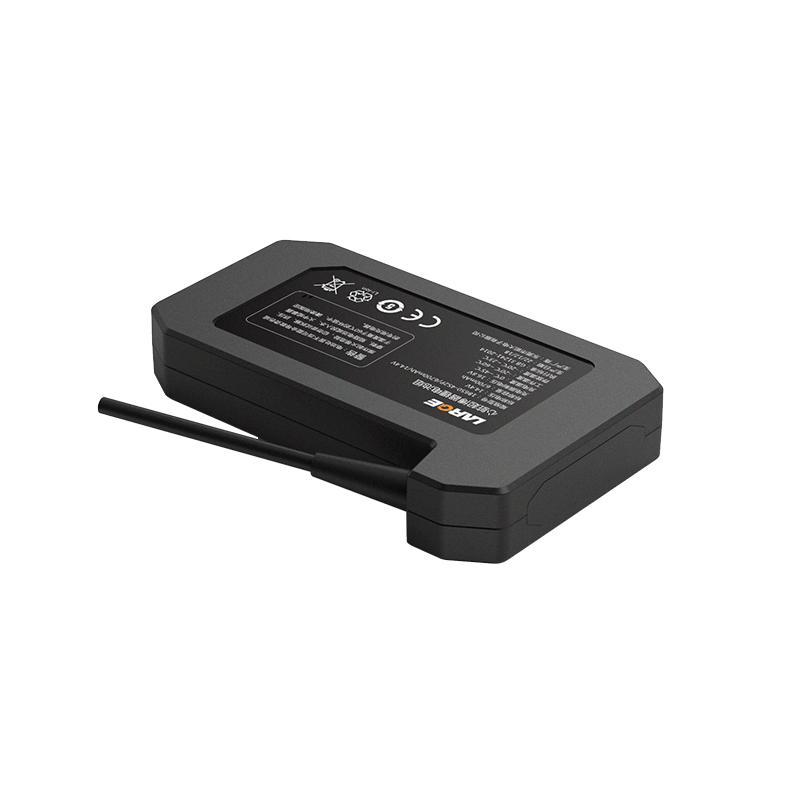

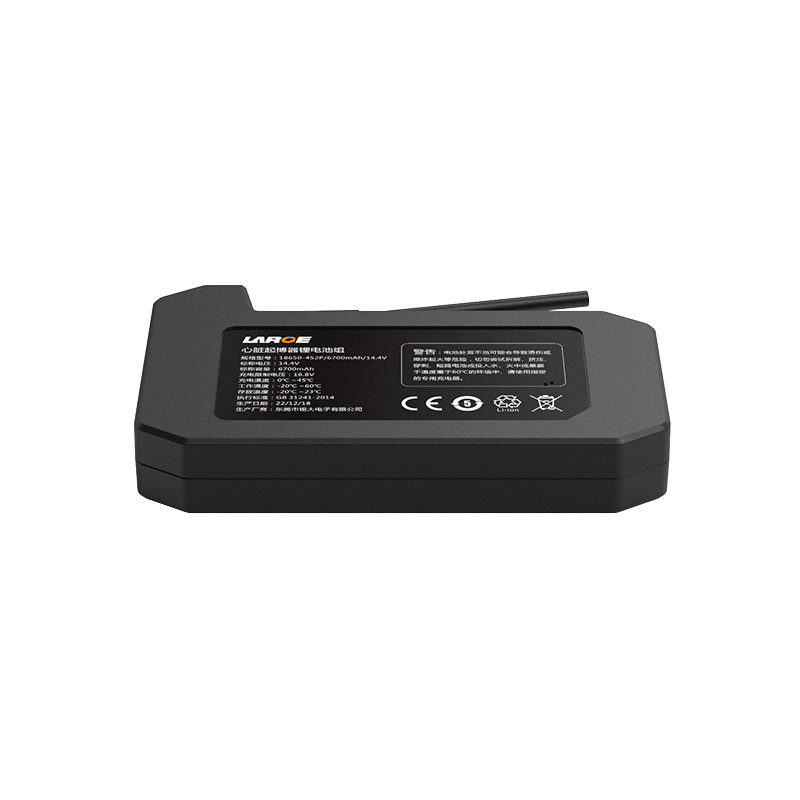

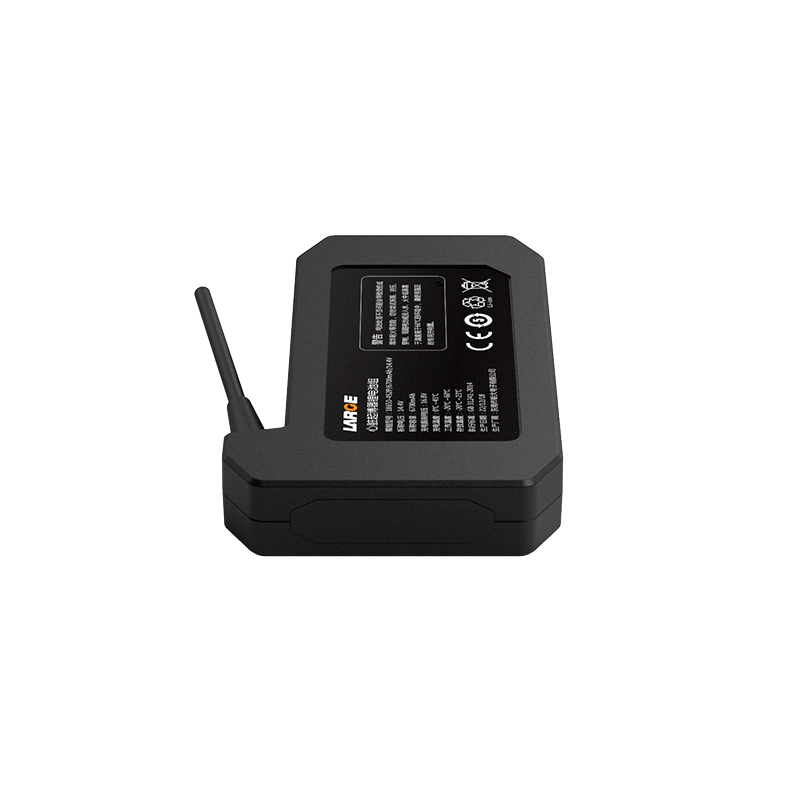

18650 14.4V 6700mAh Lithium-ion Battery Pack for Cardiac Pacemaker

Item number: 06DQ0046-01T

Battery model: INR18650/3350mAh/3.6V-SDI

Battery specification: 18650-4S2P/6700mAh/14.4V (smart + shell)

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Charging voltage: 16.8V

Charging current: ≤3.4A

Discharge current: 6.7A

Instantaneous discharge current: 8.0A

Discharge cut-off voltage: 10.8V

Finished internal resistance: ≤200mΩ

Battery weight: 550g

Product size: 27*84*163mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Intelligent lithium-ion protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Applications: cardiac pacemaker, medical equipment
