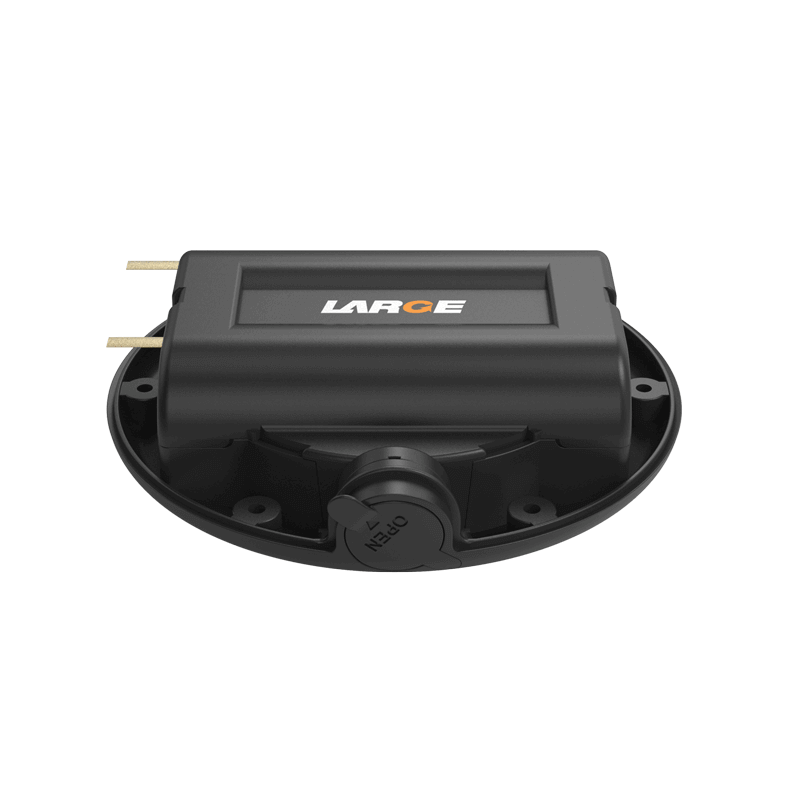

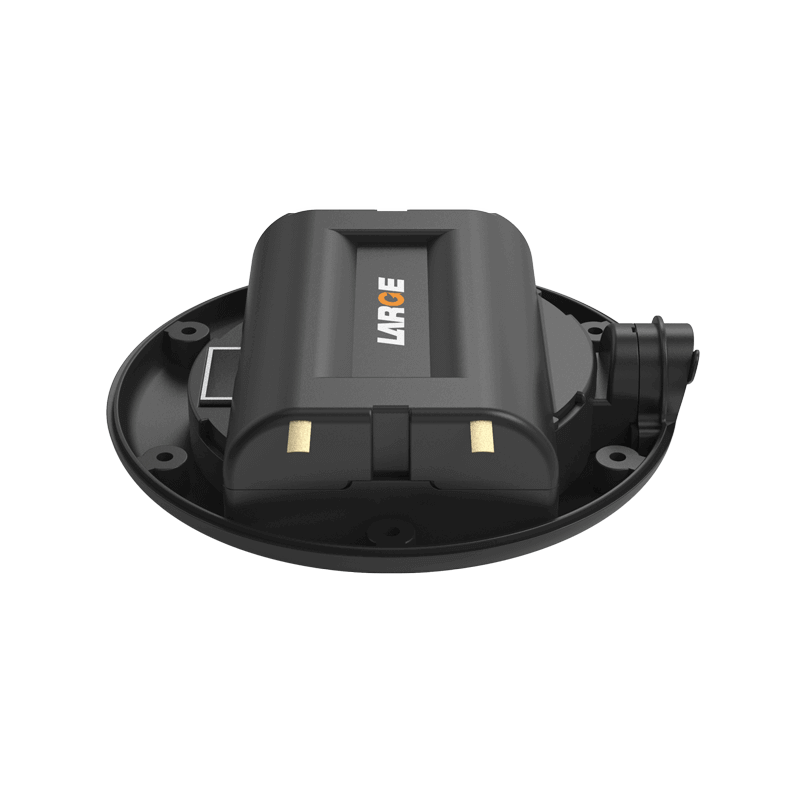

18650 3.6V 6500mAh Samsung Battery for Security Monitoring Equipment

Product number: 01DQ0040-15T

Cell model：18650/33500mAh/3.6V

Battery specification: 18650-1S2P/6500mAh/3.6V

Nominal voltage：3.6V

Nominal capacity：6500mAh

Charging voltage:5V to 4.2Vcharging

Charging current: ≤2.0A

Discharging current: 2.6A

Instant discharging current: 2.6A

End-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 130g

Product dimension: 25.54*89.36mm

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～25 ℃

Battery case:ABS+PC

Lithium ion battery protection: capacity calculation, short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, USB charging, etc.

Application field: security monitor
